ACRYLIC LED EDGE LIT PROJECTS
HOME

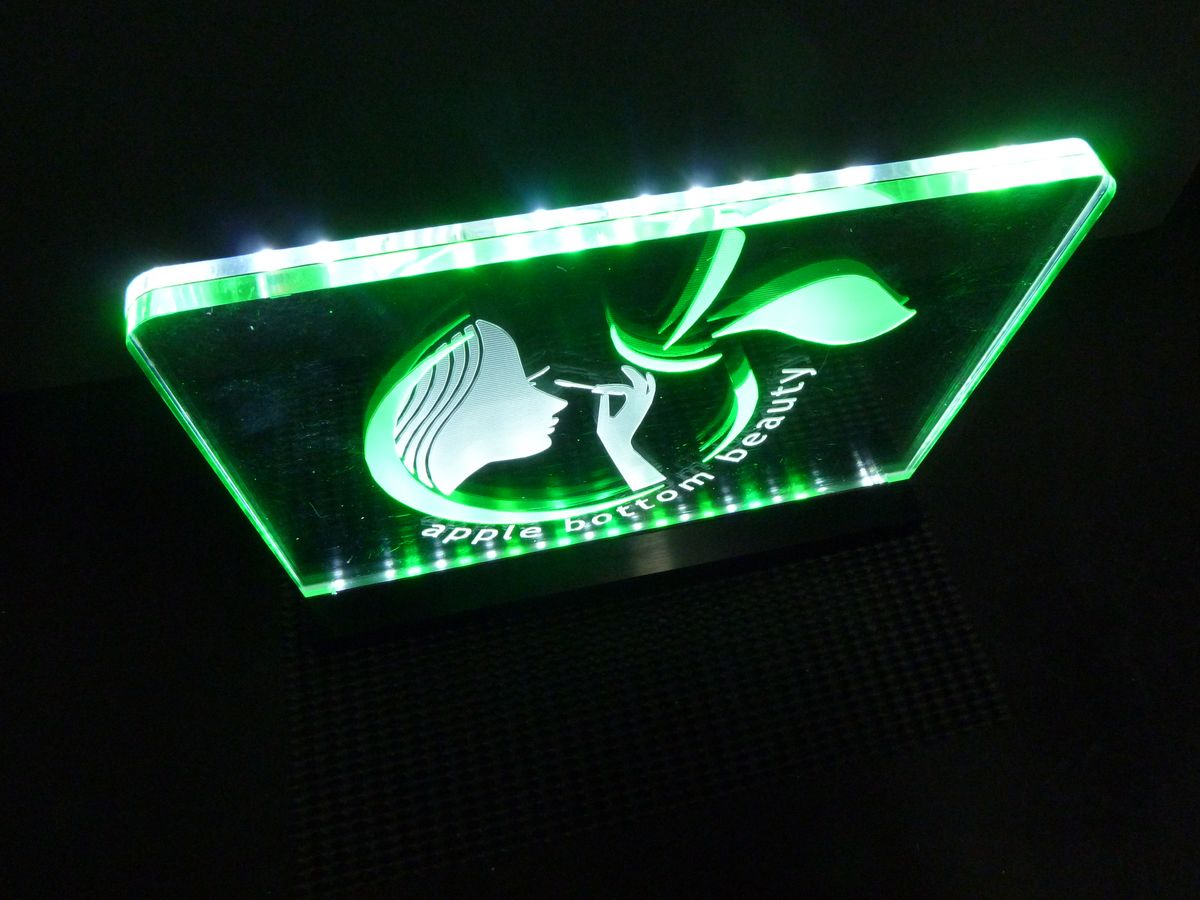

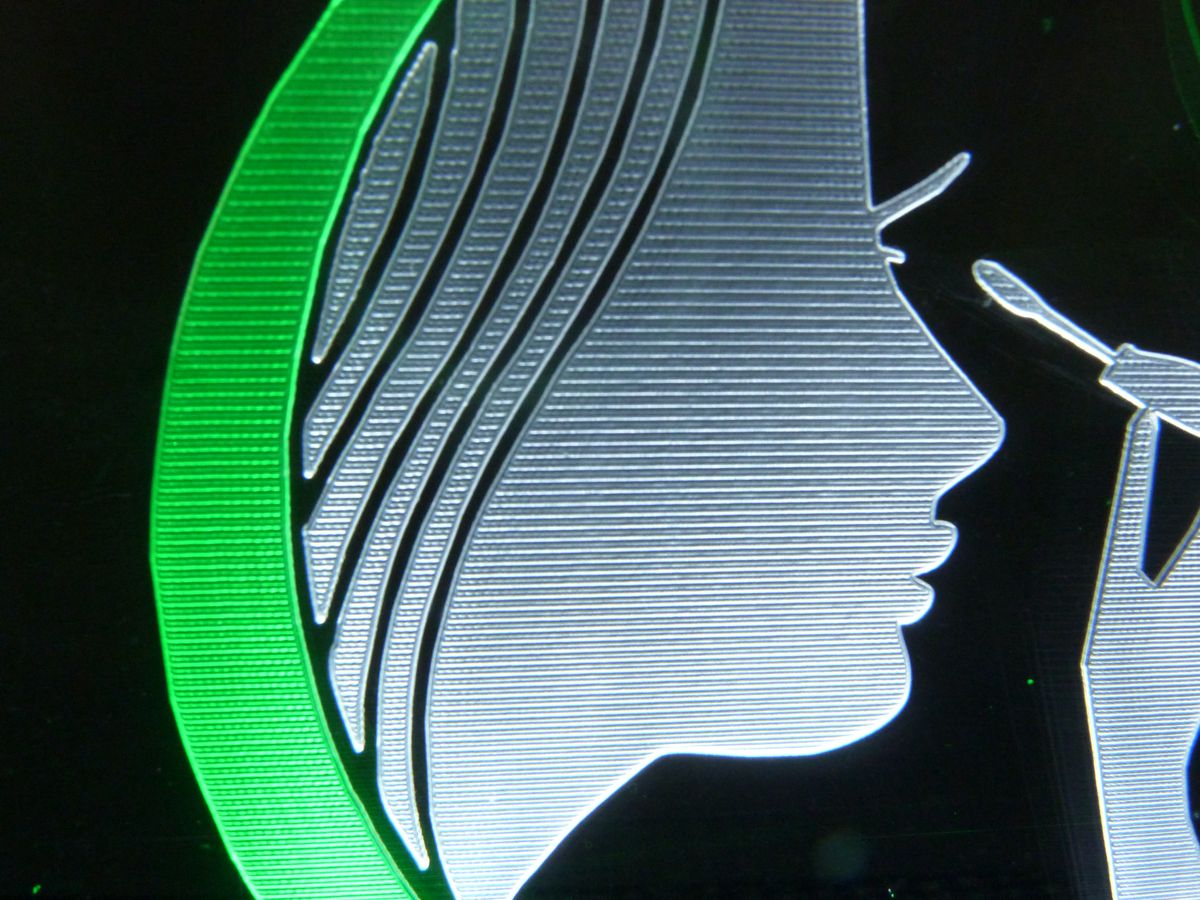

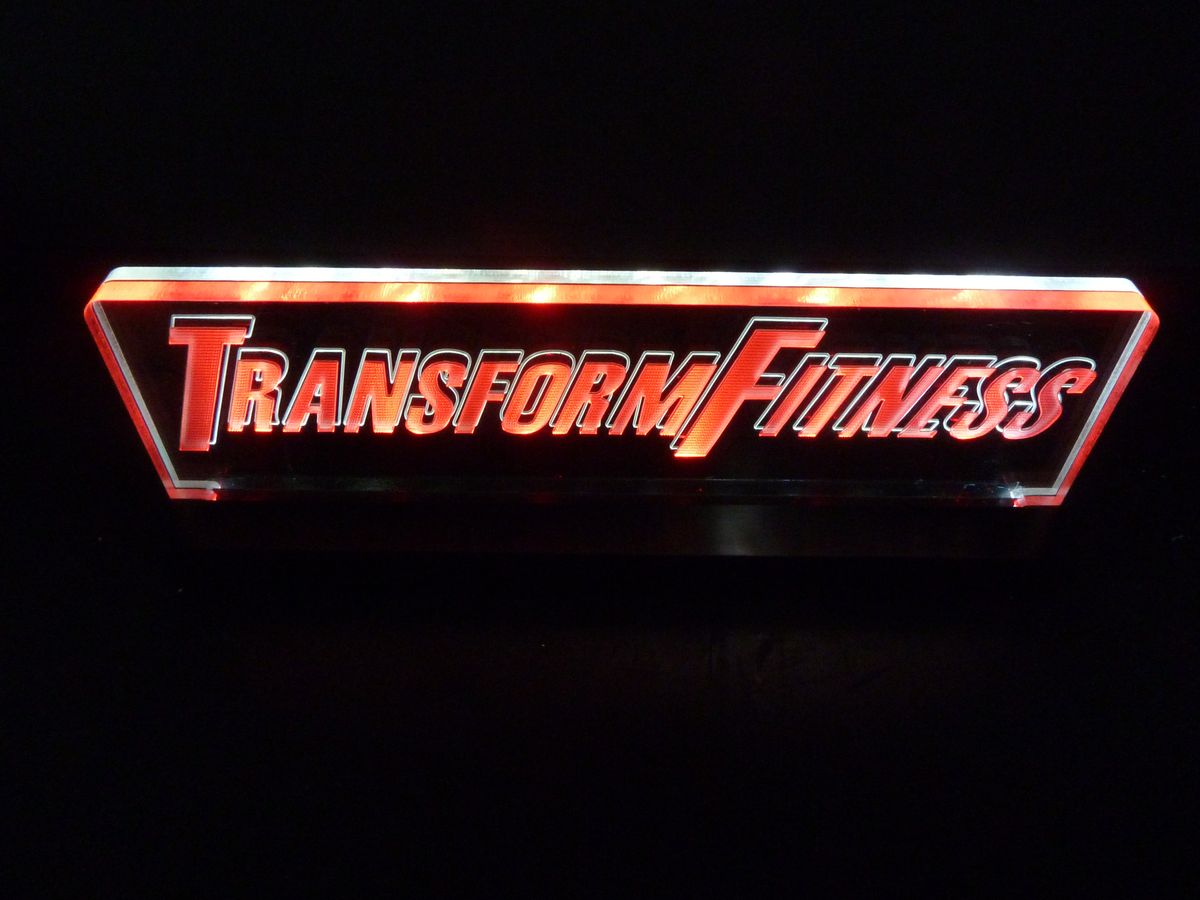

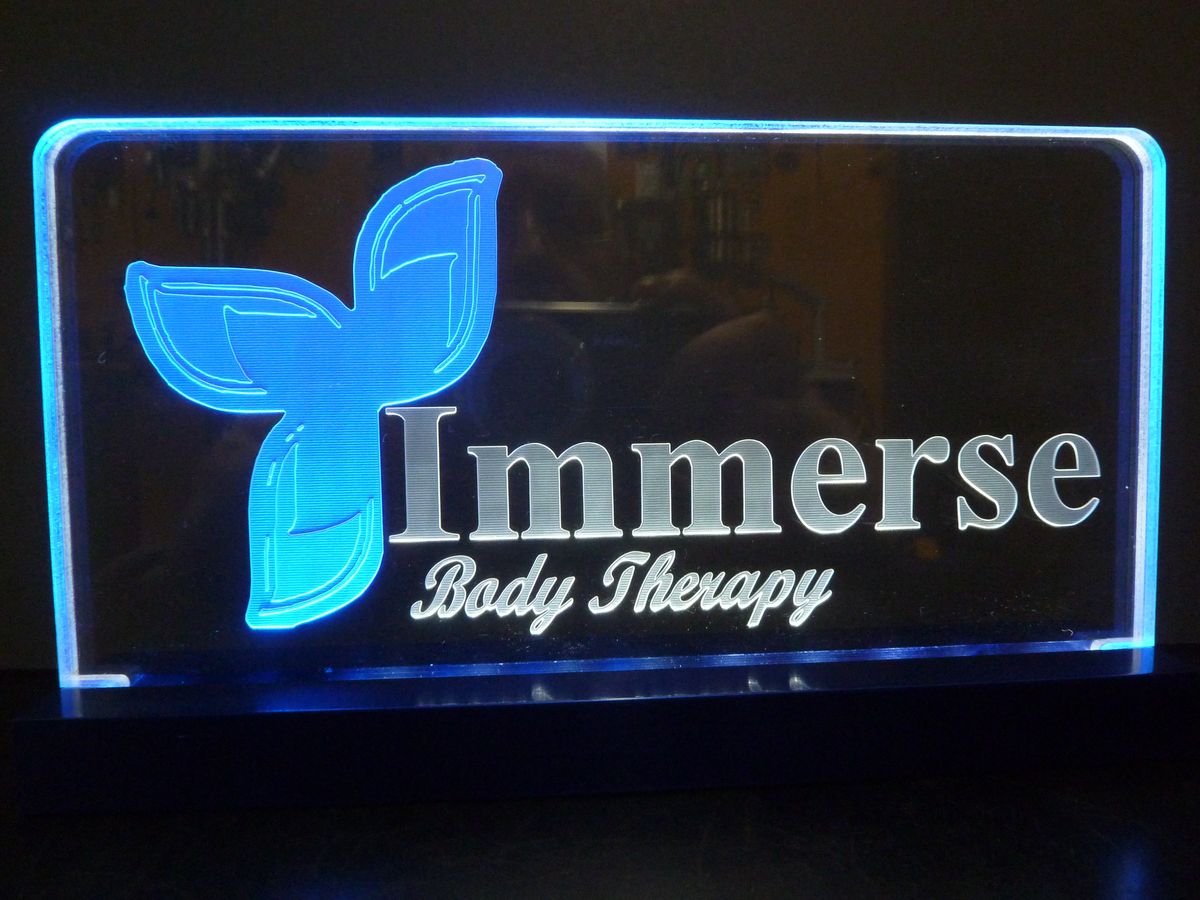

First ever made the eleVate Logo Duel Colour Logos Immerse 2 Colour Acrylic Logo_02 Making Apple-Bottom-Beauty. The  first 2 Colour Acrylic Logo 2 Colour Acrylic Logo TransformFitness 2 Colour Acrylic Logo_02

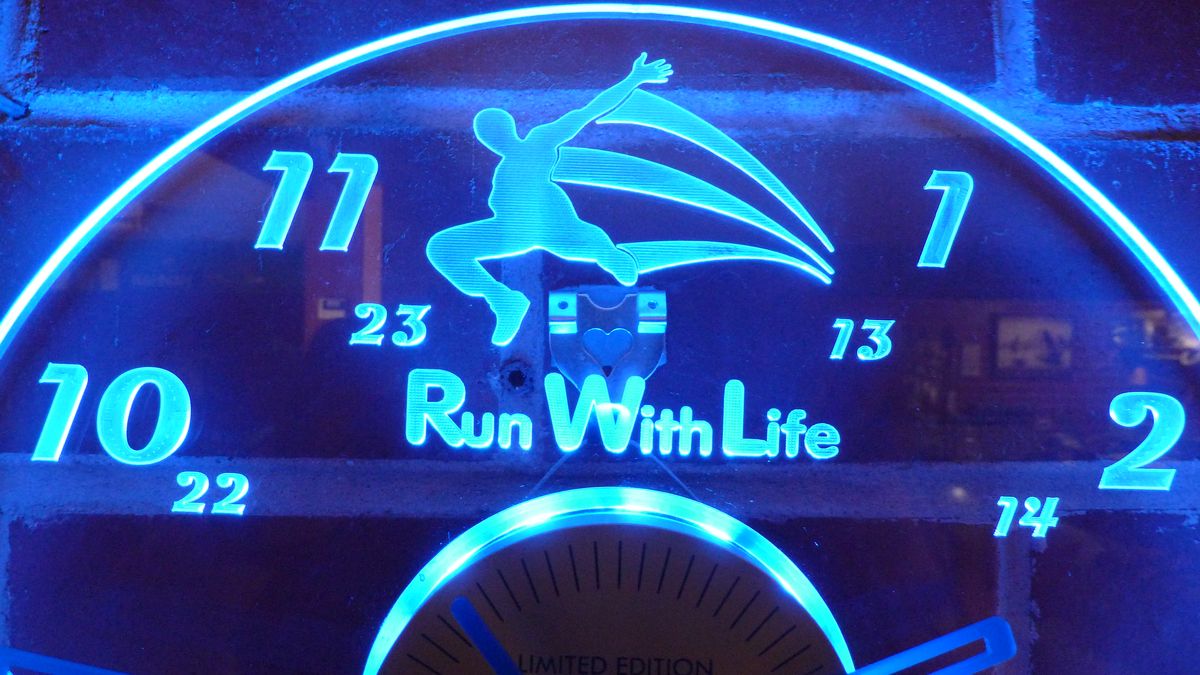

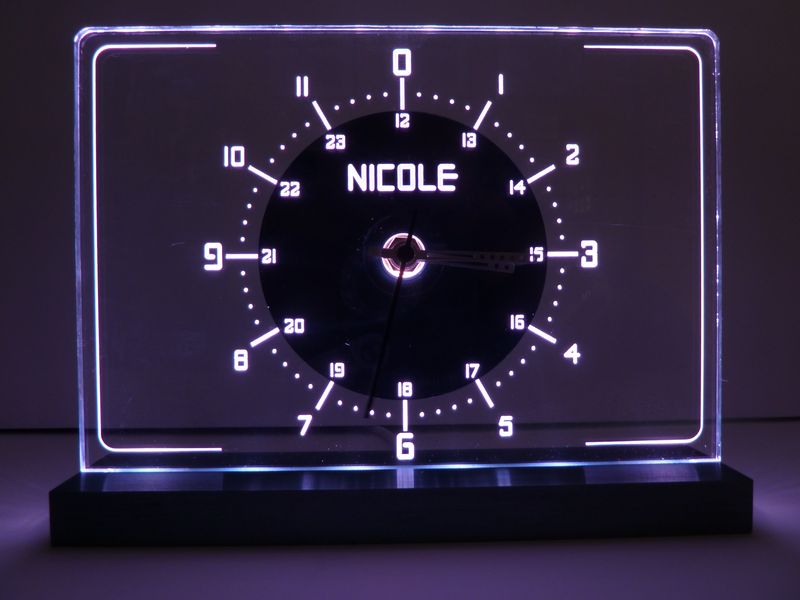

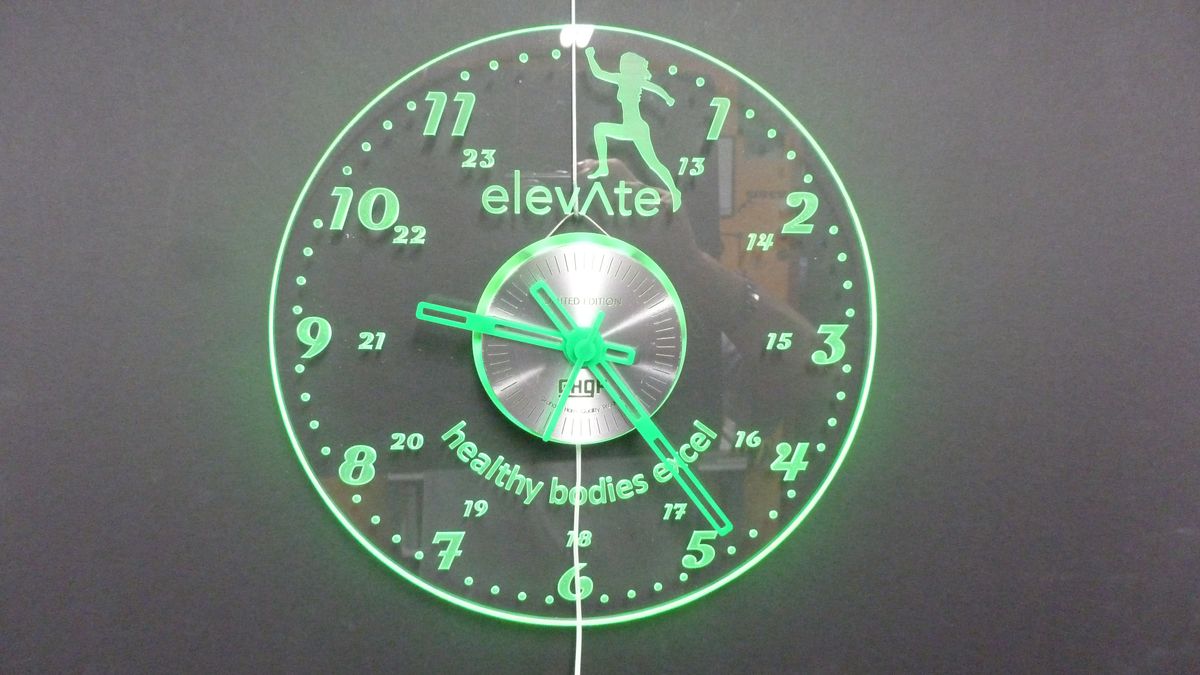

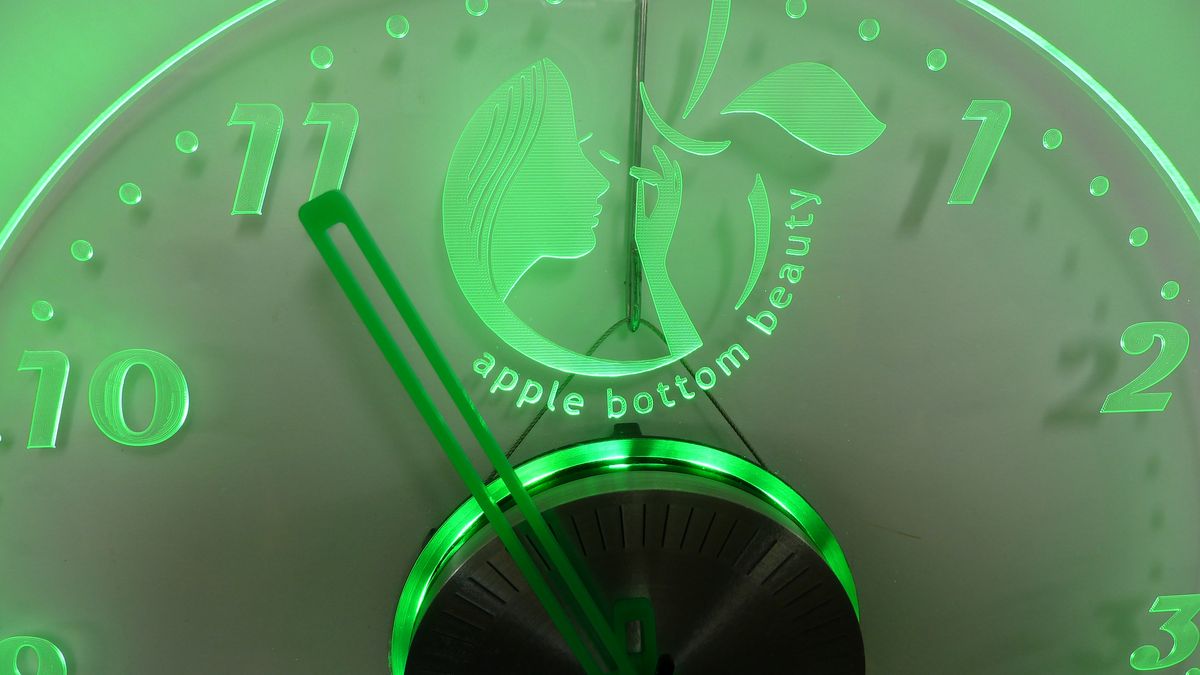

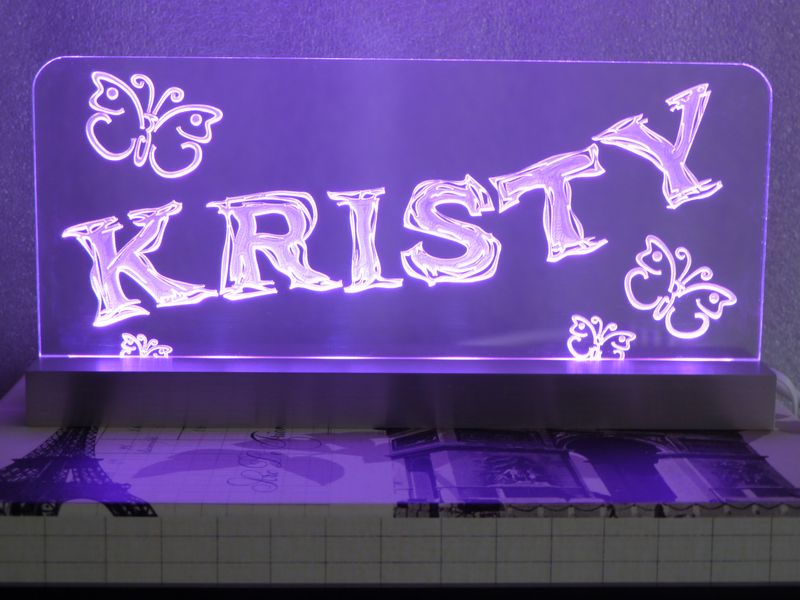

elevAte Wall Clock RGB Multi Colour Wall Clock Apple Bottom Beauty Wall Clock Run With Life Wall Clock. The last I will make. KRISTY 18 BD 2011 Nichole's Clock. RGB LED's. A one off.
PHOTO GALLERY
PHOTO INDEX
These are some of the acrylic engraved projects where I have use LED edge lighting. Single, dual colour and RGB LED's with a controller that can produce some amazing dynamic lighting effects.
Updated April 2017

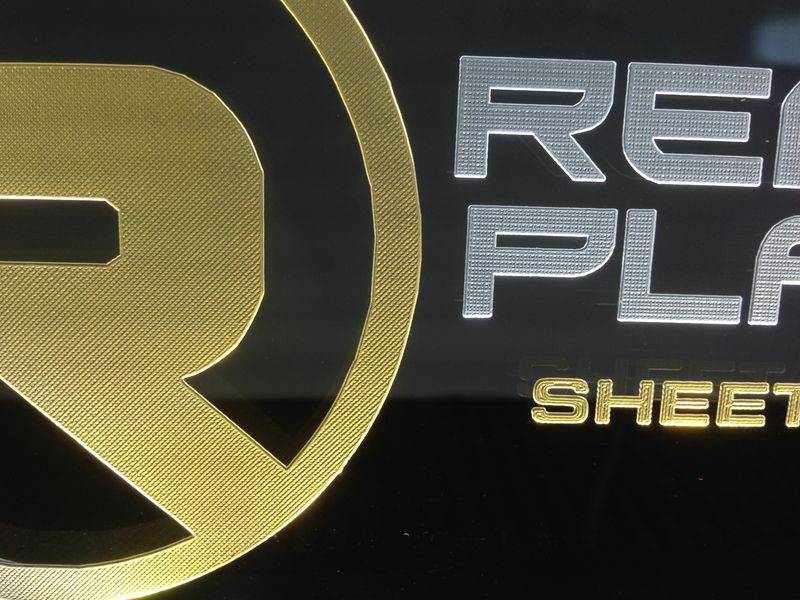

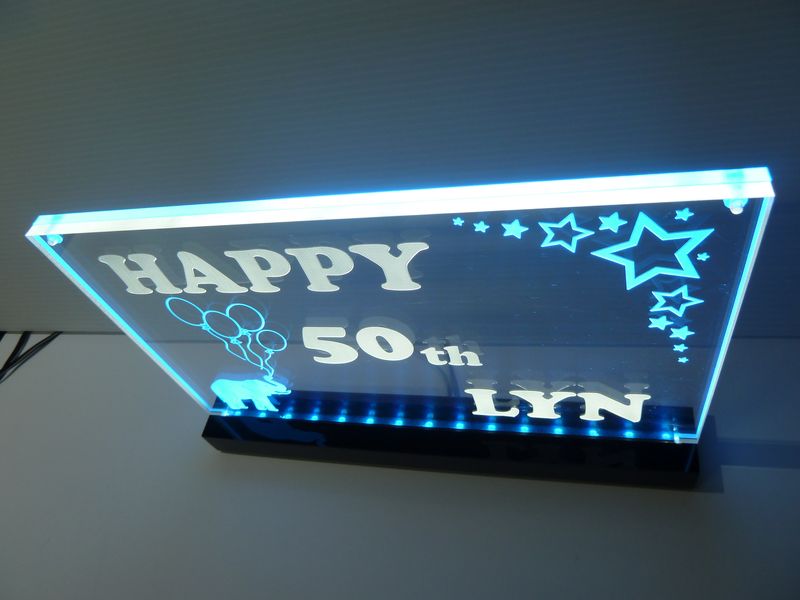

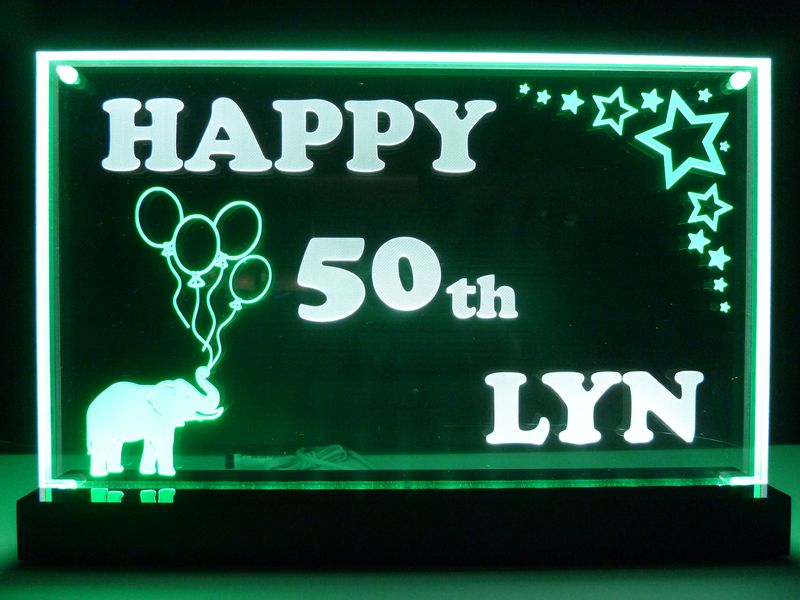

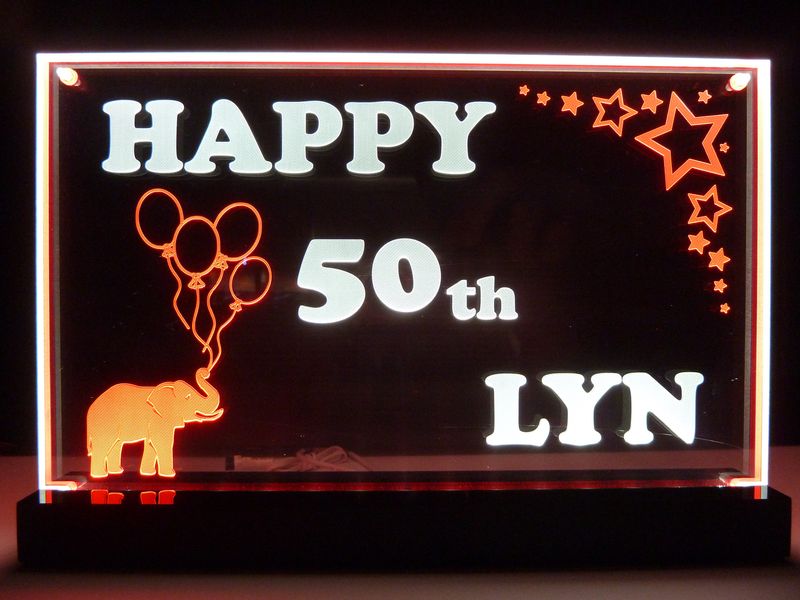

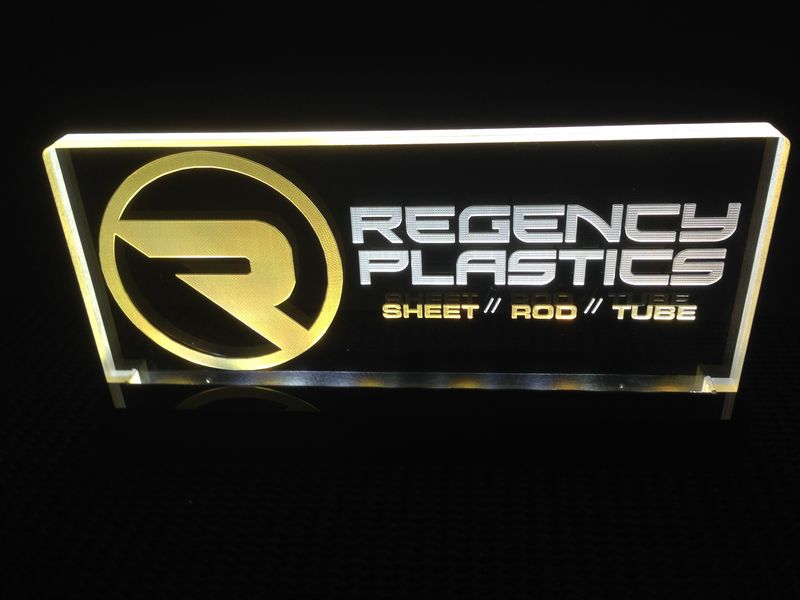

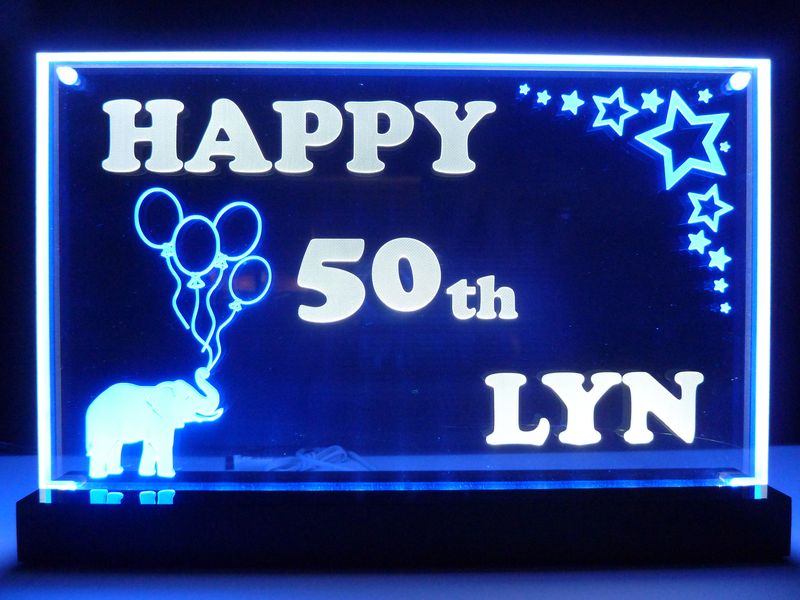

Company I purchase Acrylic from 200mm Wide 50th Birthday, Back layer used RGB LED's RGB Multi Controller was used Various colour patterns were available. Width was 255mm

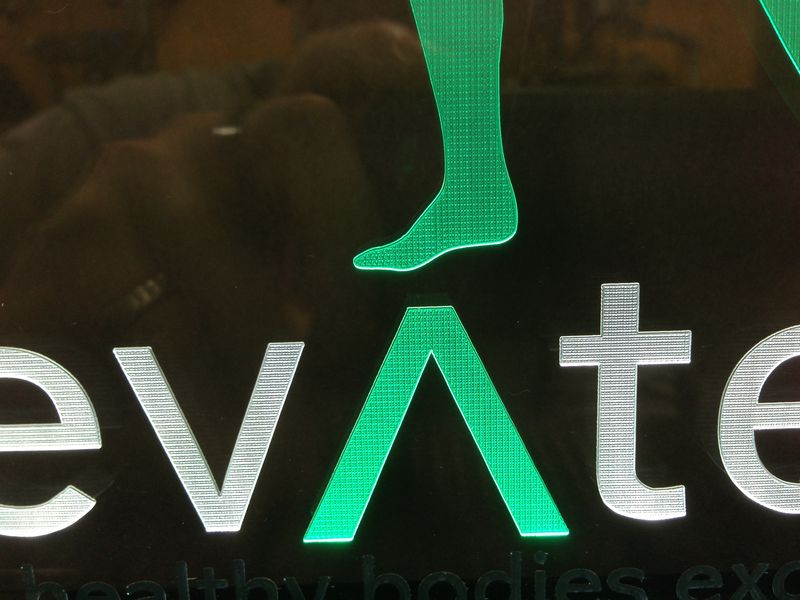

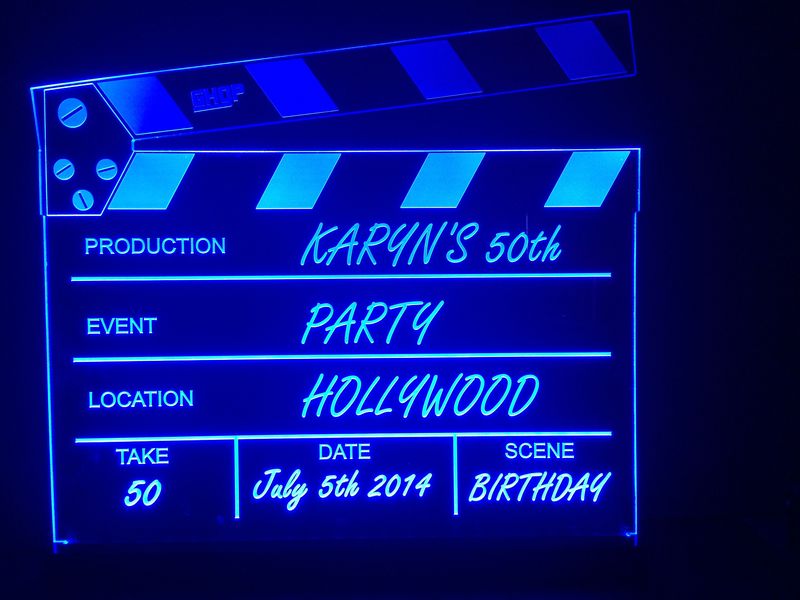

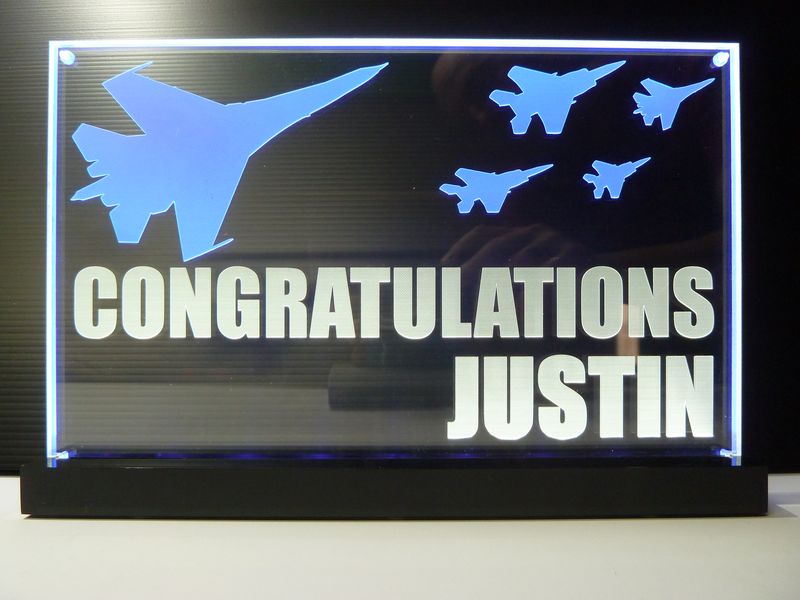

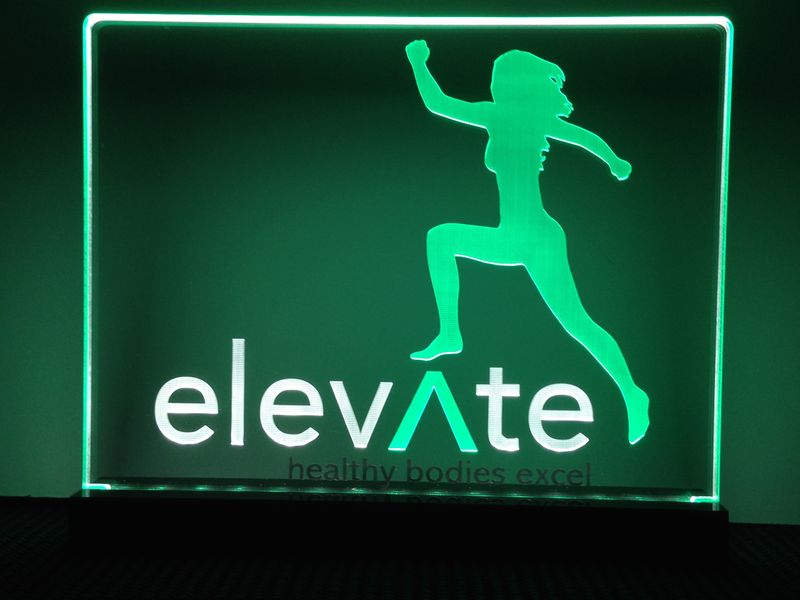

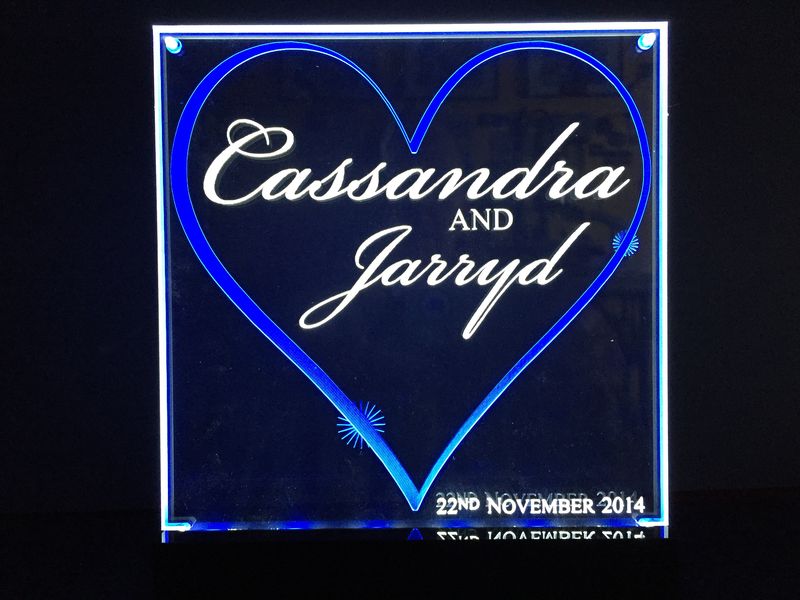

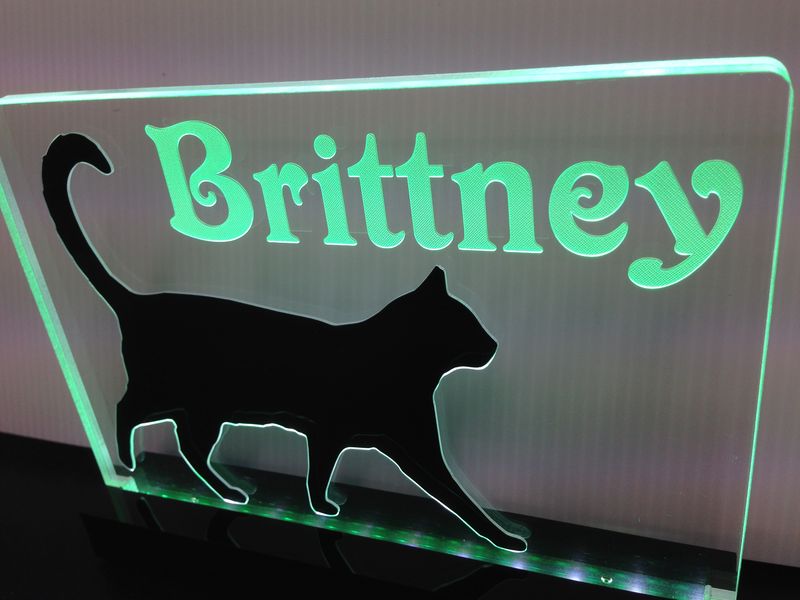

Centre Peice for Wedding Table 200mm Hollywood theme Birthday decoration, used RGB LED stip. (400mm wide) For Brittney who loves cats. The cat was done using 2mm Black Acrylic inlay. Fixed White - Aircraft RGB First make of Versoin 2 elevAte Logo. First 255mm wide Standard illumination for "elev_te" leters.

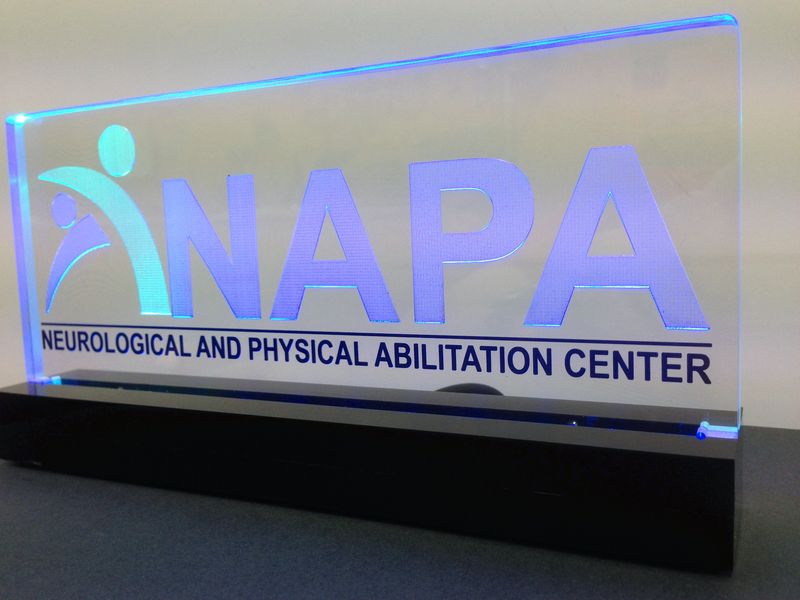

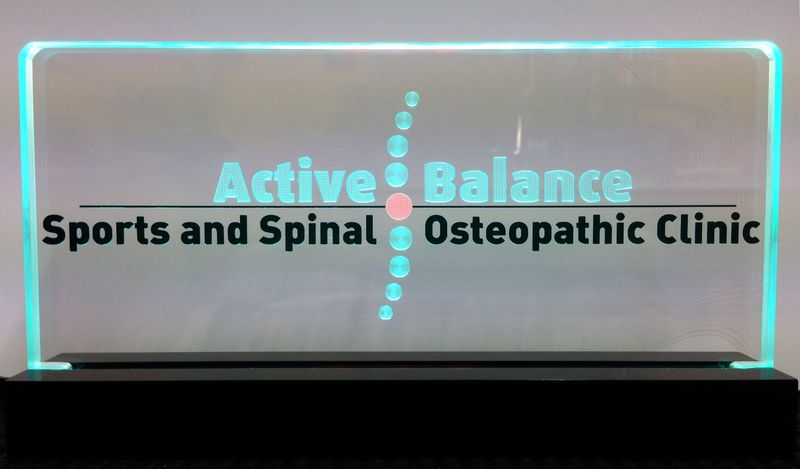

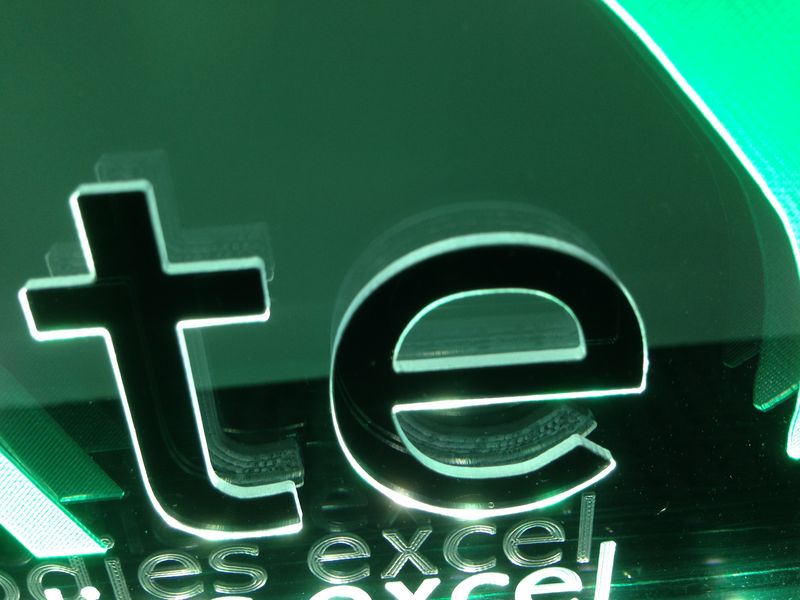

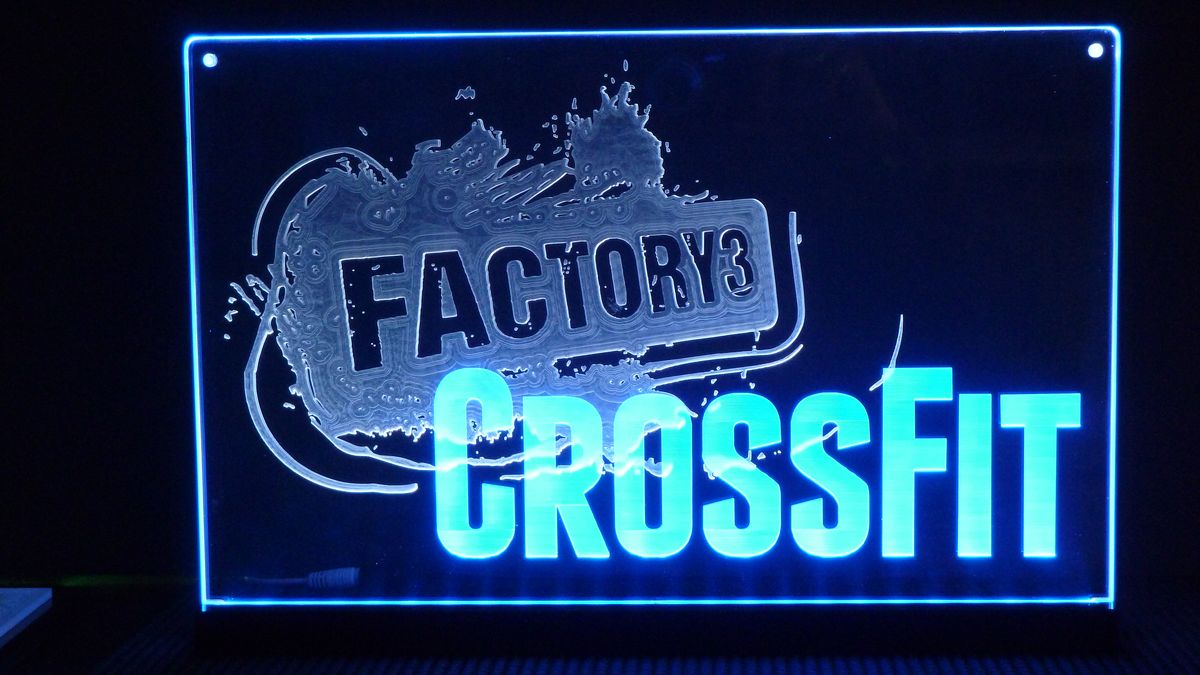

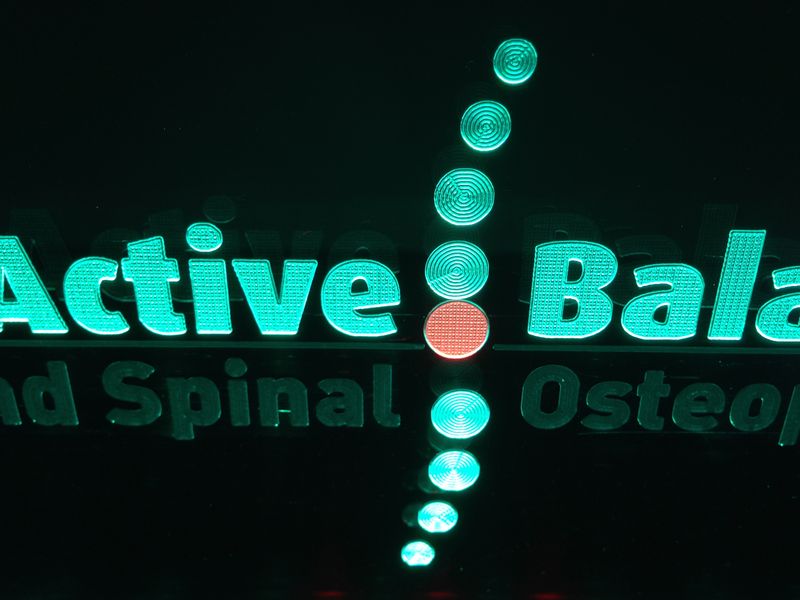

Second make used Black Acrylic Inlayes for "elev_te". 2mm thick Acrylic inlayed lettering. Active Balance Logo 2 Colour 200mm Black wording by paint filling lettering on reverse side of front peice. NAPA Centre USA Logo 200mm CrossFit Logo 400mm wide

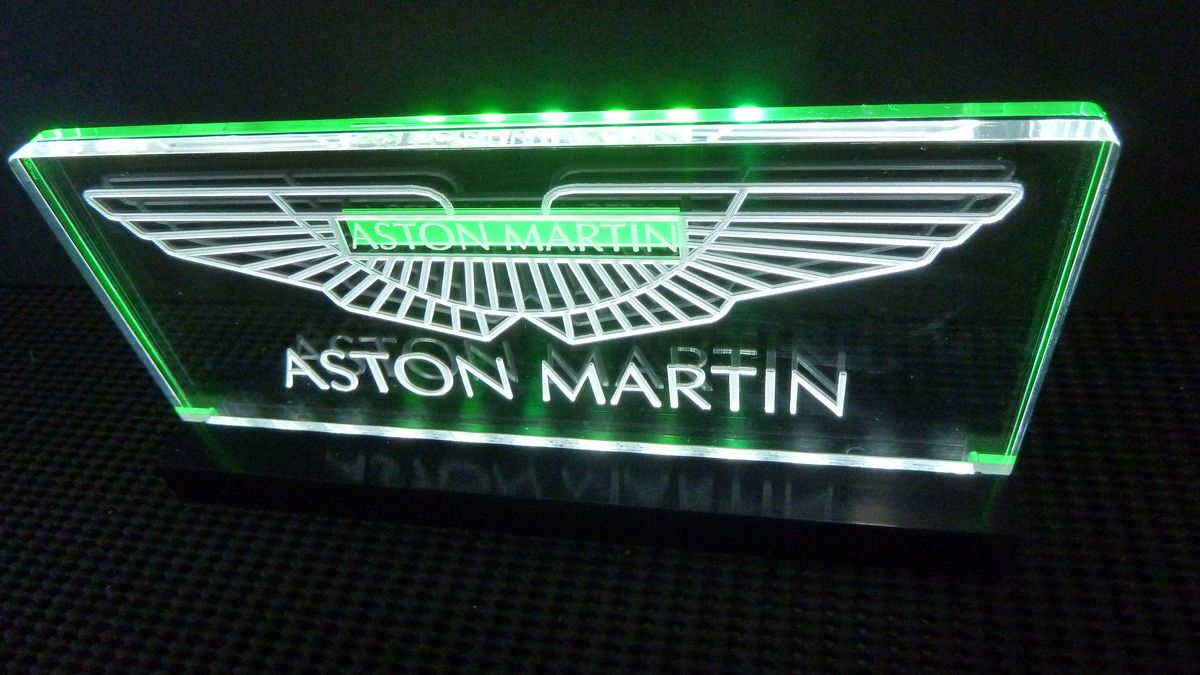

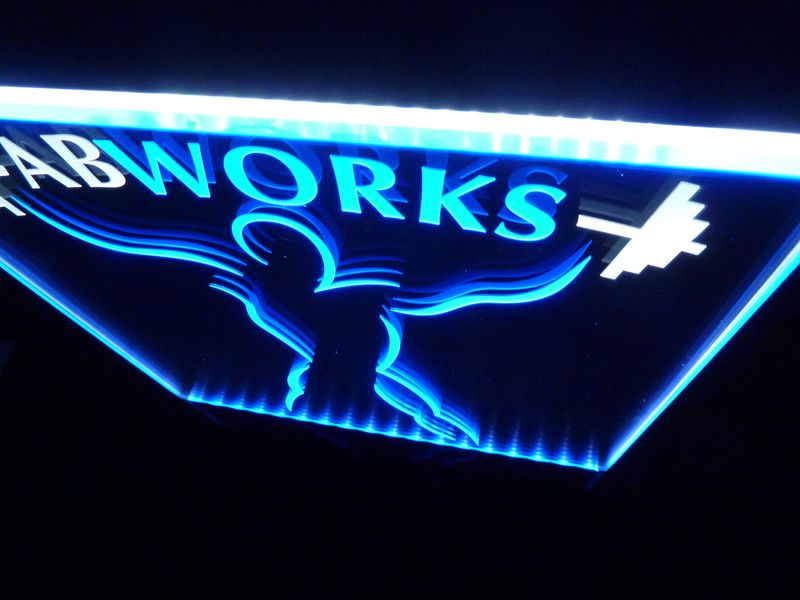

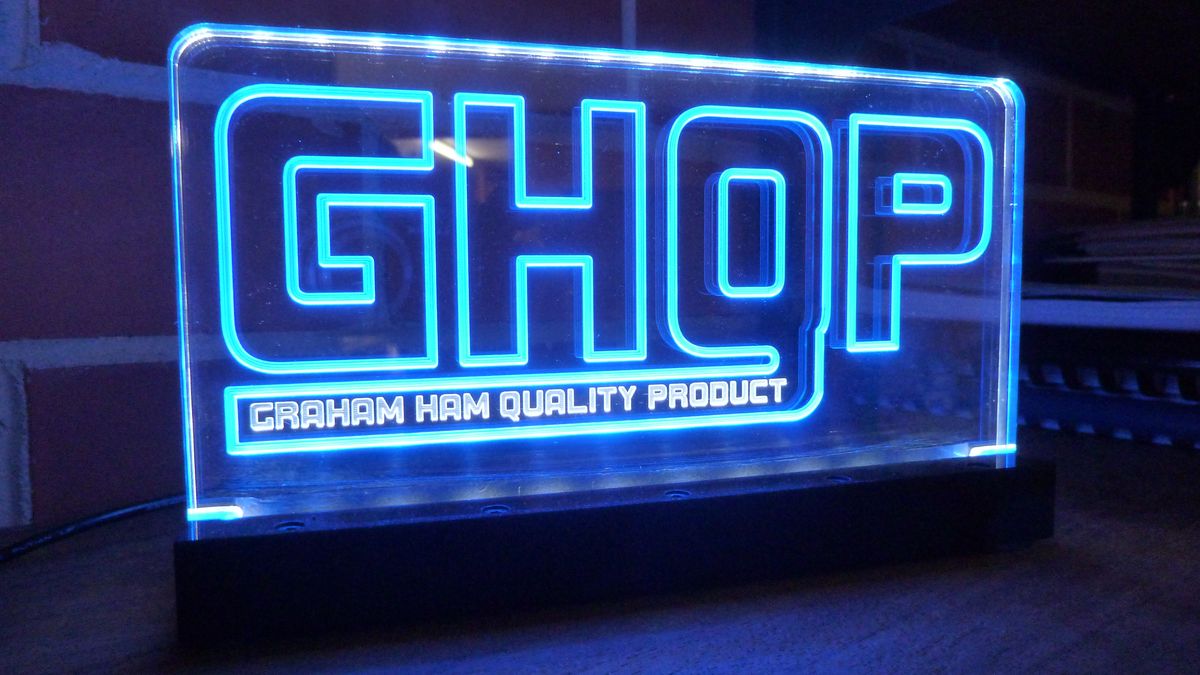

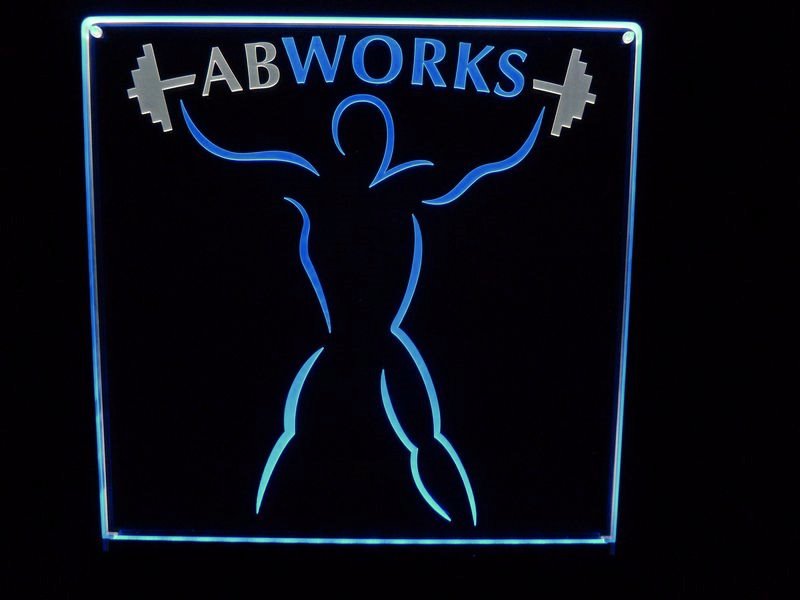

GHQP Logo 200mm Wide ABWORKS Logo 2 Colour 400mm ABWORKS Logo 2 Colour 400mm Aston Martin Logo For my own personal use
Quartz Clock
Some of the More Recent

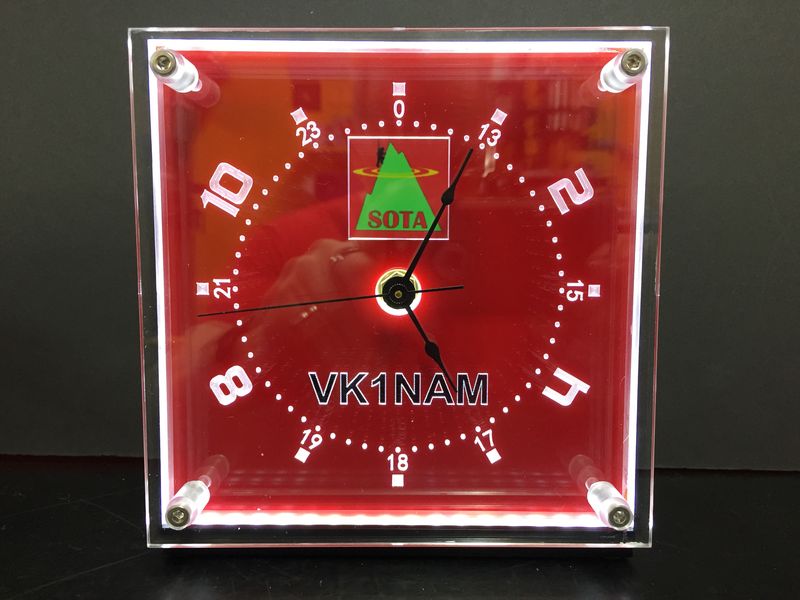

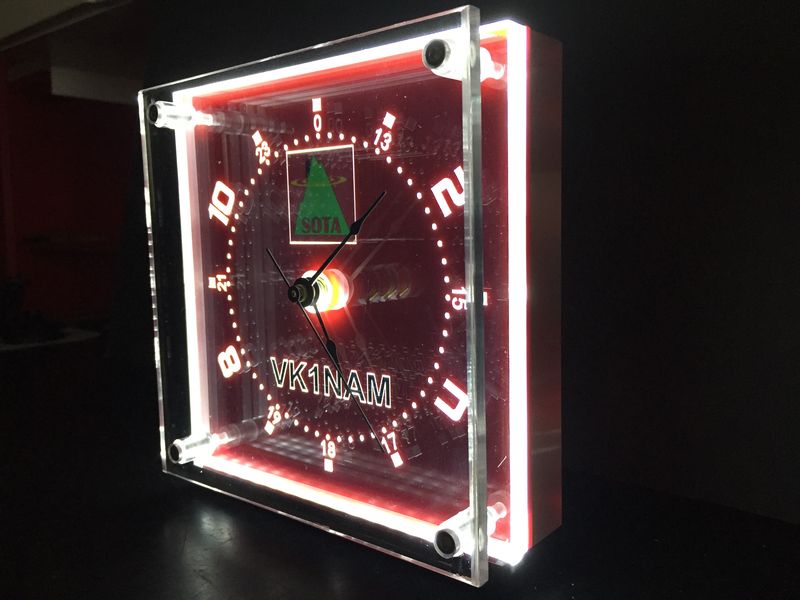

Christmas 2014 Gift Comprised of 4 layers, Spacers and Base for the LED Strip. The Callsign was done using 2mm Black Acrilic Inlay.

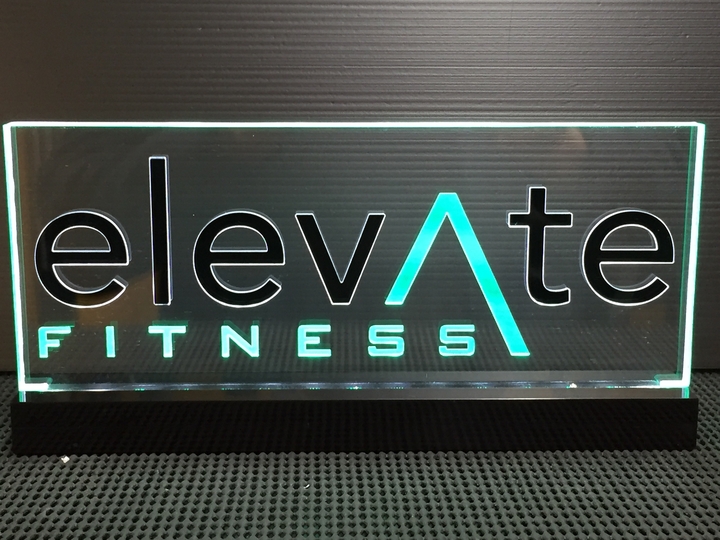

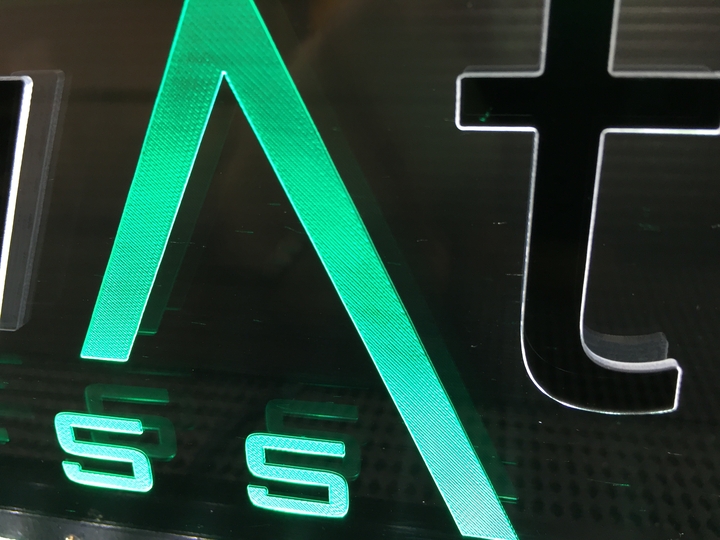

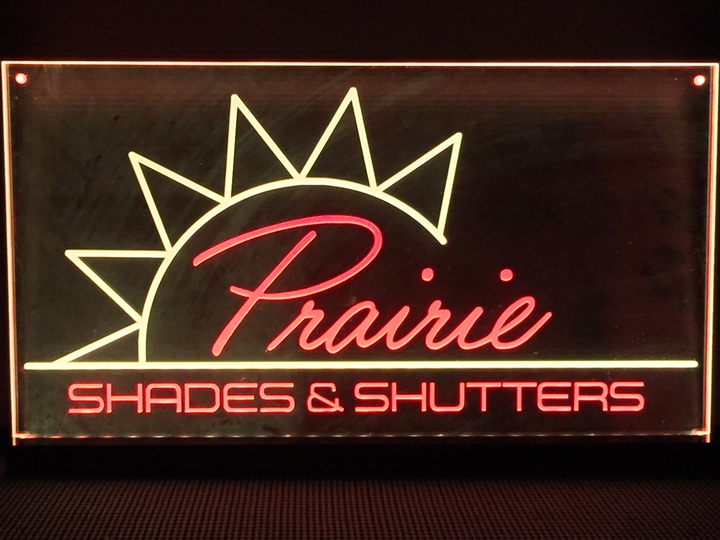

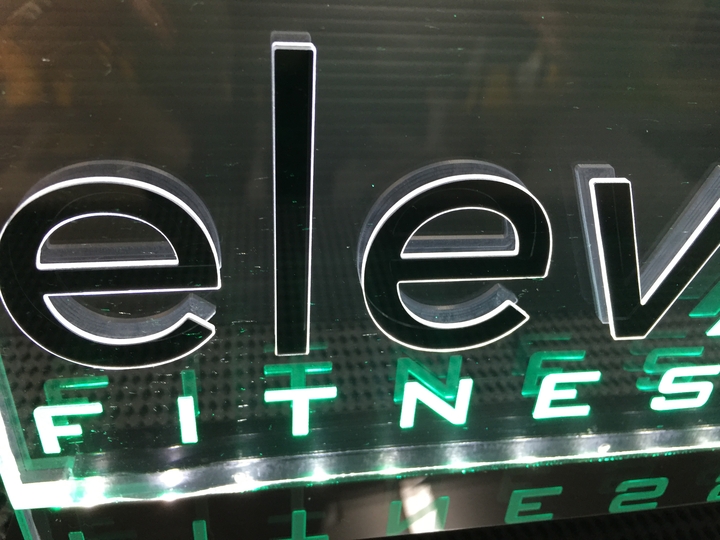

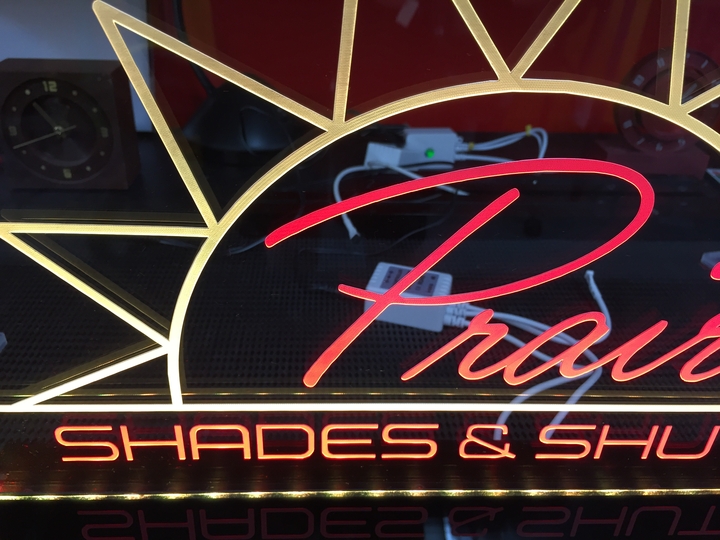

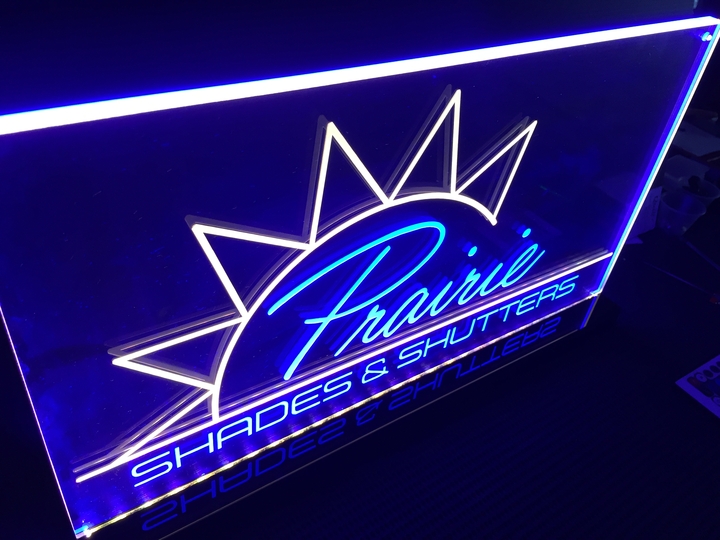

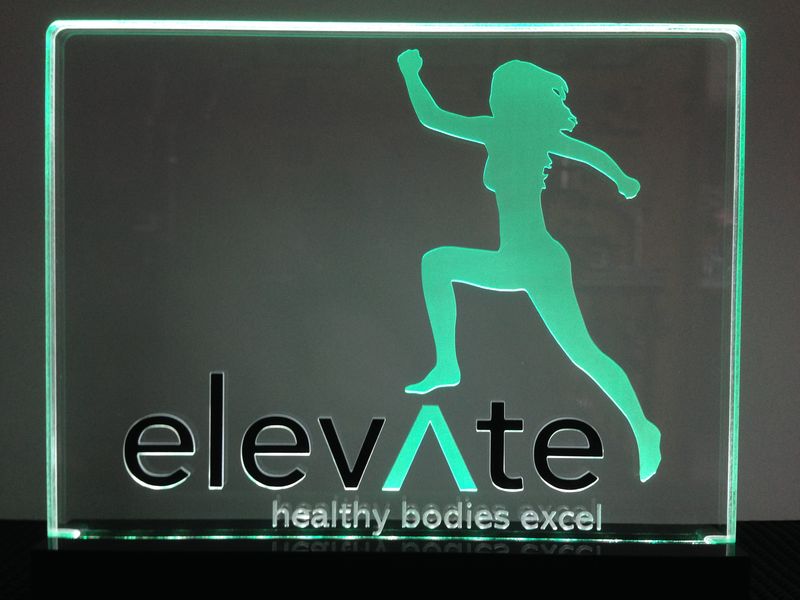

Prairie Shades & Shutters USA Yellow Sun Fixed Colour, Text RGB Variable Colour The First 450mm Wide Base The New elevate Fitness Logo Incorporated 2mm Black Acrylic Inserts RGB LED's Calibrated to a specific Green

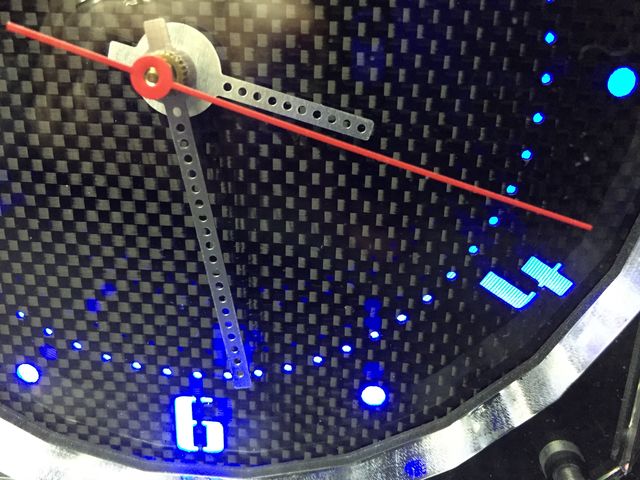

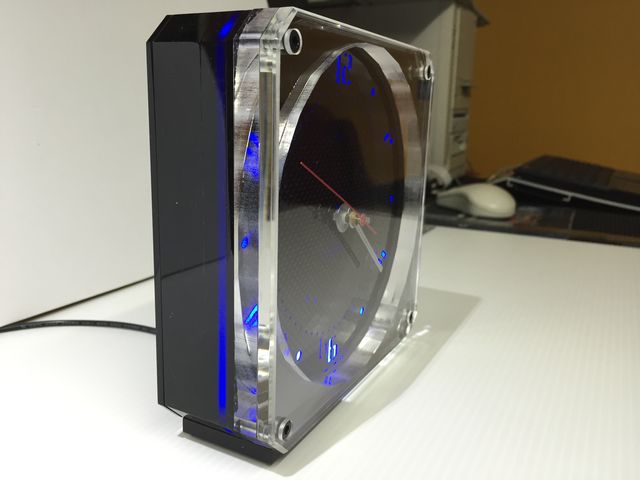

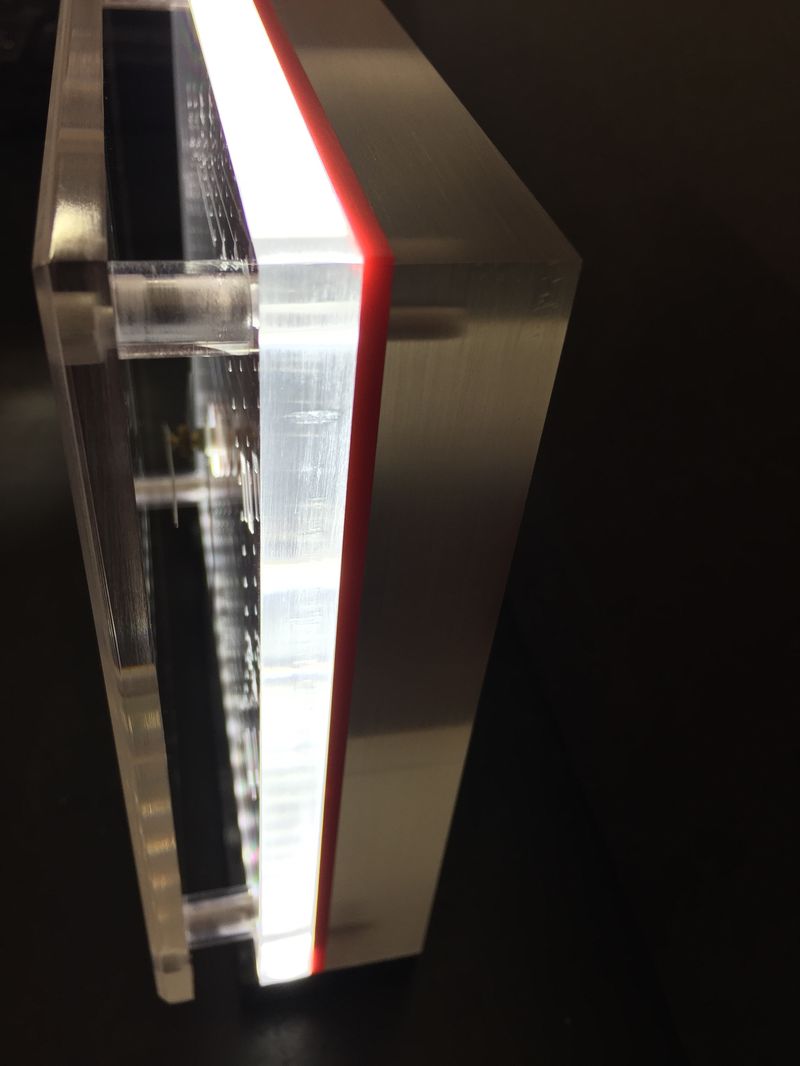

Carbon Fibre Face Clock There were10 layers in total + the Base The Carbon Fibre face was from a 1.0mm thick sheet  This one has a translucent Grey Back sheet RGB LED's set to produce Gold Colour Reflection produces a 3D effect

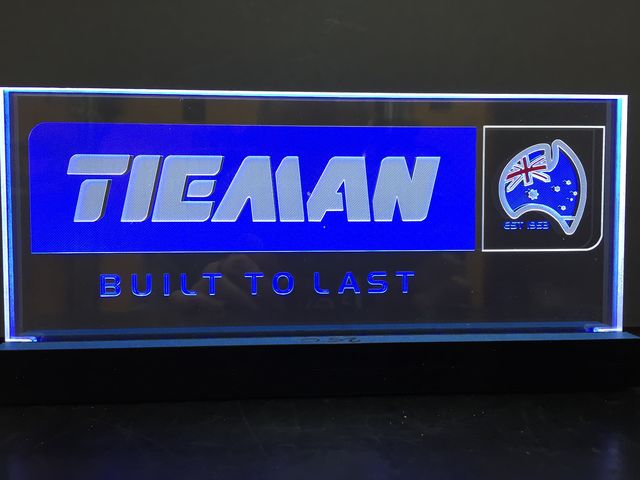

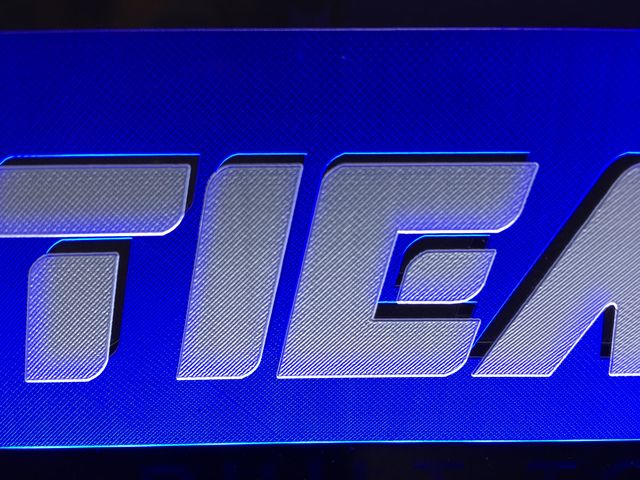

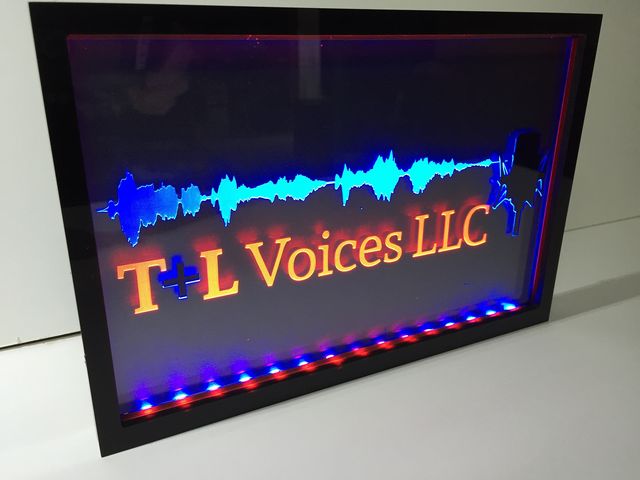

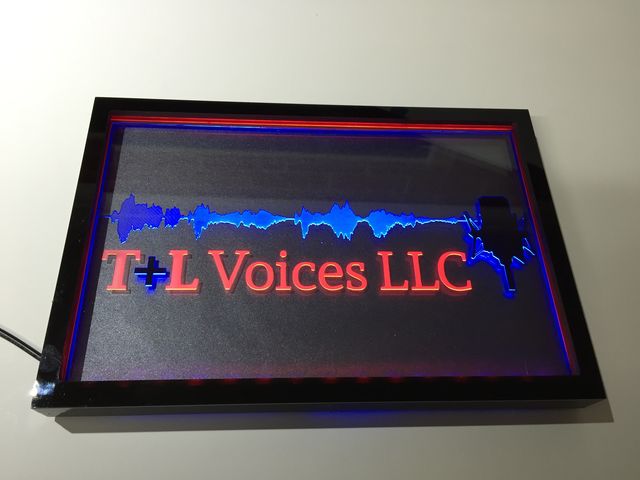

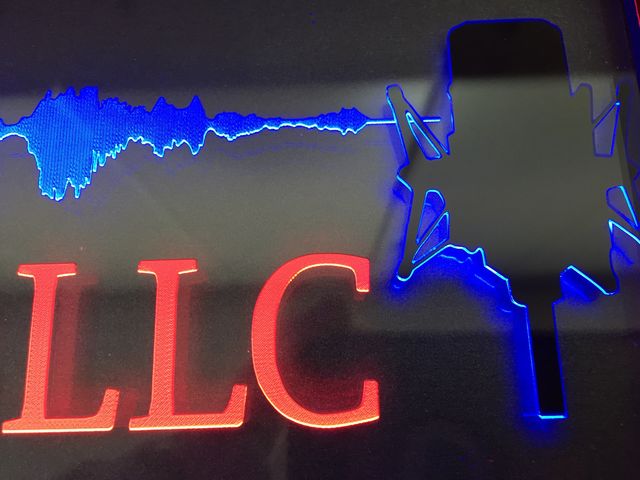

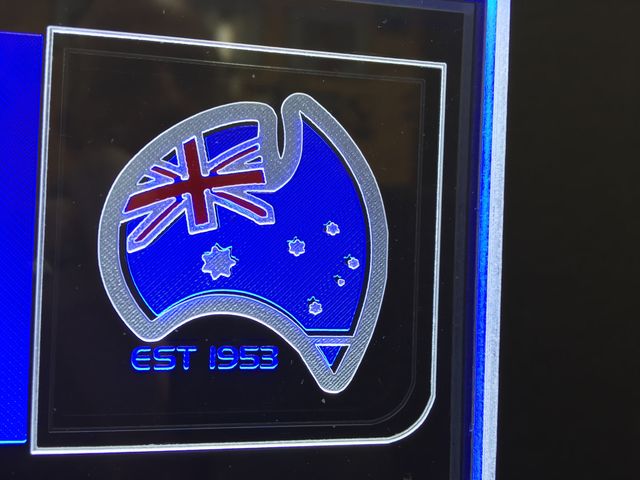

Fully Framed for wall hanging Two Fixed Colours Black Inlay for the Microphone Corporate Logo This shows the cross hatch engraving pattern I use. Red Acrylic Inlay as part of the flag

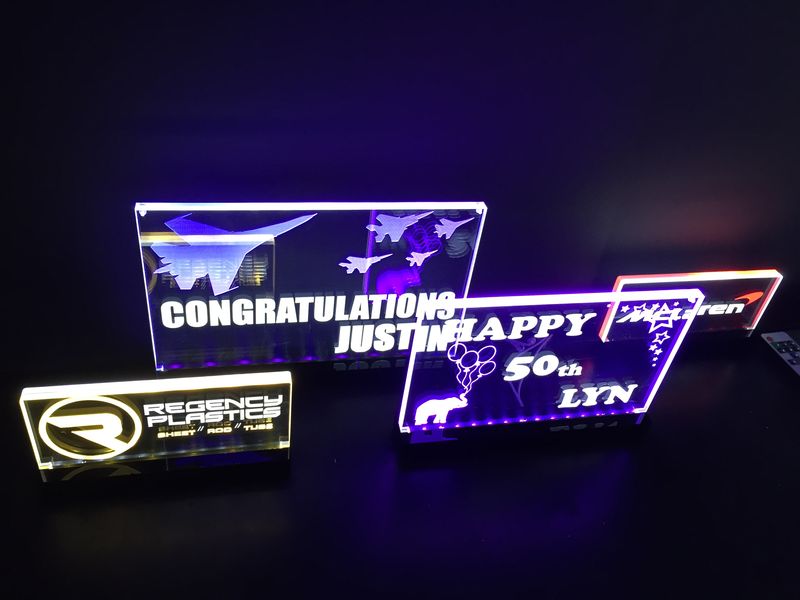

A collection of projects covering the past few years
2 Edge Lit Panel plus 1 50% Grey Back Panel Front Panel RGB LED Strip-  Controlable Mid Panel RGB Strip fixed  yellow
I chose this engraving pattern to be the most artistic The front panel colour can be changed via a remote control It can also be made to cycle through all available colours

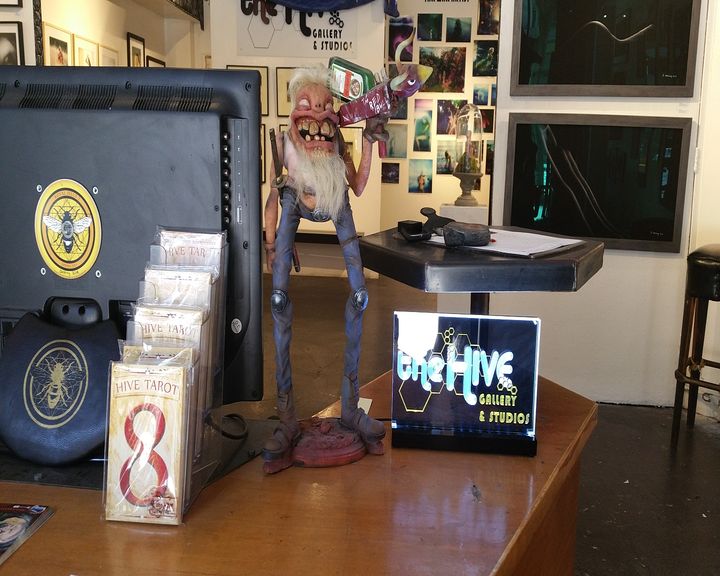

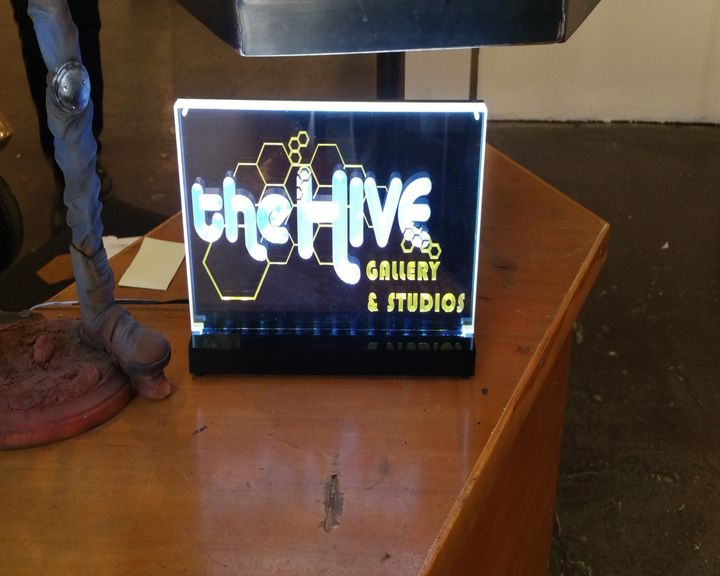

The 50% transparent grey back panel adds a special 3D effect Situated on the Gallery's front desk It is left on all night so people looking in from the street can see it
The Newest

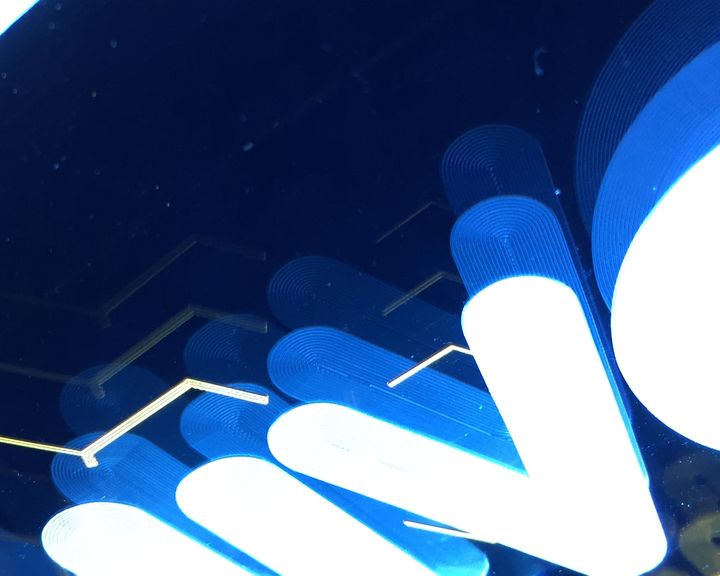

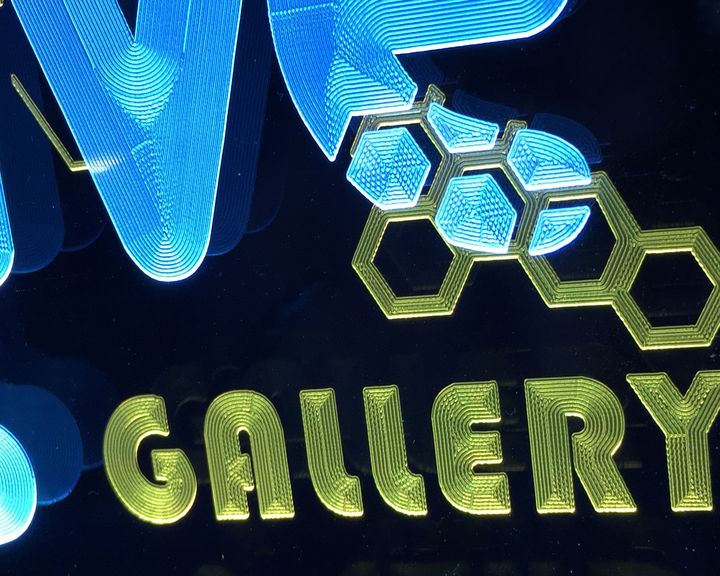

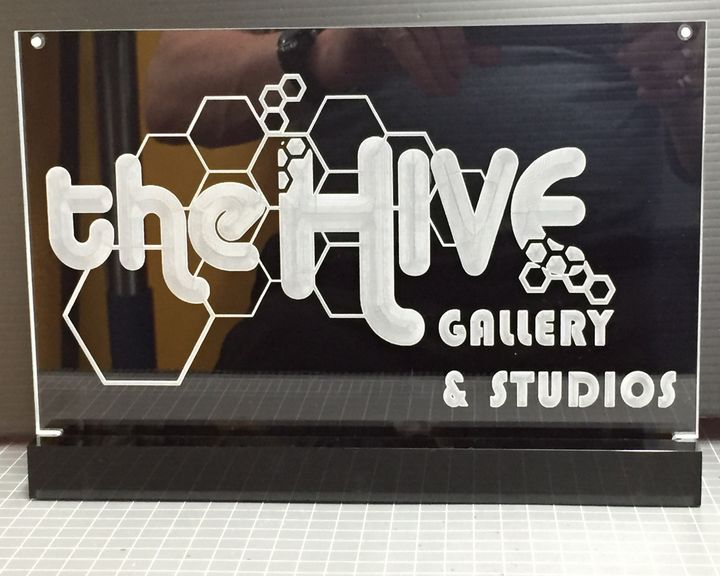

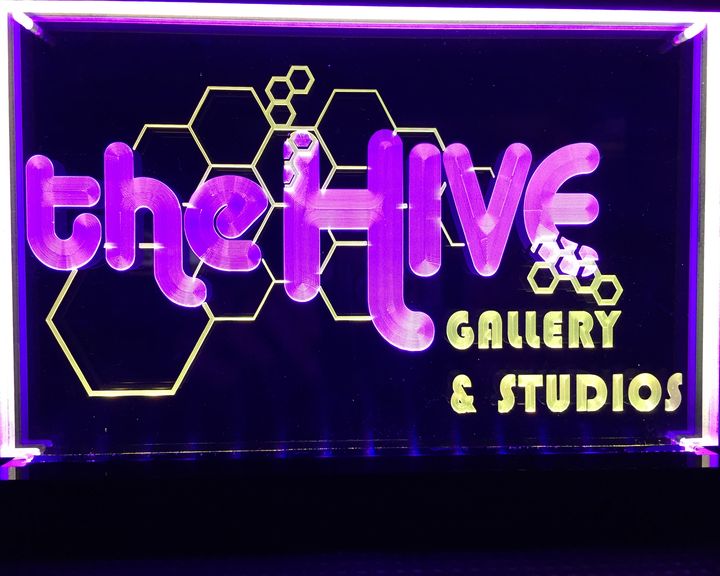

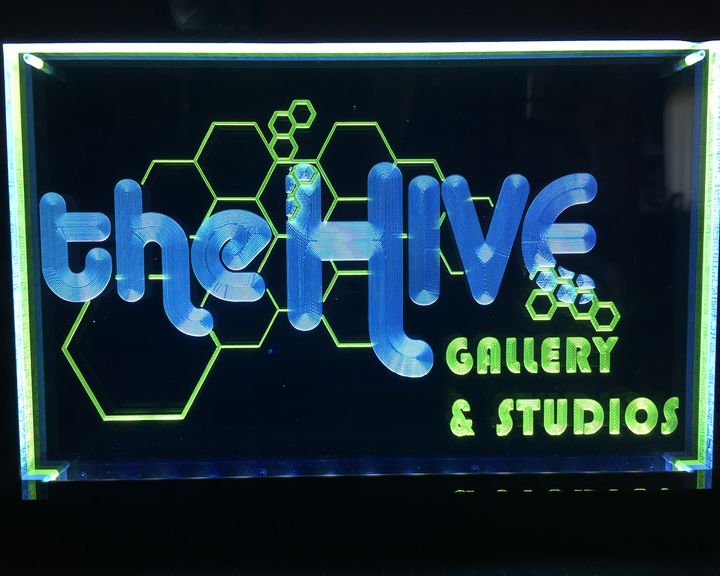

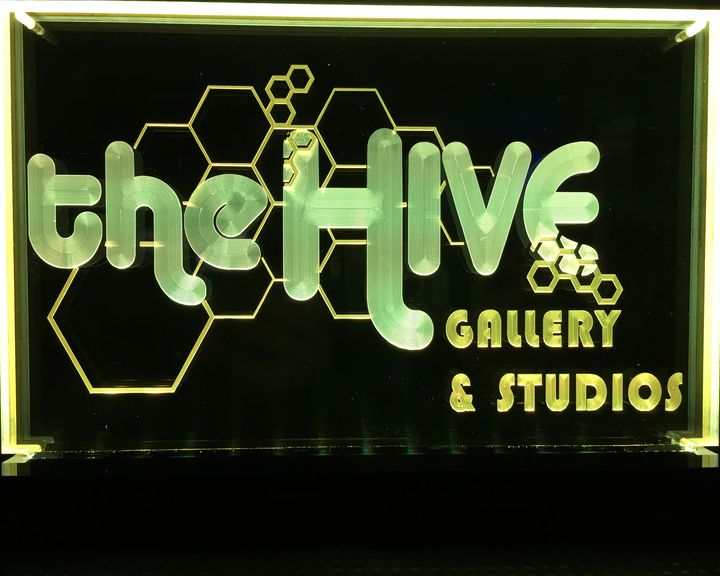

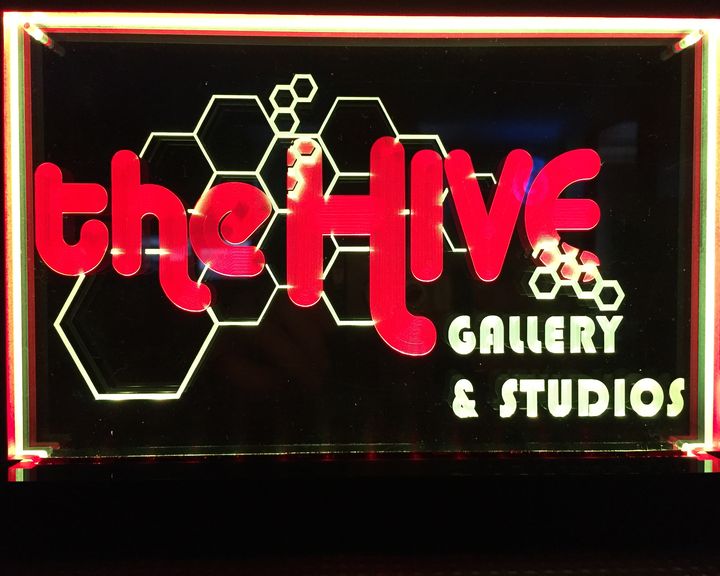

Made for The Hive Gallery & Studios - Downtown Los Angeles, California USA
