ACRYLIC STEPPER MOTOR MOUNTS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

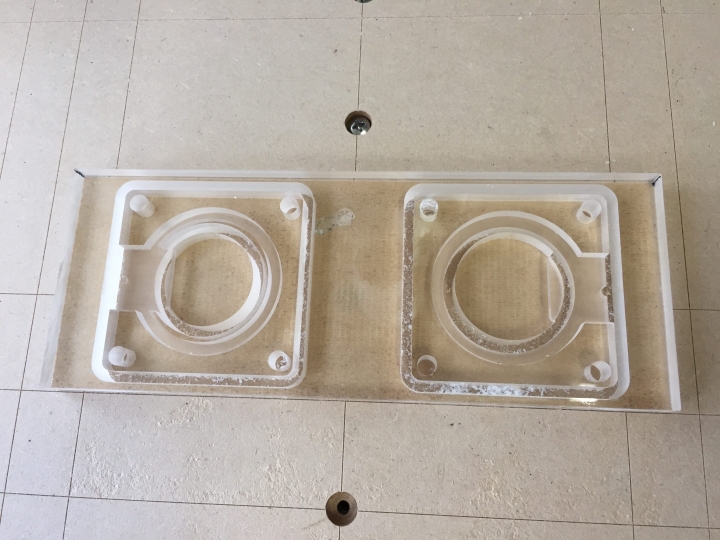

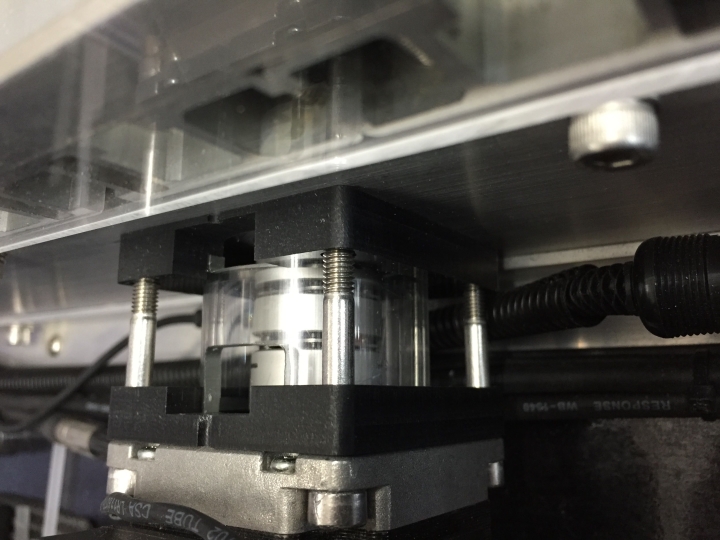

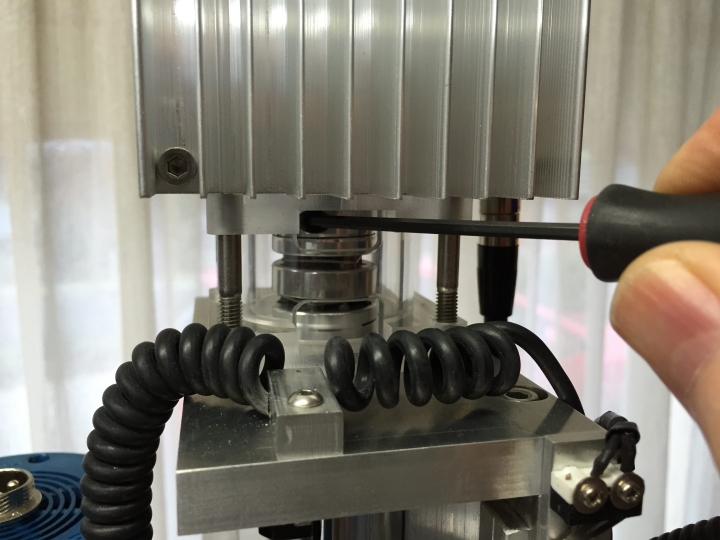

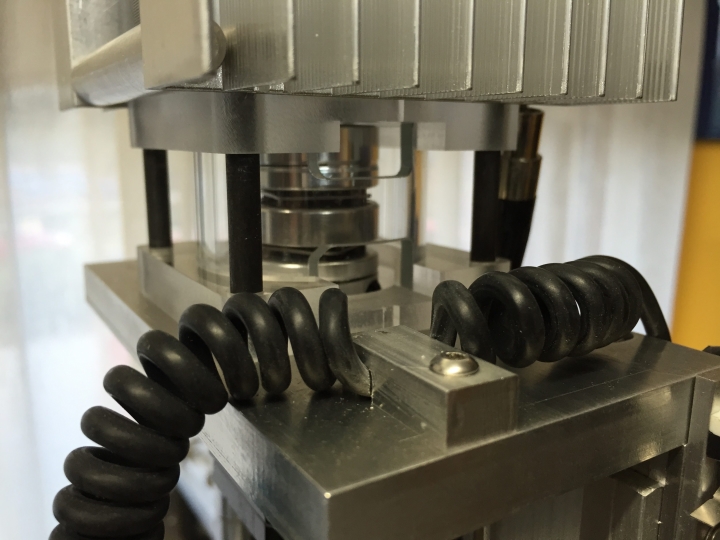

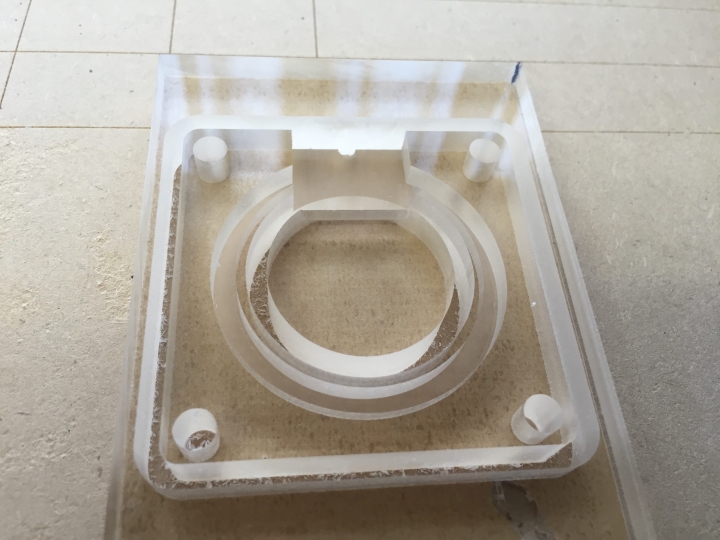

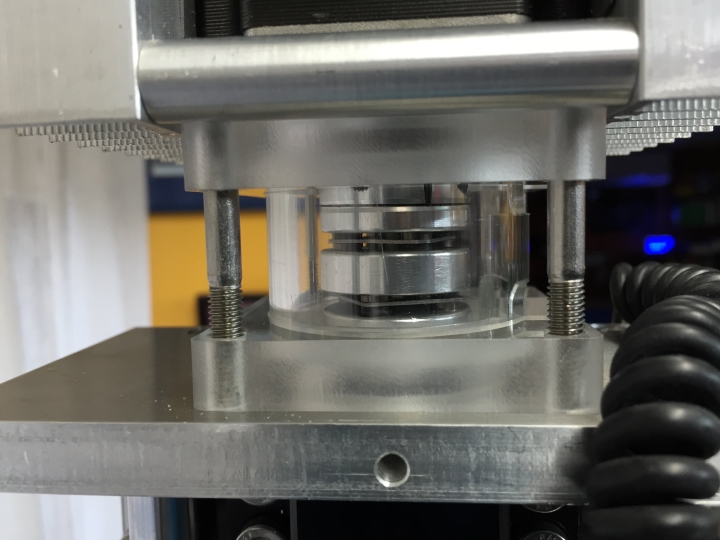

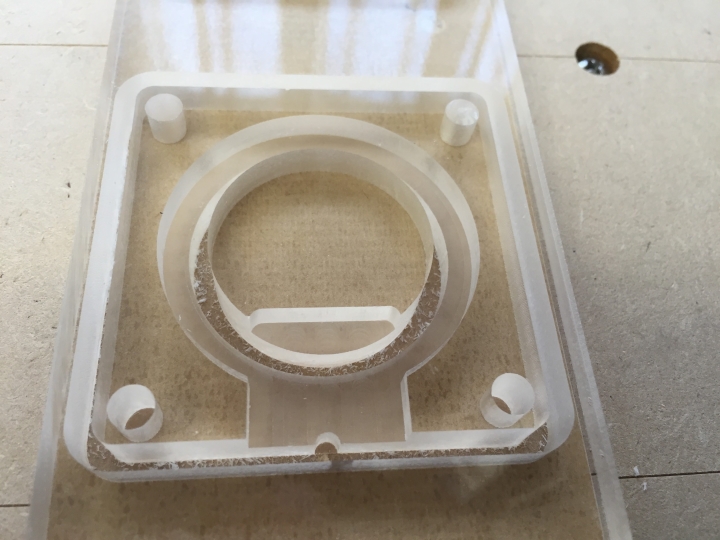

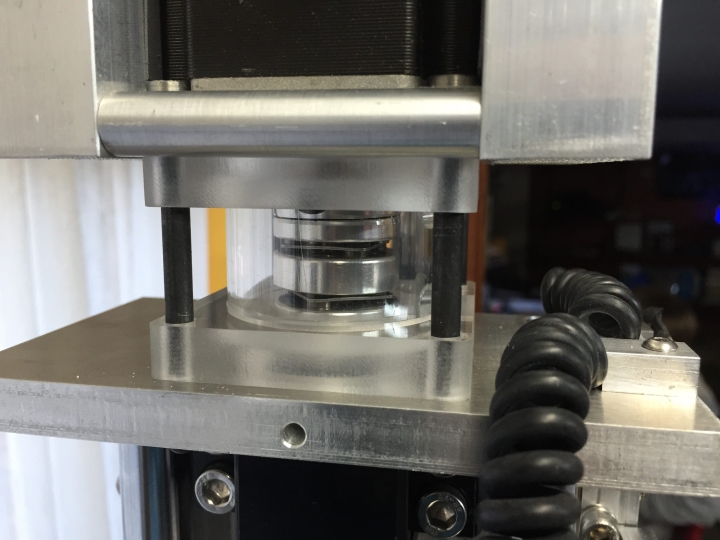

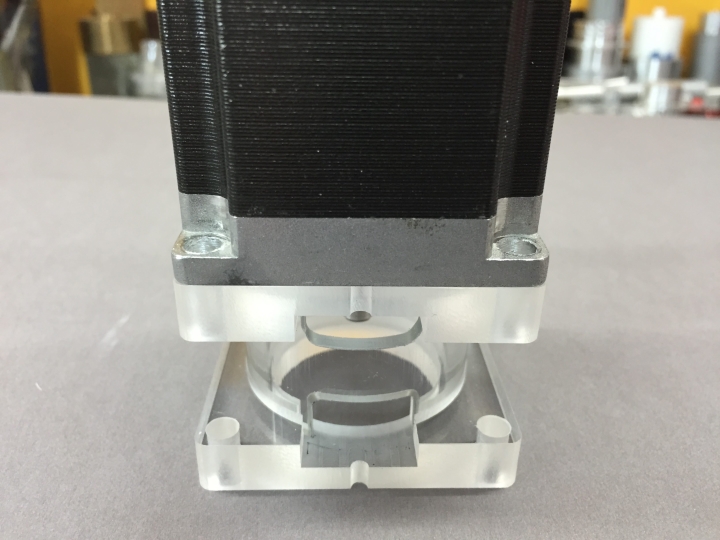

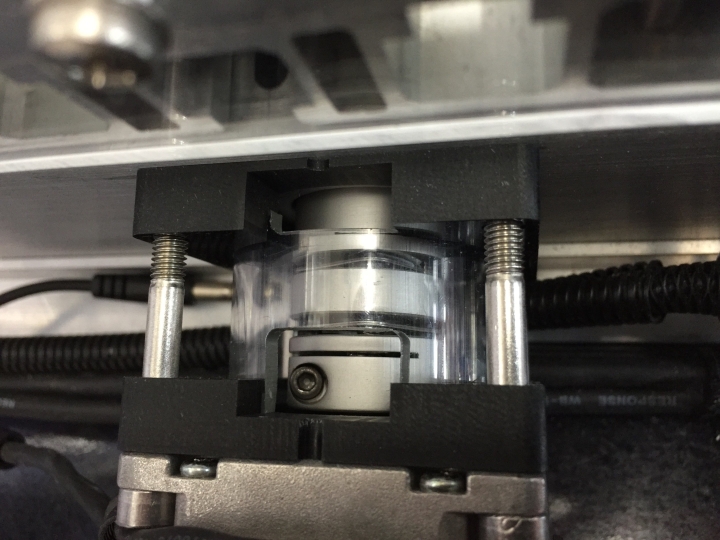

Some time ago I was at a loss for something to do so decided to make new Stepper Motor Mounts out of Acrylic and Polycarbonate. They have been on my router in use for probably 10 months now and there is no sign of any problem with them at all regardless of being made out of plastic.
Please note that all the information and downloads provided on this page are intended for personal use only.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
Page Created March 2016
DOWNLOADS
Dimensioned Drawings (.svg files) - All Machined Parts. Exported from Vectric Aspire. (zip file 10KB)
3D CAM Simulations (.jpg) - All Machined Parts. Exported from Vectric Aspire (zip file 37KB)
Full set of still photos (.jpg) - Those used for making the video. (zip file 5.5MB)
Scalable Vector Graphics (.SVG) is an XML-based vector image format for two-dimensional graphics with support for interactivity and animation. The SVG specification is an open standard developed by the World Wide Web Consortium (W3C) since 1999.
You can download a free SVG editor/viewer: "Inkscape SVG Editor" https://inkscape.org.
You can download a free SVG editor/viewer: "Inkscape SVG Editor" https://inkscape.org.
Vectric Aspire .crv3D files (zip 107KB)
This video was edited using still images and video that I took throughout the development and assembly process.
Click the image to play the YouTube Video
Click the YouTube Logo to go to my Channel
Click the image to play the YouTube Video
Click the YouTube Logo to go to my Channel

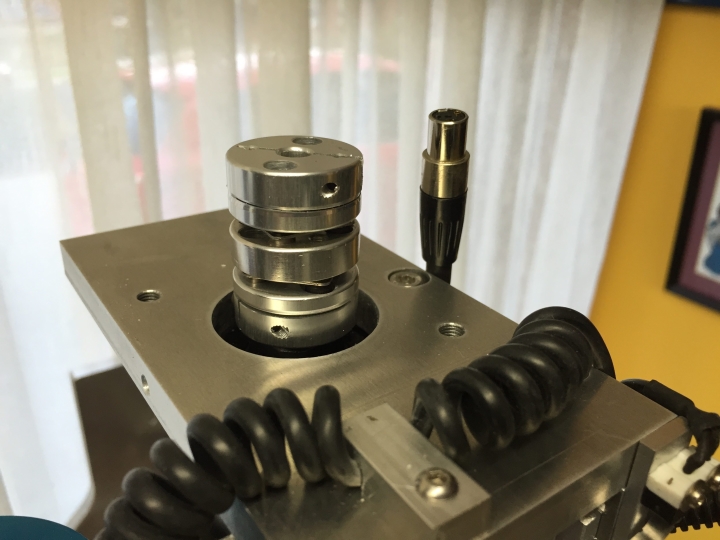

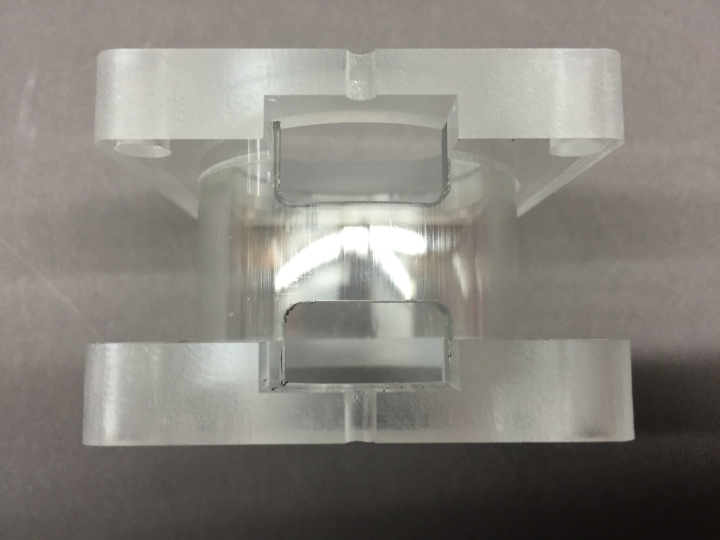

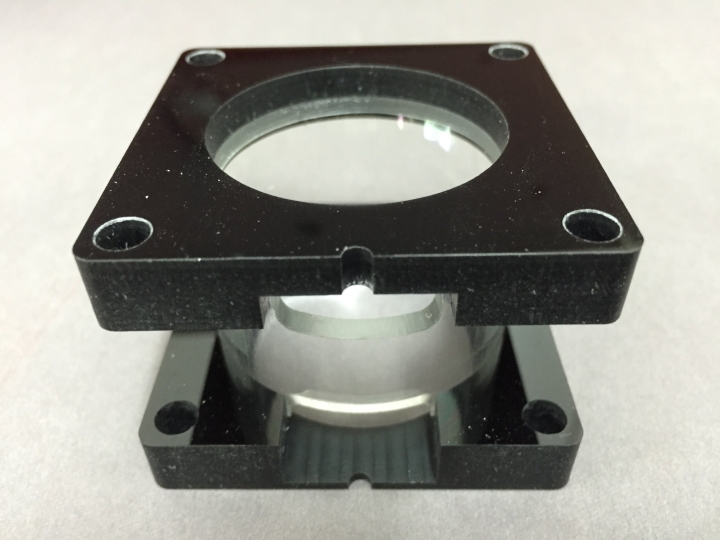

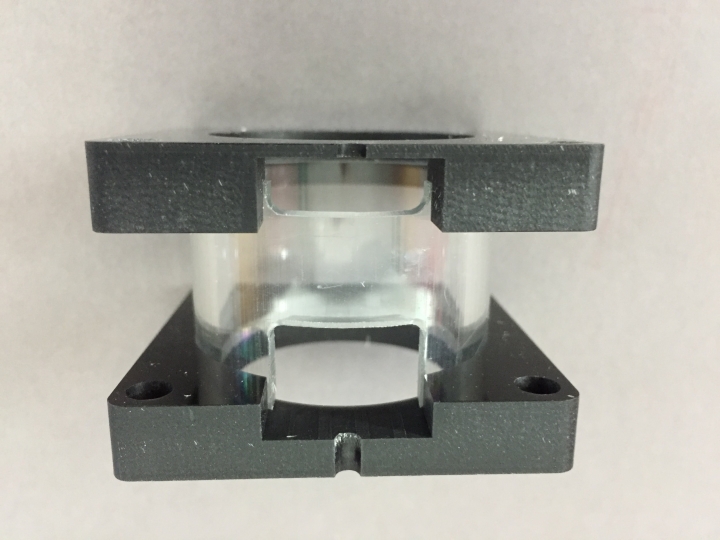

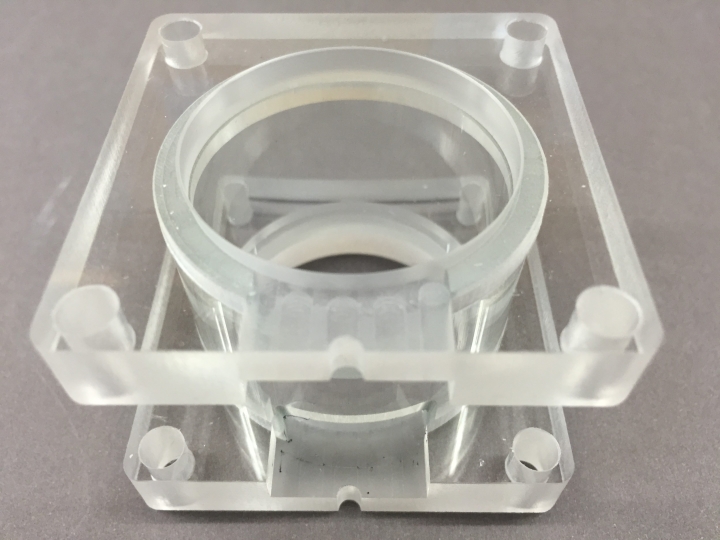

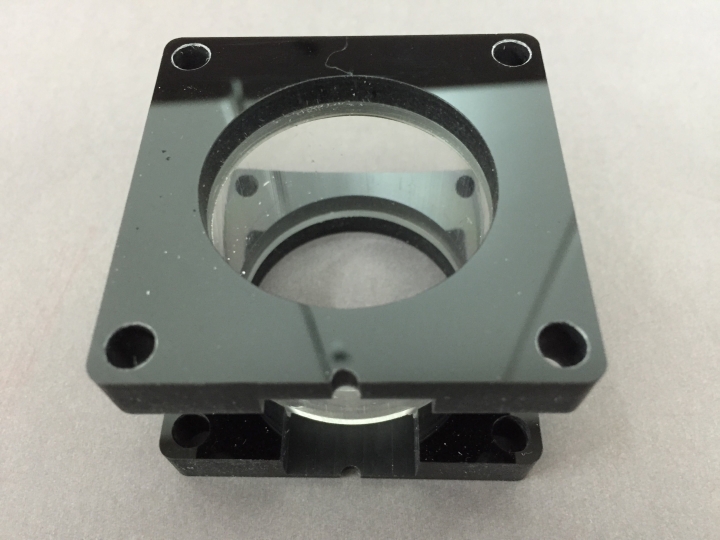

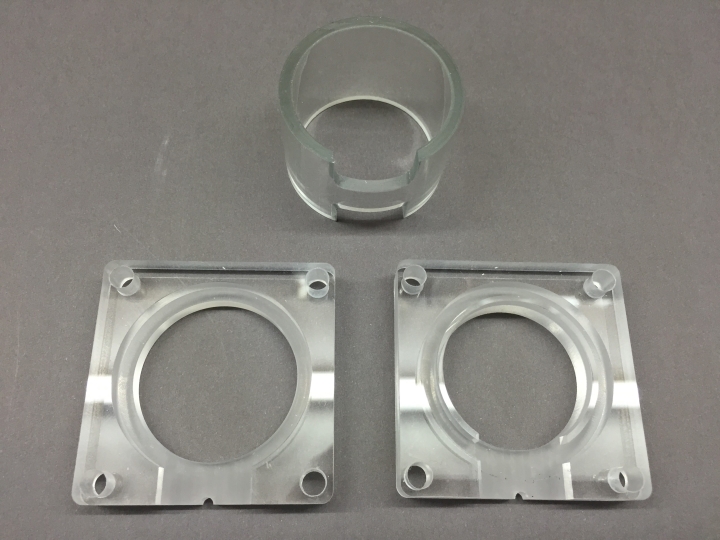

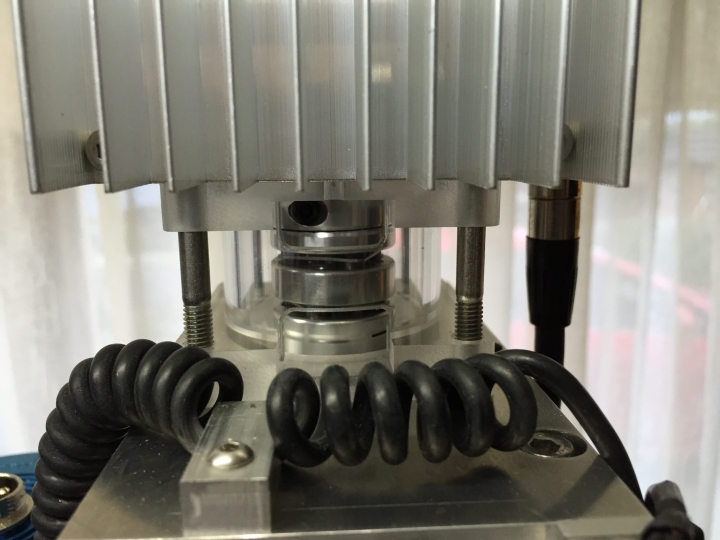

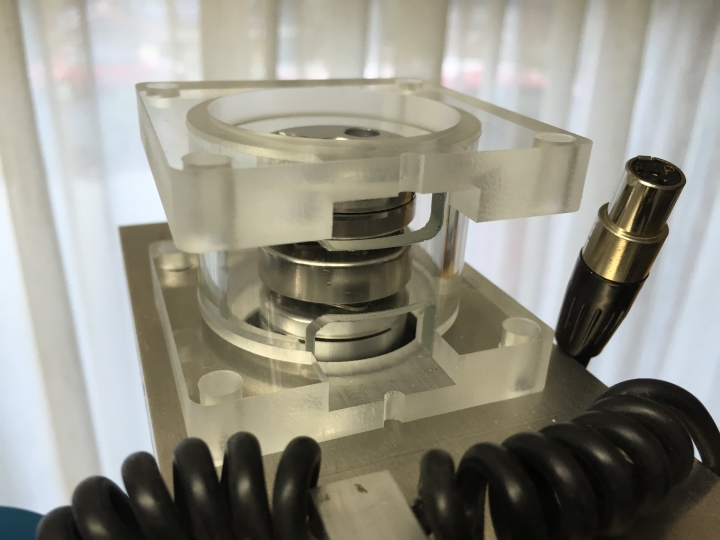

The Tube used was 44.6mm OD with a wall thickness of 3.0mm, length is 30mm. I faced them in a lath to ensure the ends were clean and parallel.

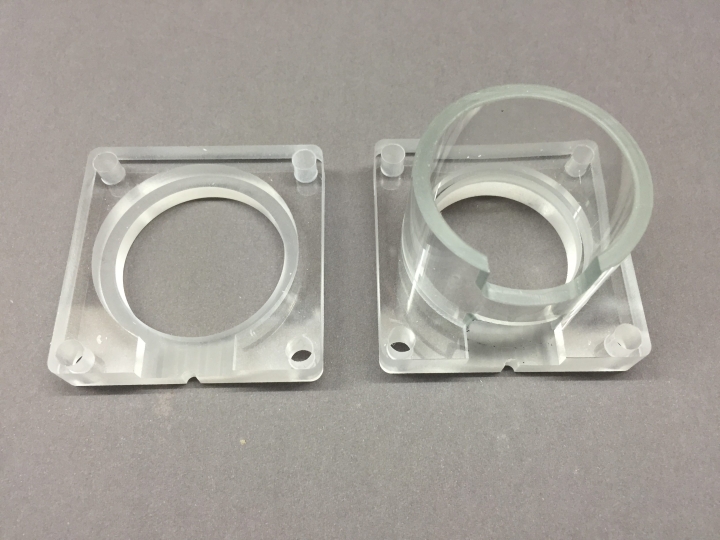

Once recessed into the two ends in this case the overall assembled length was 39mm. The ends use 10mm thick Acrylic but as Acrylic has a tolerance thickness variation the overall assembled length may vary slightly 0.5 to 1.0mm. For this application that is not relevant.
Anyone using my dimensions or Vectric Aspire files to make their own will likely have to adjust the tube recess diameter to suite their tube dimensions.
Once recessed into the two ends in this case the overall assembled length was 39mm. The ends use 10mm thick Acrylic but as Acrylic has a tolerance thickness variation the overall assembled length may vary slightly 0.5 to 1.0mm. For this application that is not relevant.
Anyone using my dimensions or Vectric Aspire files to make their own will likely have to adjust the tube recess diameter to suite their tube dimensions.
