February 6th, 2011
CLOCK ALJ21
Making my first clock for 2011

This is a pictorial overview for this clock, I have added comments to each image as they are displayed.
The clock is being made for a friend as a 21 Birthday present. It incorporates some elements from previous designs plus a few new ones that I wanted to try out. I have deliberately removed the persons name from some images for privacy.

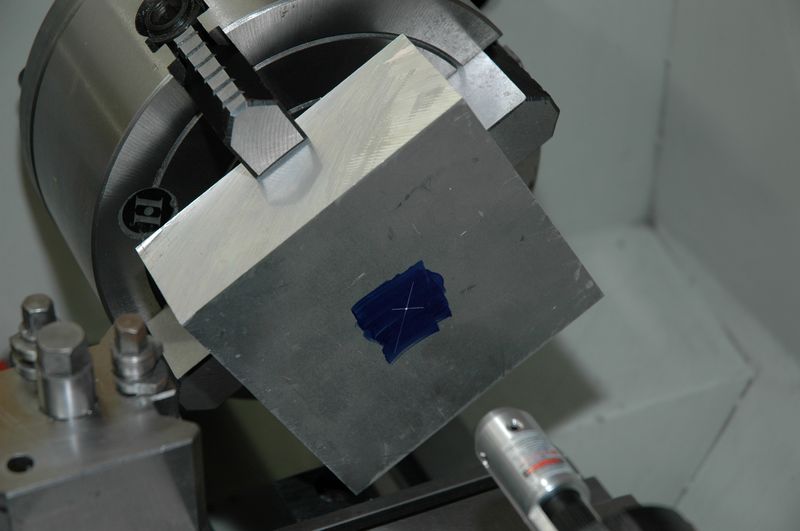

Setting up to bore the Clock Mech Pocket

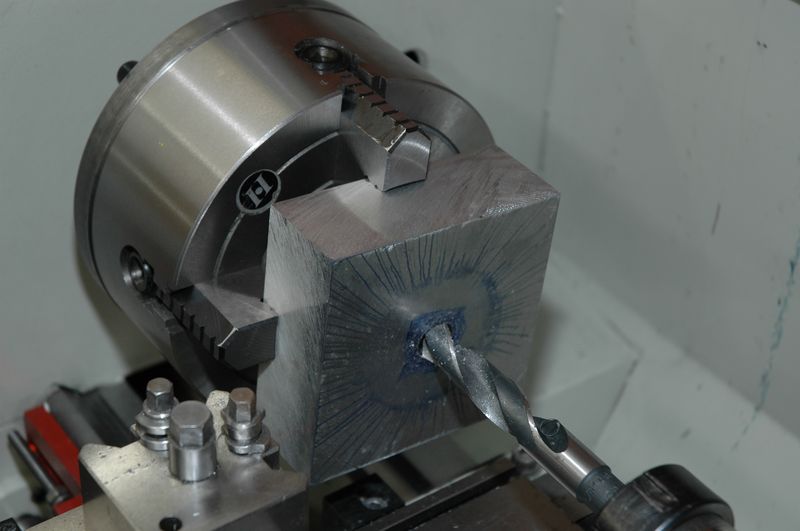

Drilling a pre boring hole

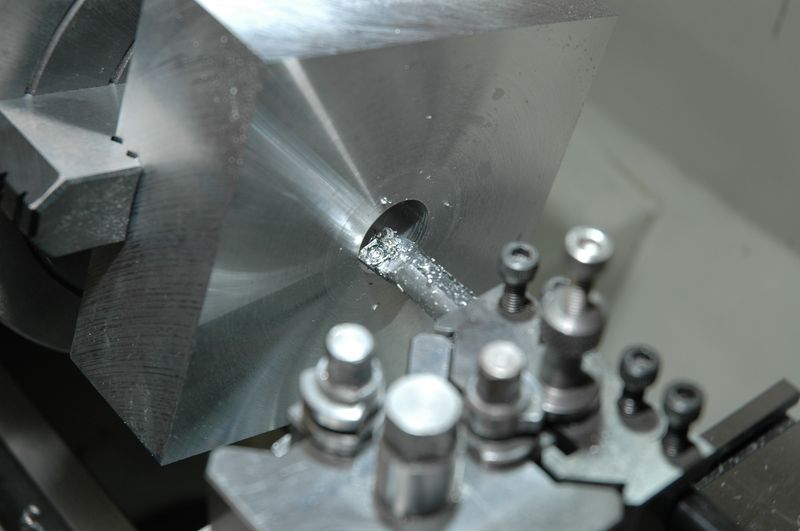

Starting the boring process (sorry for the pun)

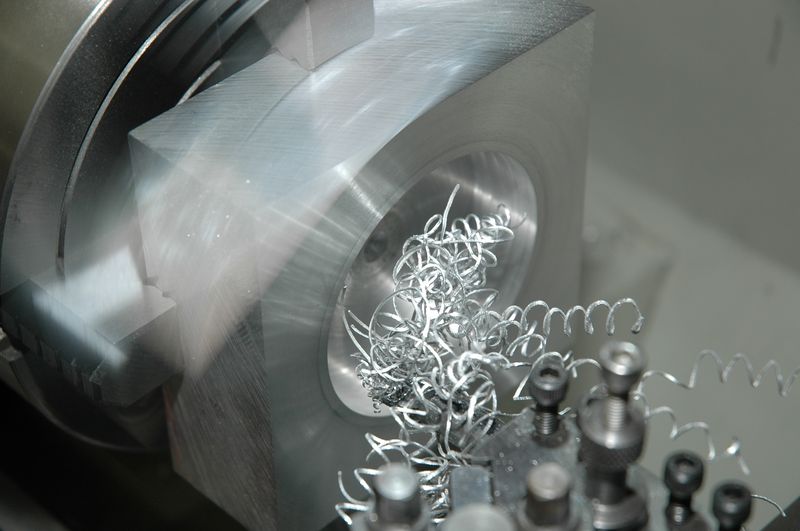

More boring, getting close to the outer diameter
The finished Clock mechanism pocket.

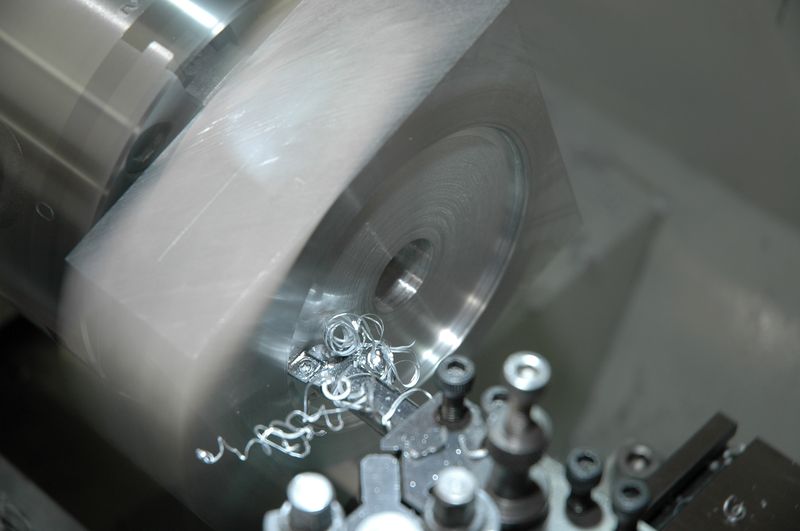

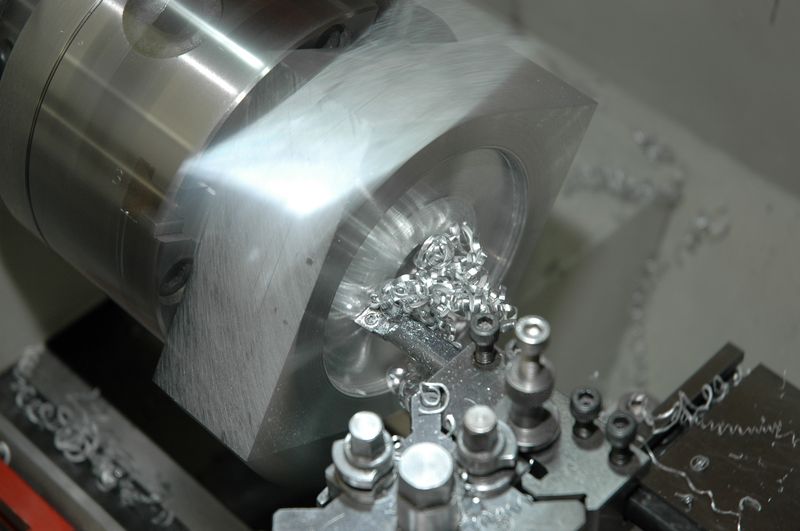

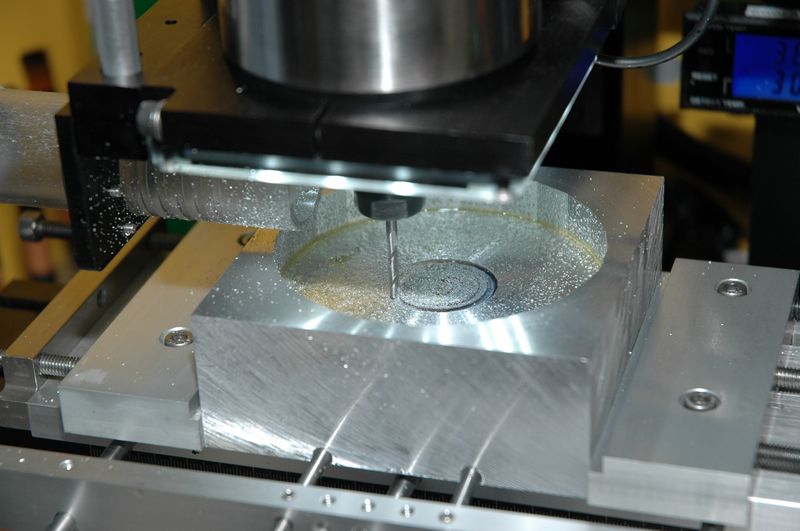

Now to boring the front face pocket.
Almost at the required final diameter

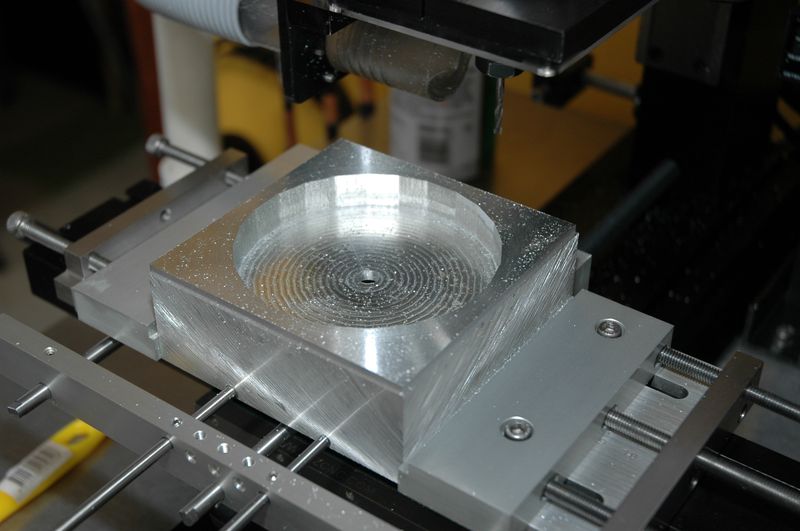

Star of the CNC process. The front face pocket
Front face, finishing the 12 sided outer profile
Profiling the Green Acrylic that will go behind the Numerals

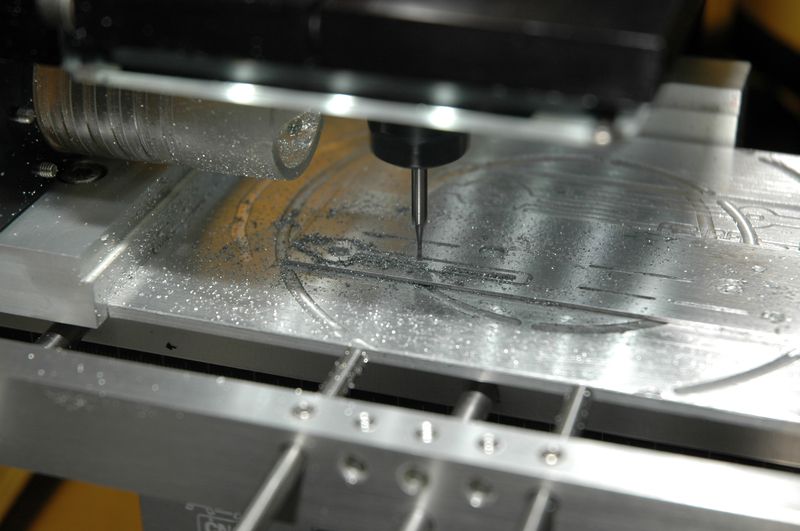

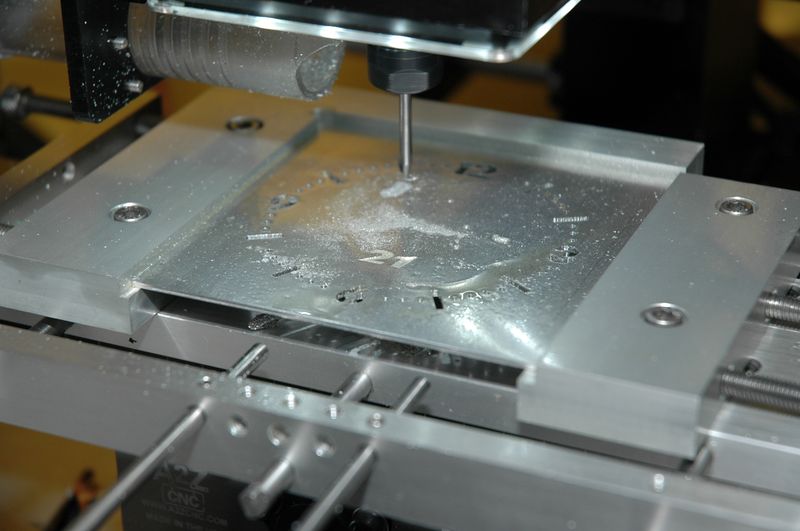

CNC Engraving & Proffiling the Clock Face

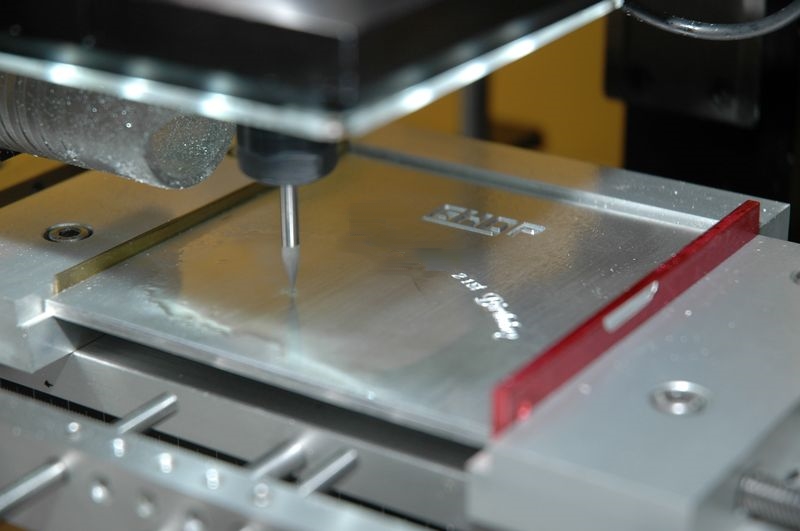

Engraving the back cover

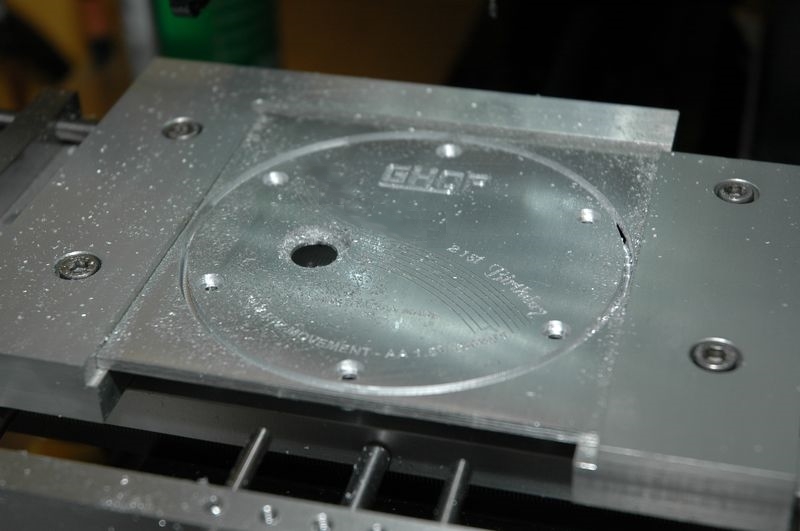

The Back Cover just out of the CNC process

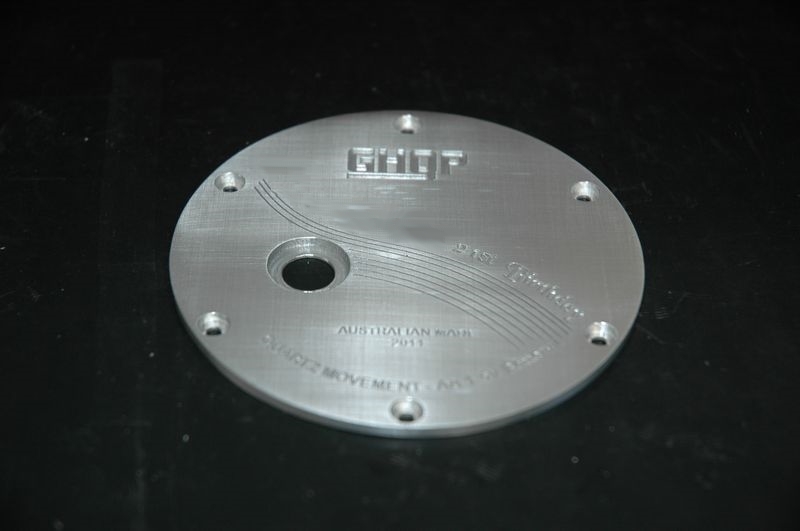

The finished back cover

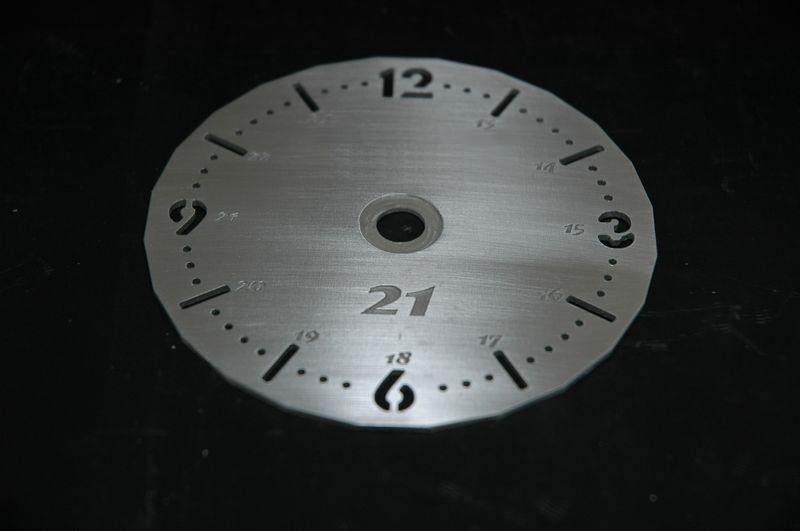

The finished Clock face

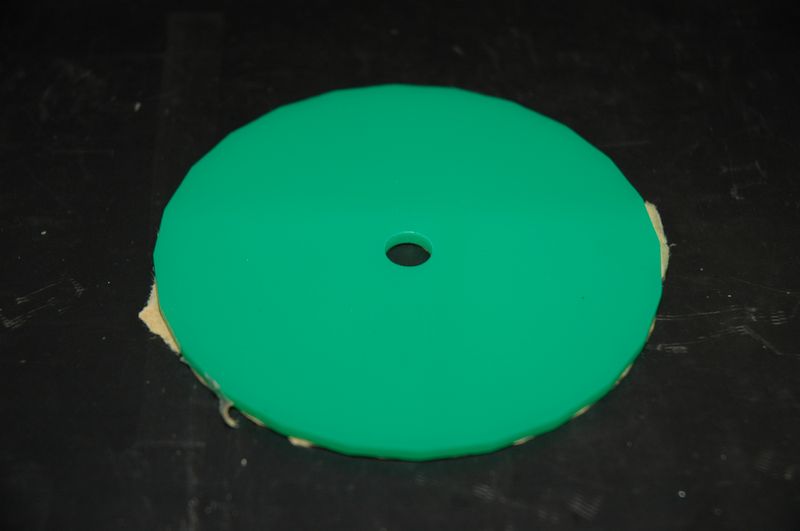

The Acrylic that will sit behind the Clock face.

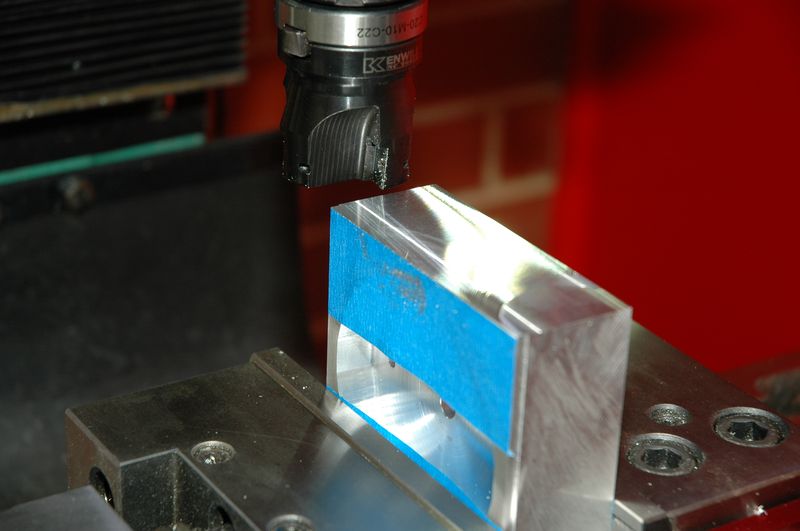

Final surface milling the Clock body to size.

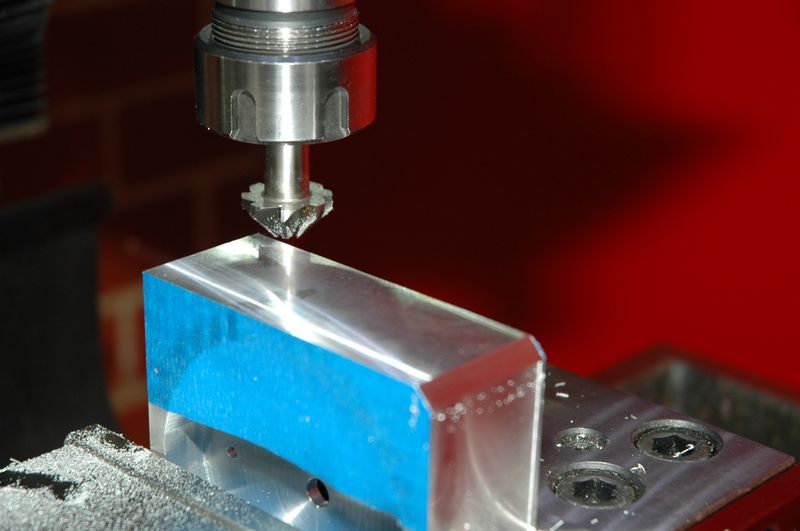

Milling a 45 Deg Chamfer on each corner.

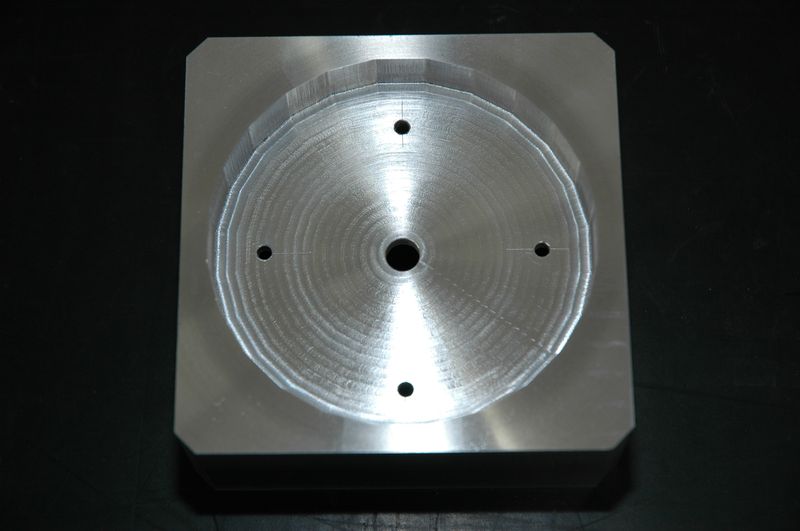

The Finished Clock Body
CNC Profiling the Hour, Minute and Second Hands

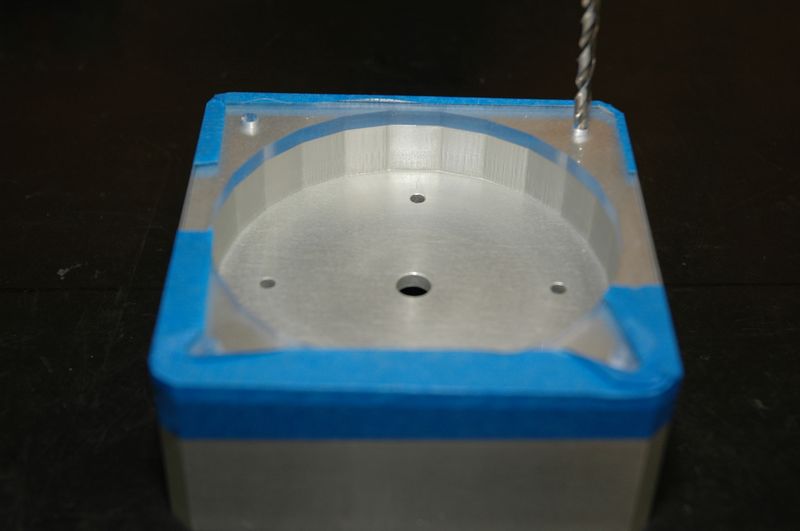

Marking the back cover securing hole locations into the main body

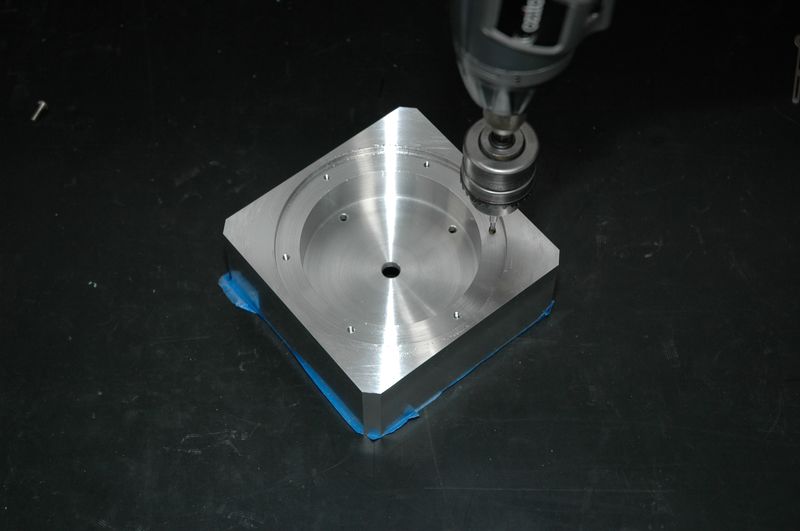

Tapping the back securing holes to an M3 thread

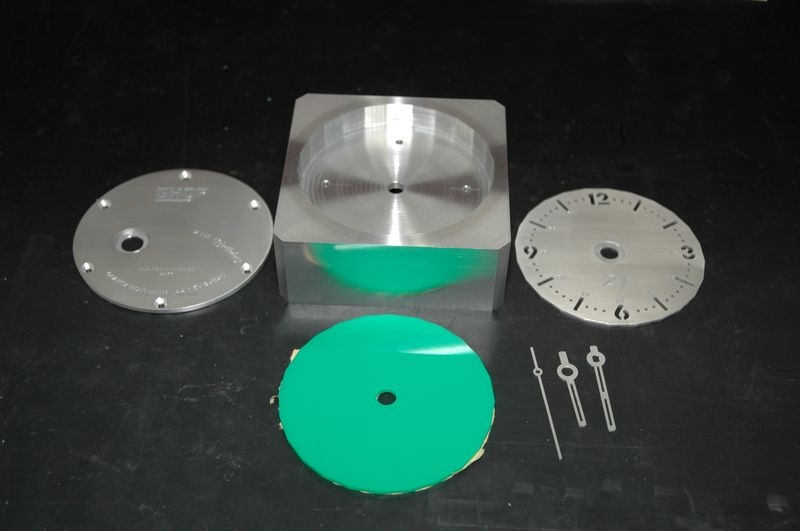

All the finished machined parts

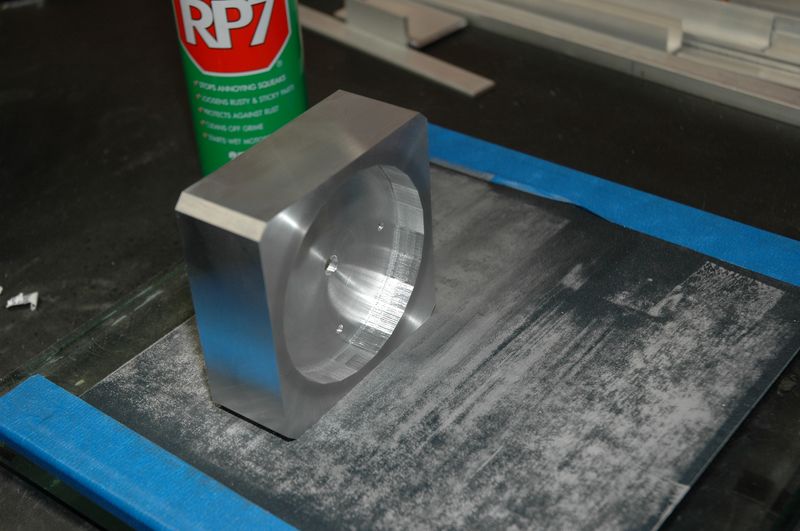

Finishing the main body using 400 wet&dry with RP7

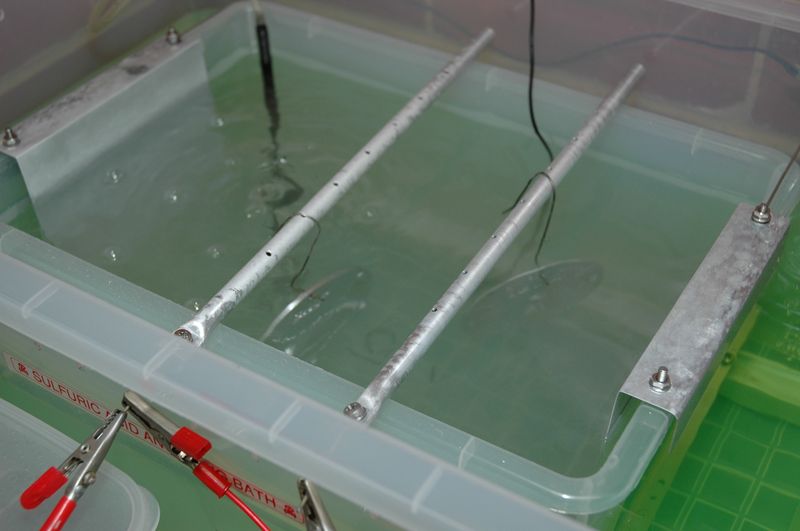

Anodizing the parts.

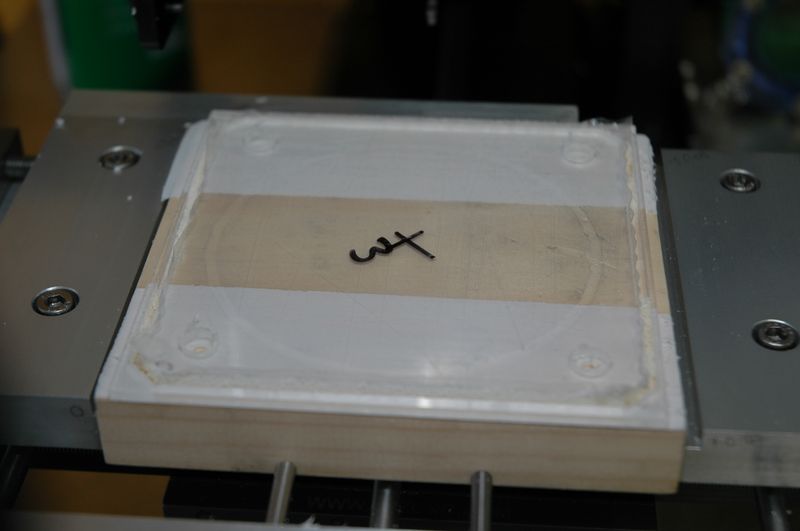

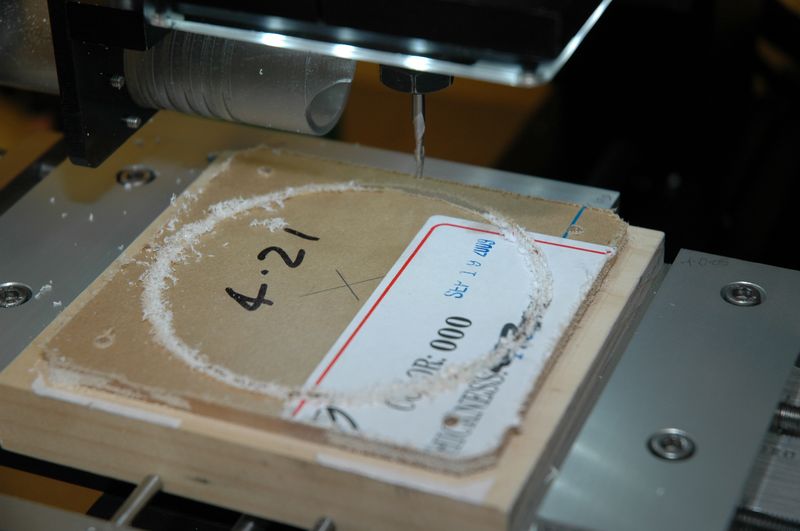

Routing the Acrylic front spacer
Routing the Acrylic front bezel.

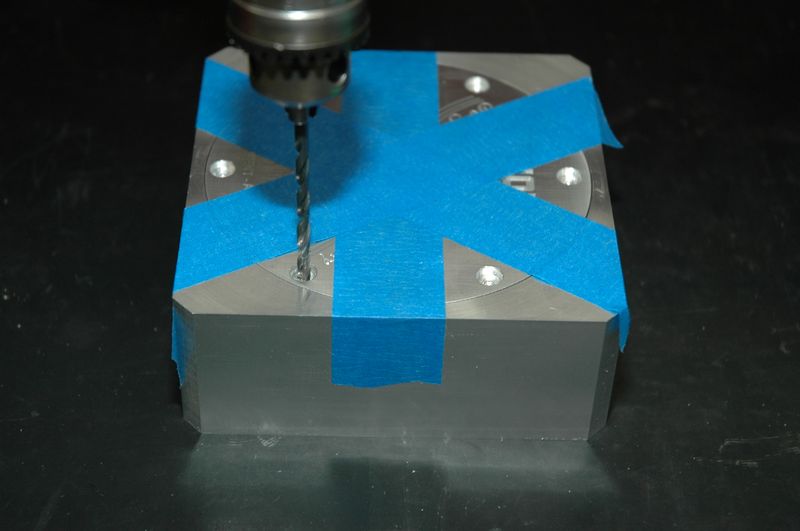

Marking the location of the 4 x M4 securing holes

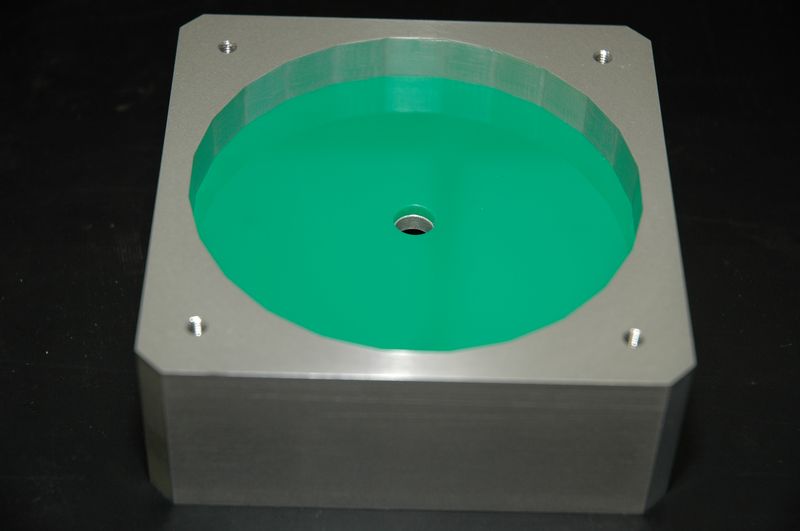

Fitting the Green Acrylic face backing

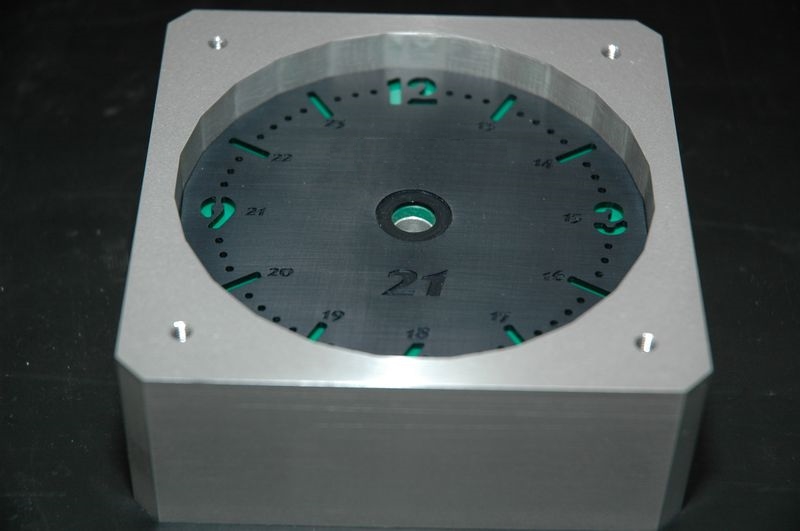

Fitting the Black Anodised face.

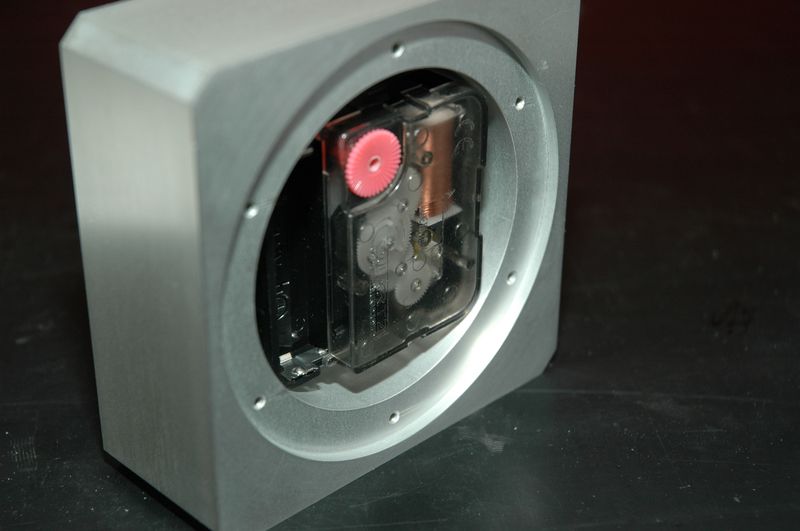

Fitting the clock mechanism

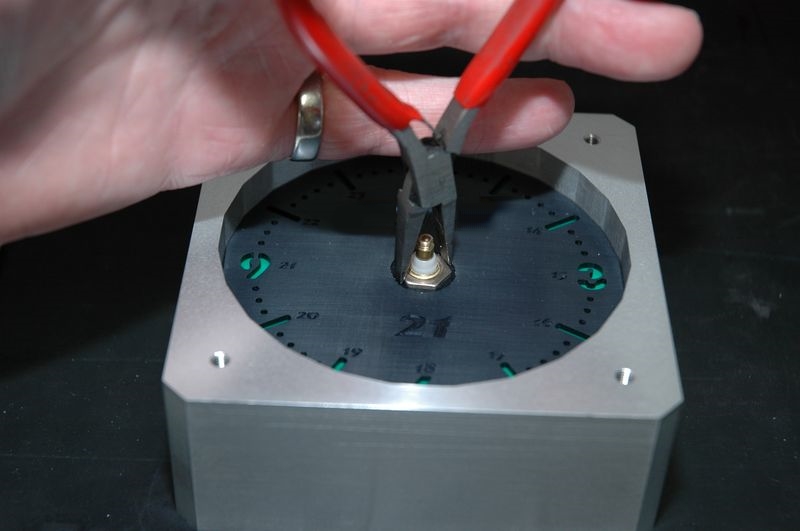

Securing the clock mechanism spindle nut

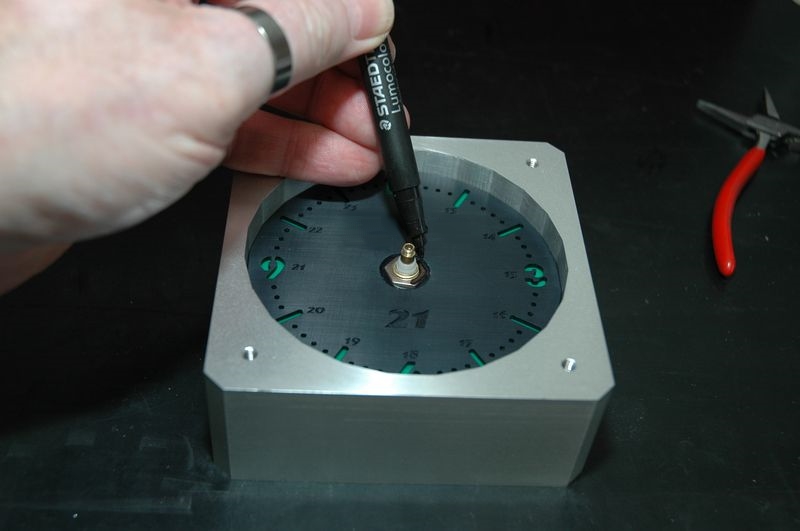

Just a touch of black marker to blend the brass nut with the face.

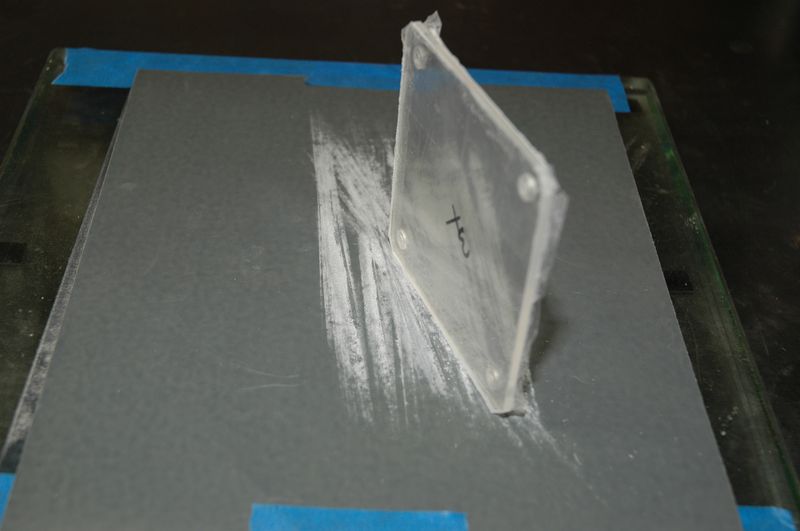

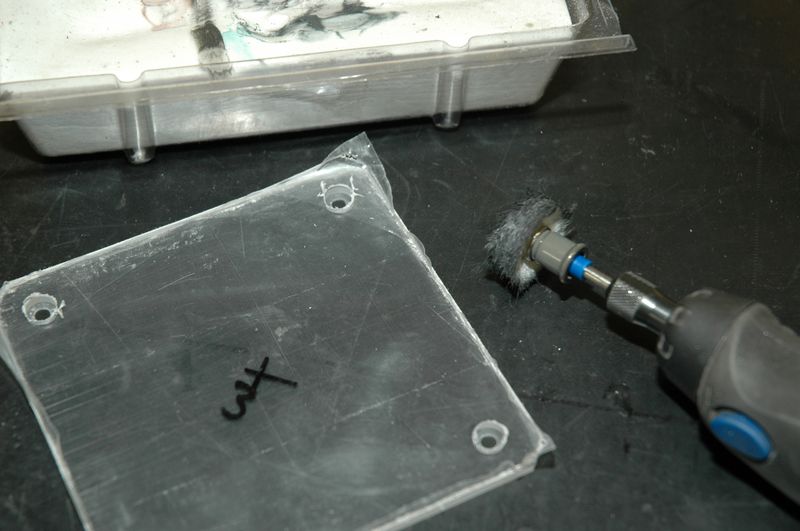

Smoothing the edges of the acrylic with 1200 Wet & Dry Paper
Polished the edges of the acrilic front components.
THE FINISHED CLOCK

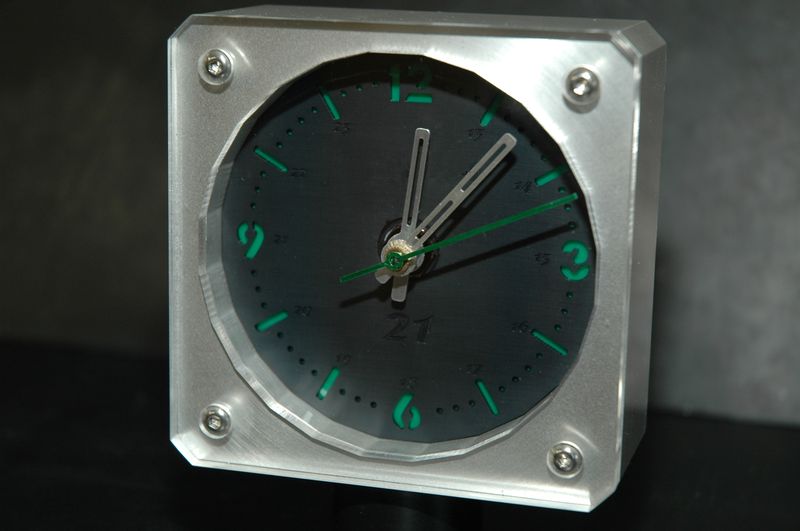

The Finished Clock - FRONT

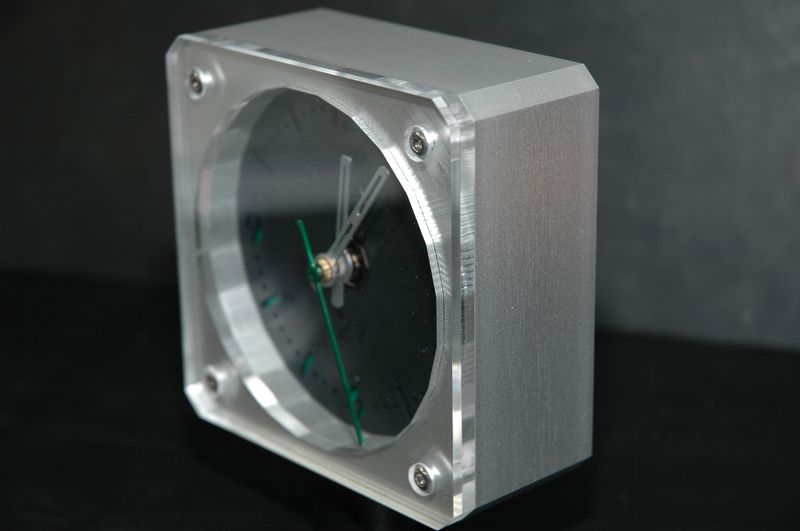

The Finished Clock - 3D

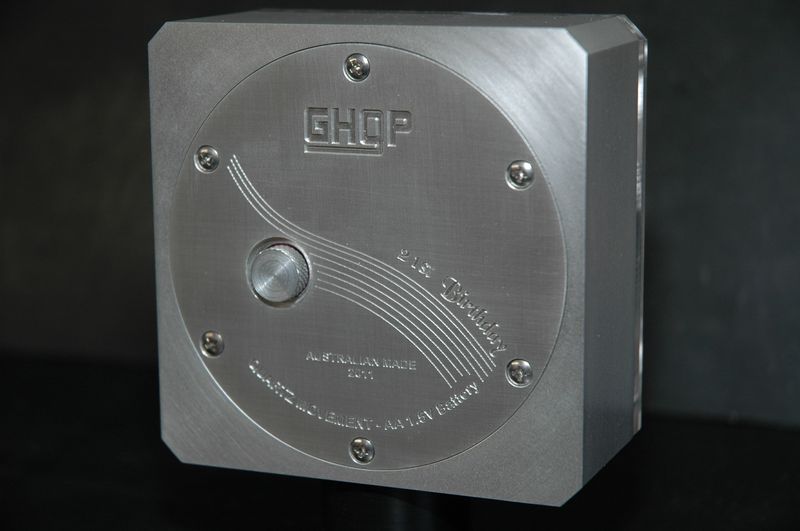

The Finished Clock - BACK
COMPLETED
