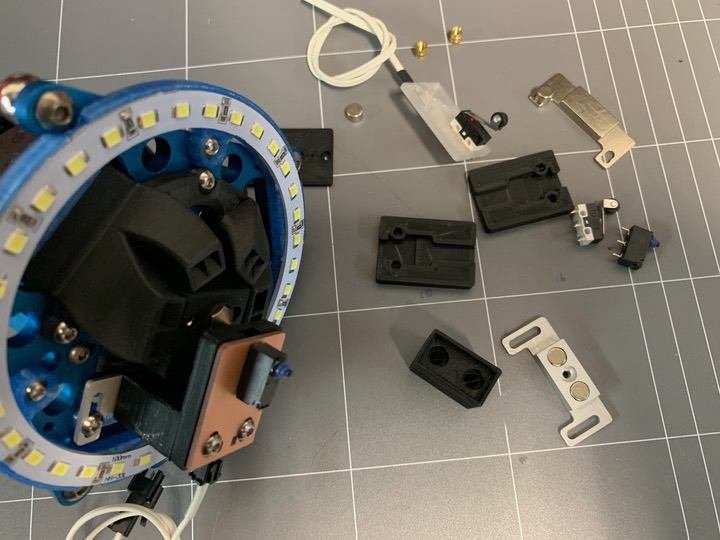

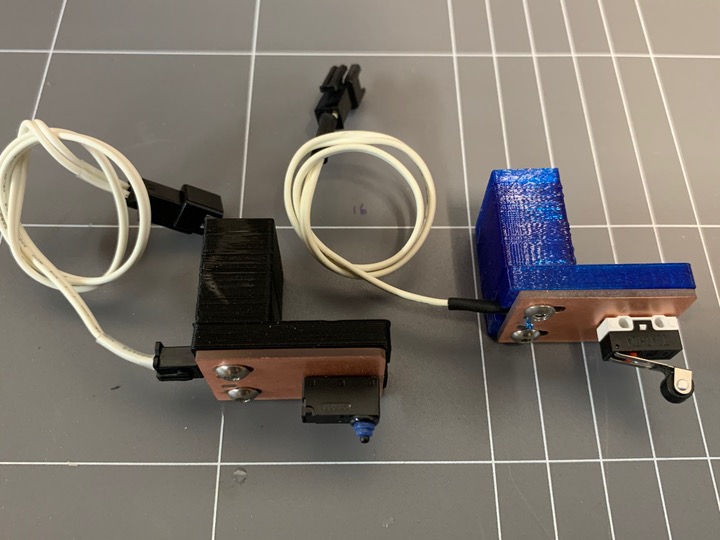

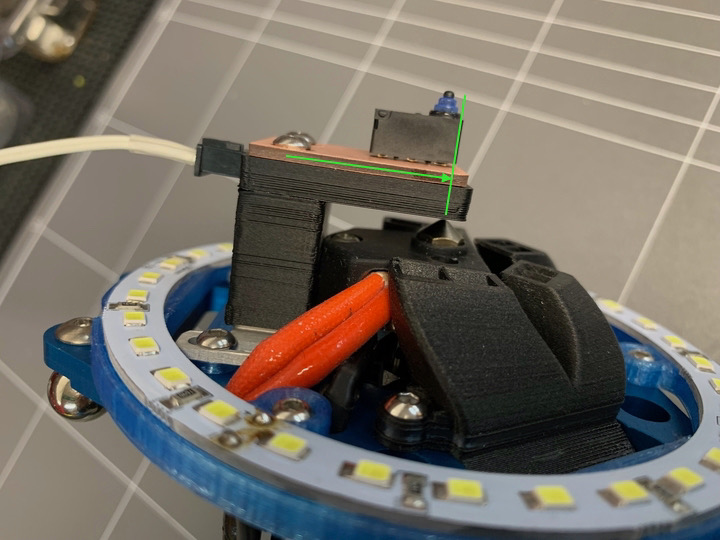

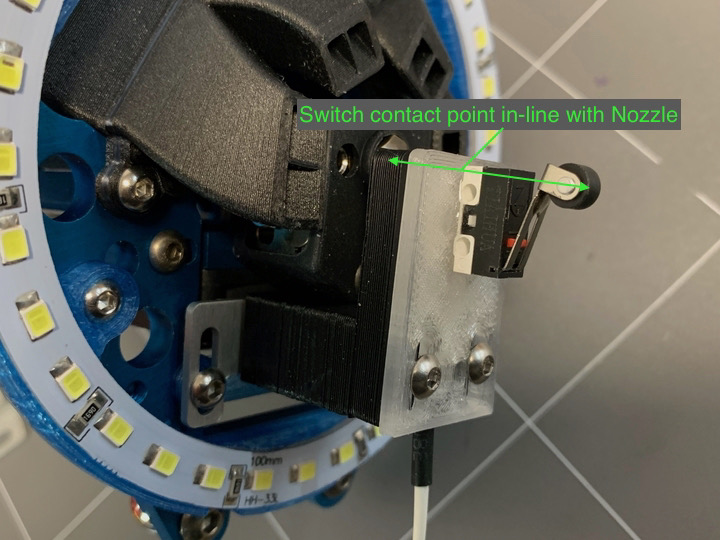

This is my design for a replacement Magnetic Predator Bed Level Sensor Switch. Originally most of the parts were CNC machined from Acrylic, however I adapted that design to be able to 3D print the main body parts. I have made a short introduction video that also includes a number of still images as a slide show. Also these images are available for viewing on this page along with a downloadable .zip file containing all of them for off-line viewing.

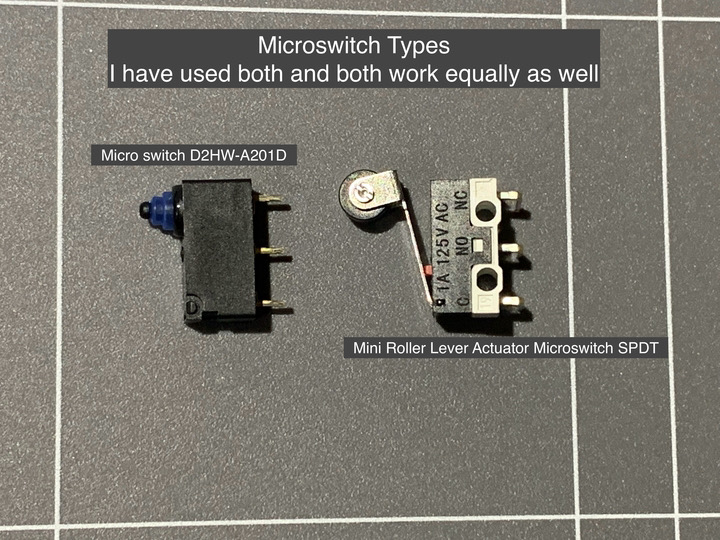

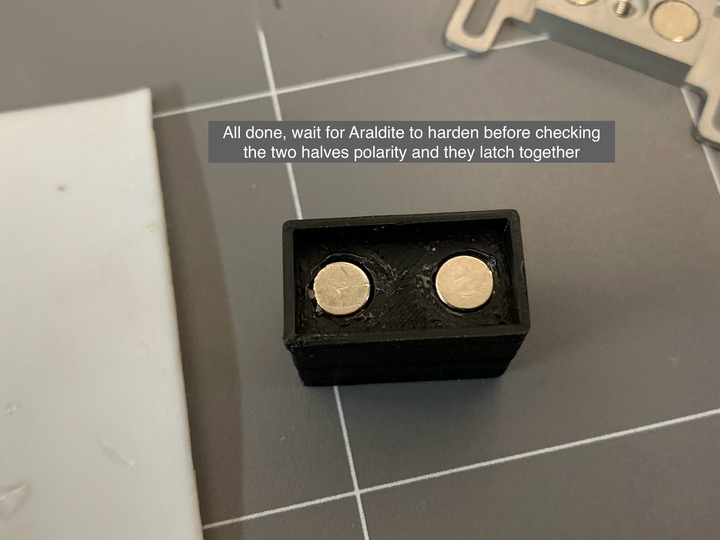

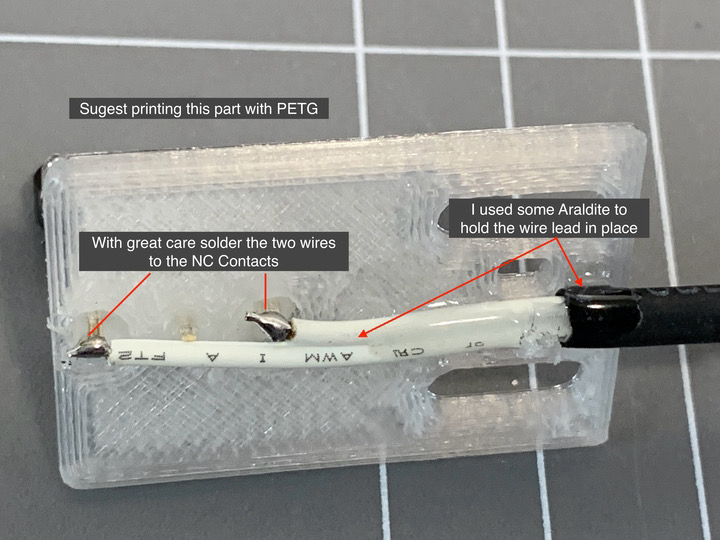

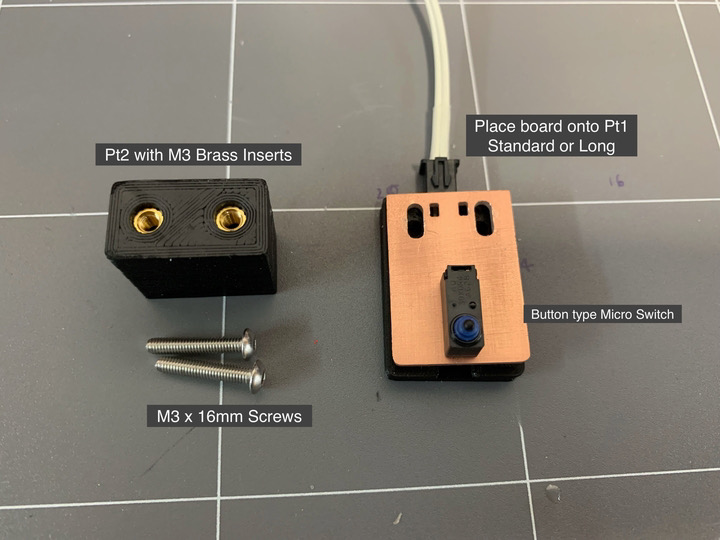

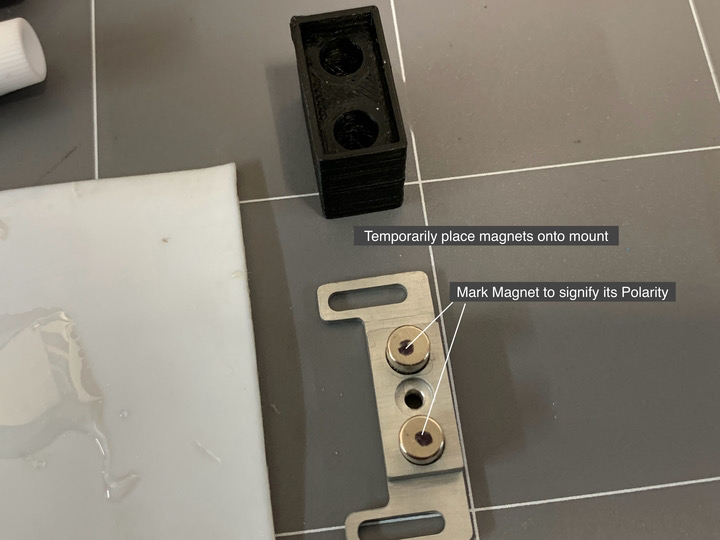

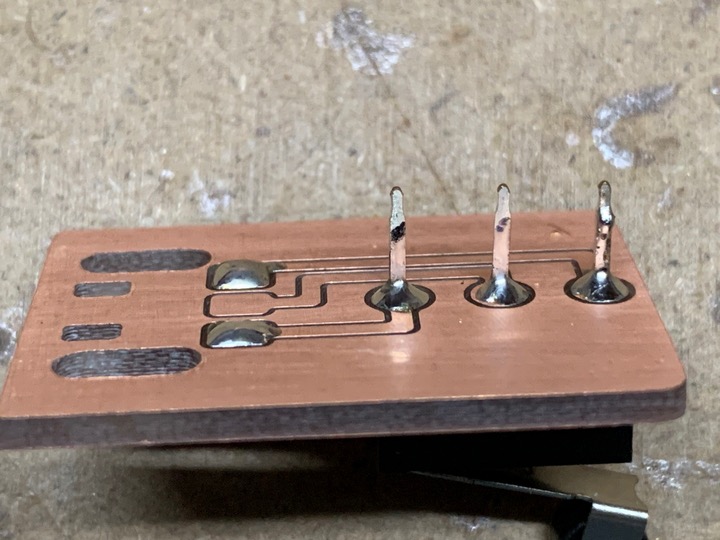

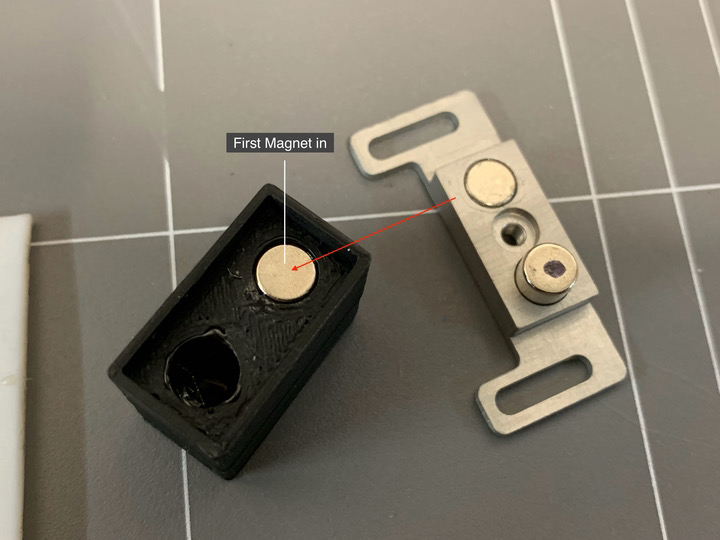

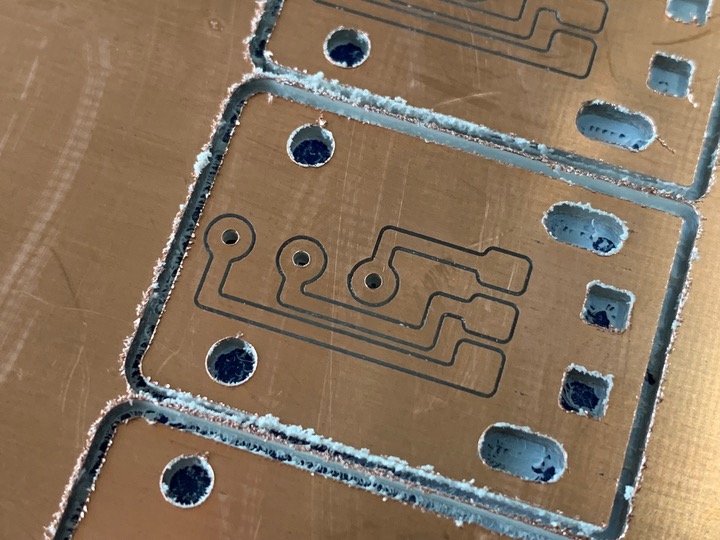

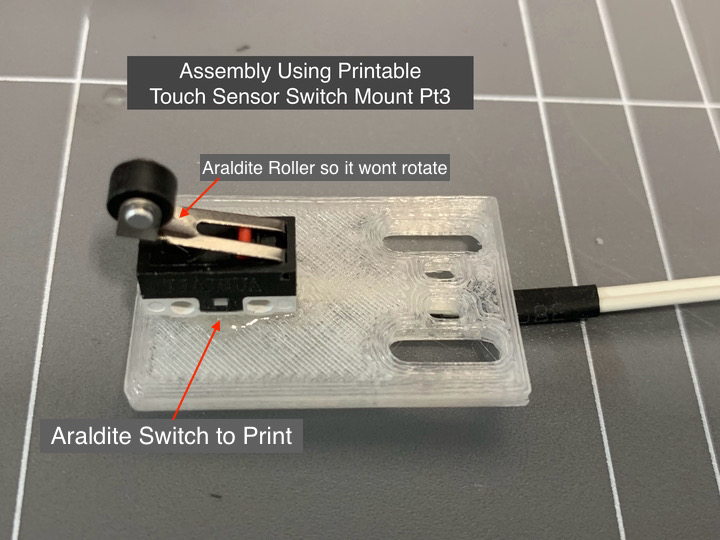

The .stl files are also available as a download. It is not my intention to make and sell the switch but more present all this so that anyone interested can make their own. The still images containg relevant text notes on the various parts needed such as magnets, switches etc.
If you do need any specific point clarified or have a question I am available via the Contact Me form.
The .stl files are also available as a download. It is not my intention to make and sell the switch but more present all this so that anyone interested can make their own. The still images containg relevant text notes on the various parts needed such as magnets, switches etc.
If you do need any specific point clarified or have a question I am available via the Contact Me form.
Please note that all the information and downloads provided on this page are intended for personal use only.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
Page Created
Date: Sept 20, 2021
Date: Sept 20, 2021
DOWNLOADS

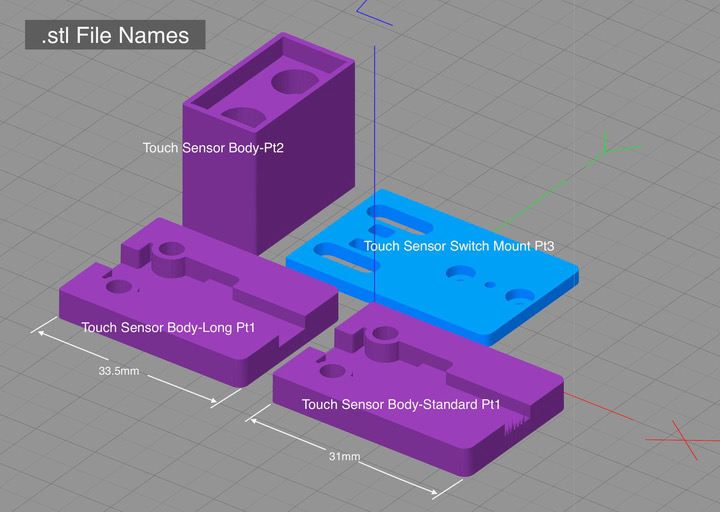

Full set of the .stl files
BED LEVEL SENSOR SWITCH
Click to play Video
Click an Image for a popup larger view
Full set of the above still images
