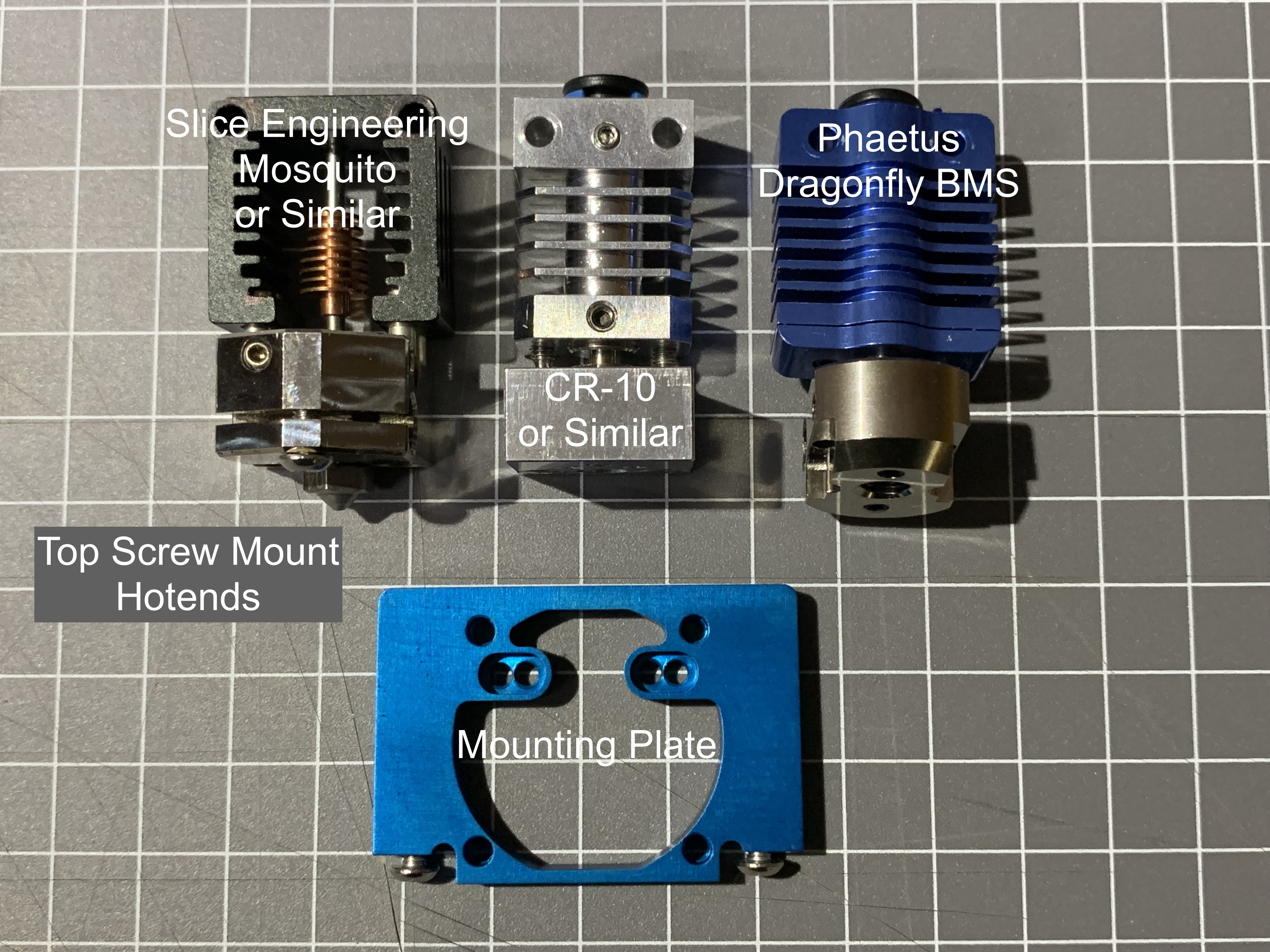

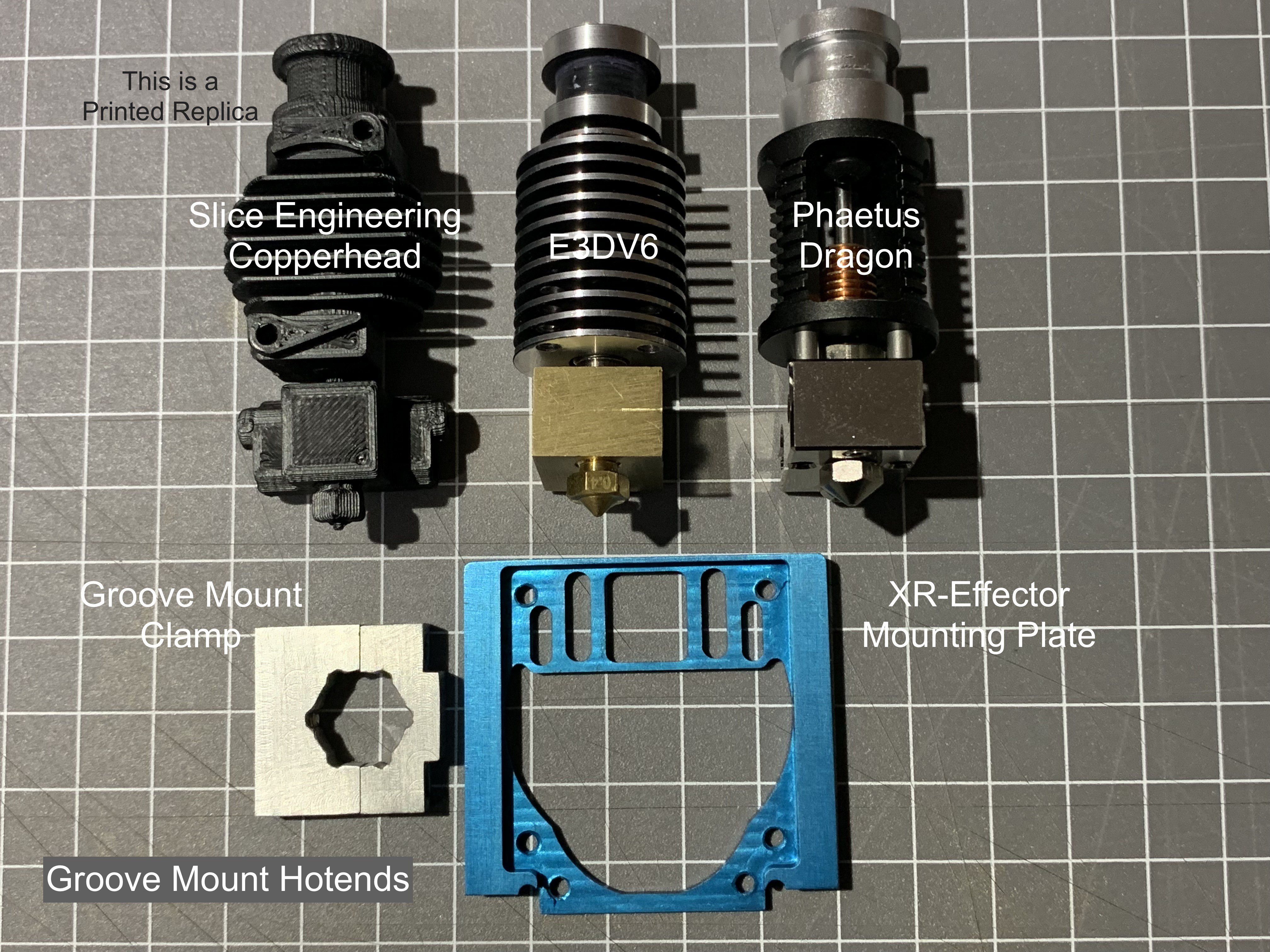

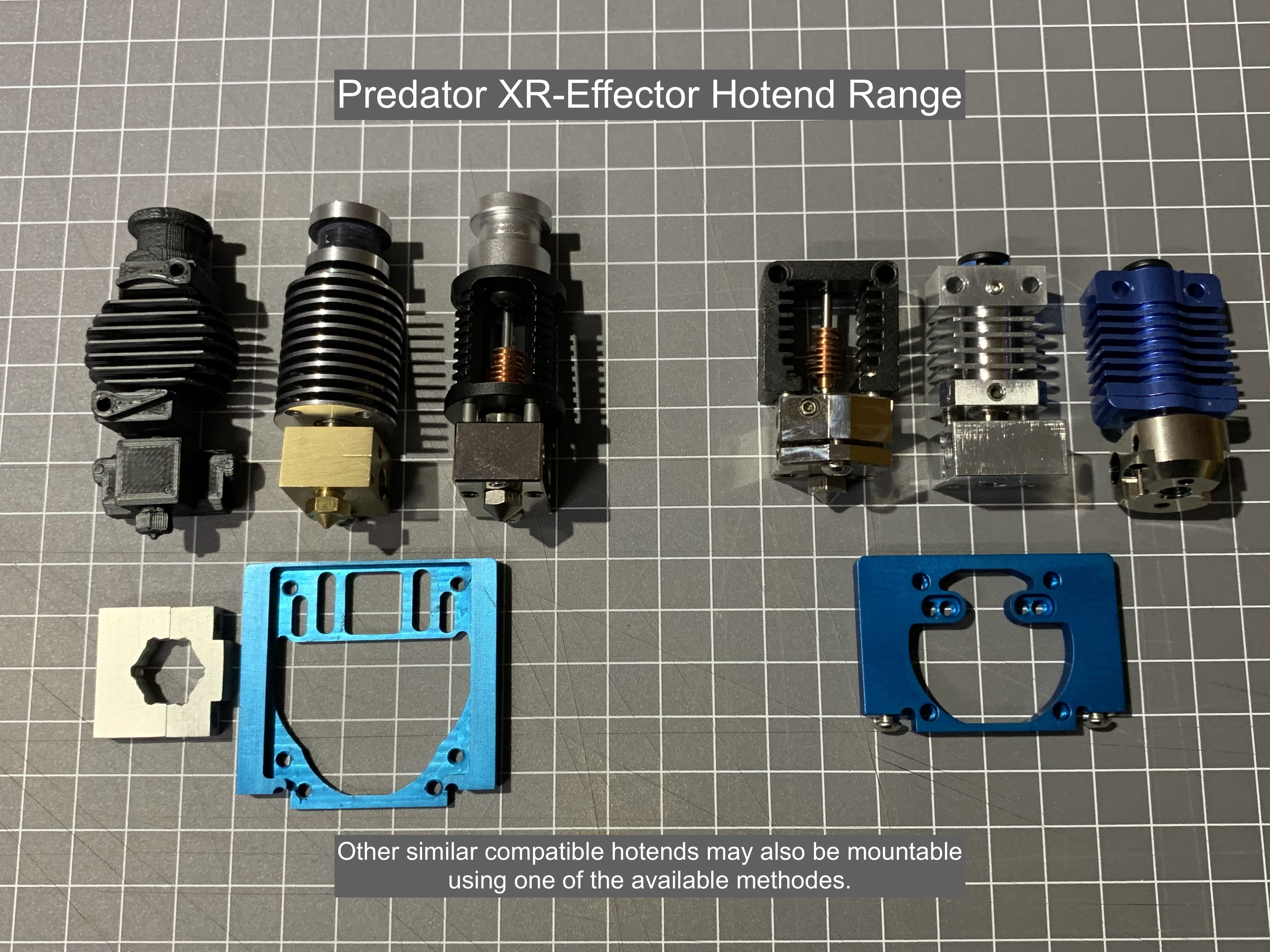

The XR-Effector is a update to the Mosquito Effector V9. Now the one effector can accommodate not only Mosquito, CR10 and Dragonfly BMS Hotends but also a range of Groove Mount Hotends such as an E3DV6, Phaetus Dragon, Slice Engineering Copperhead plus other similar types.
Please note that all the information and downloads provided on this page are intended for personal use only.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
Page Created
Date 18/7/2021
Updated 1/9/21
Date 18/7/2021
Updated 1/9/21
DOWNLOADS
Complete set of assembly Images
XR-EFFECTOR V1
Click Image to play the video

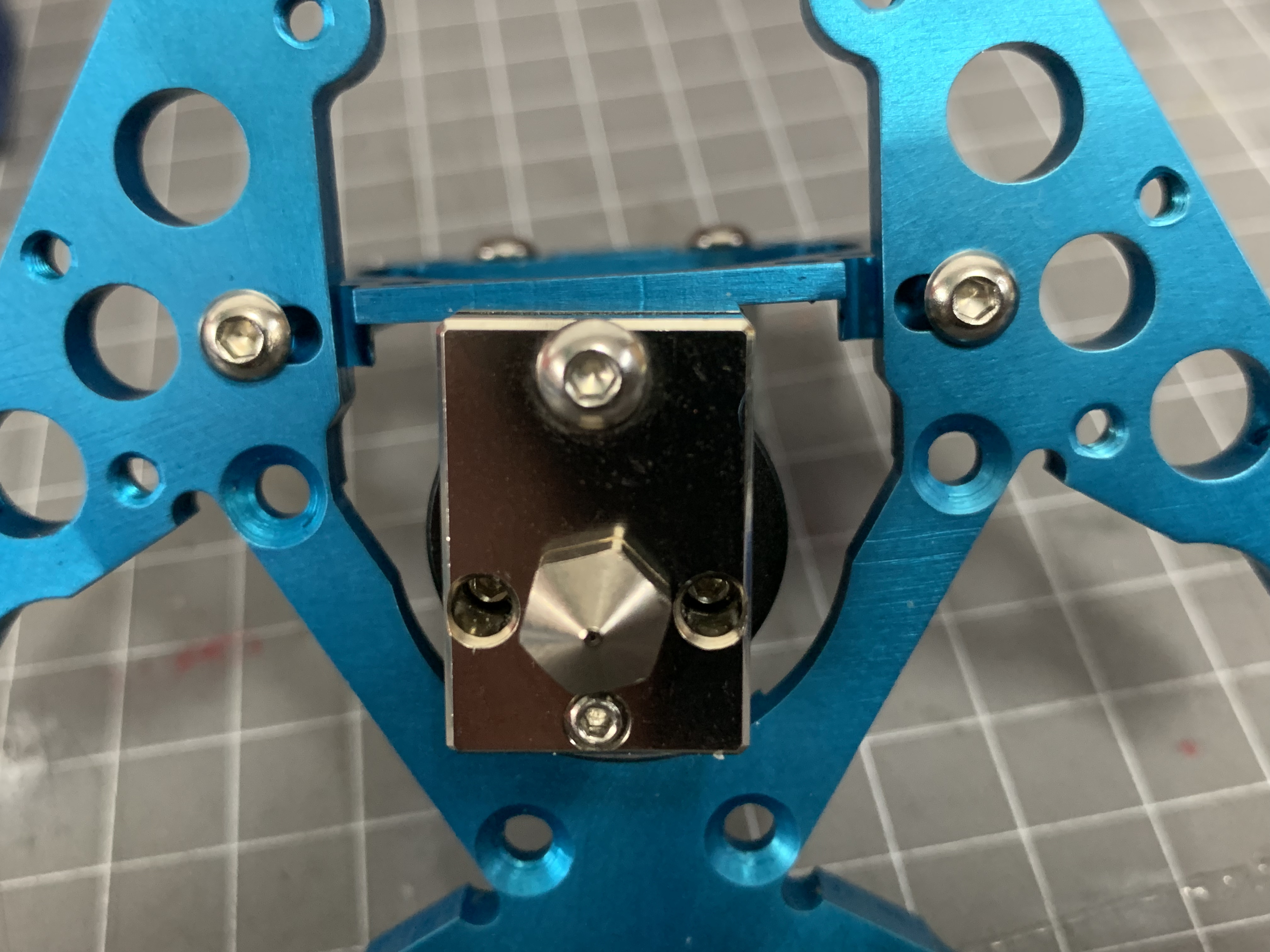

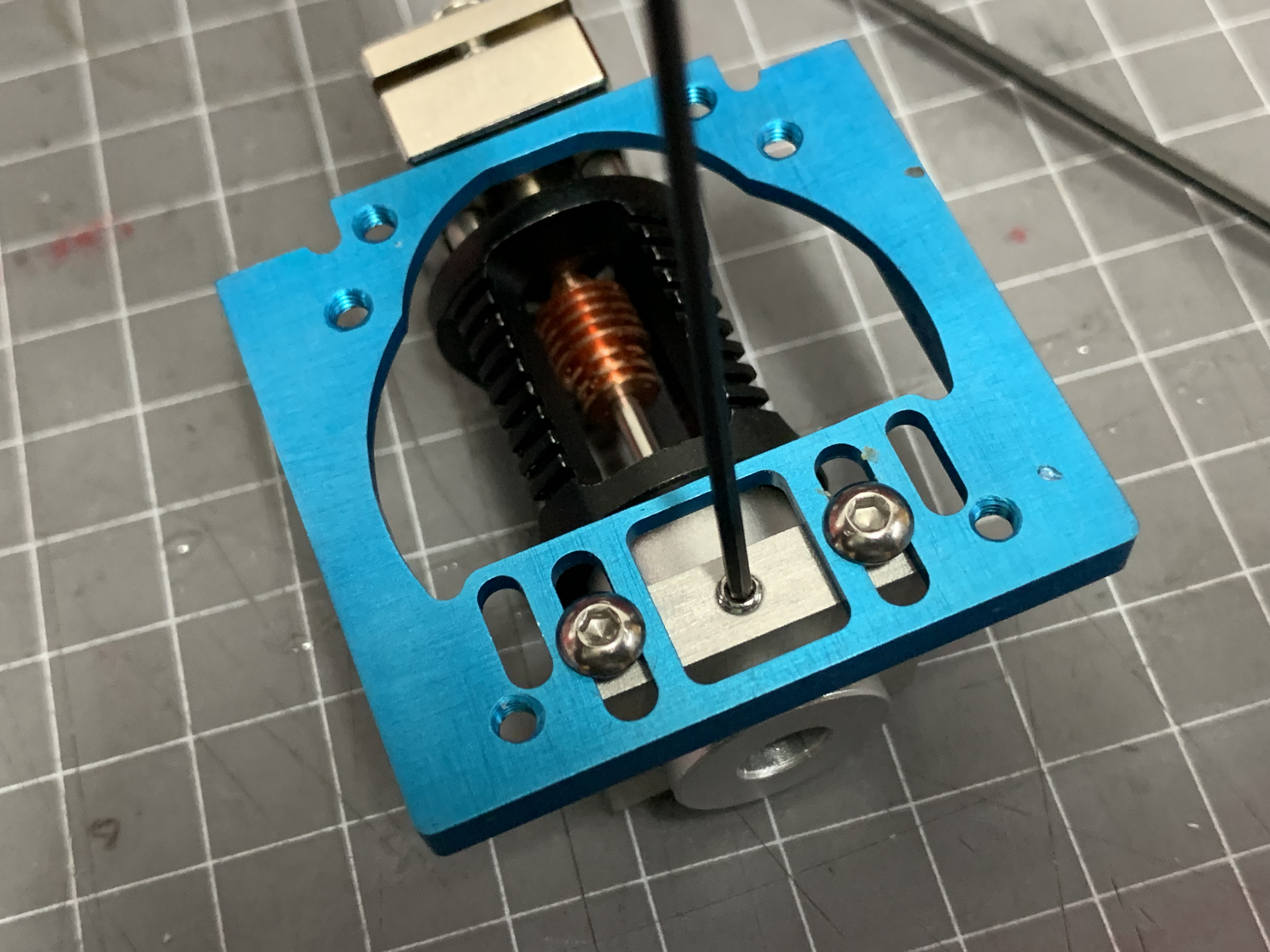

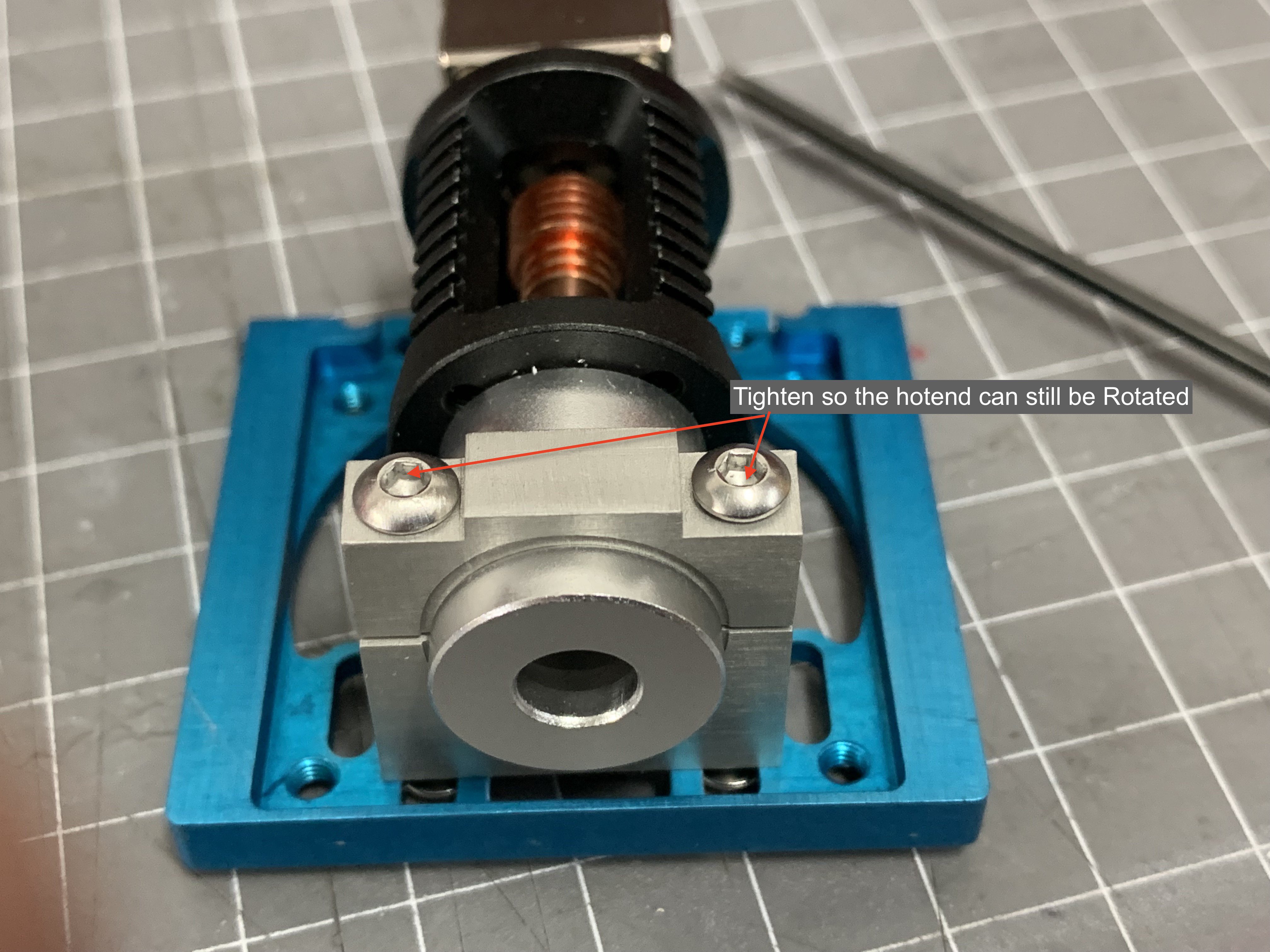

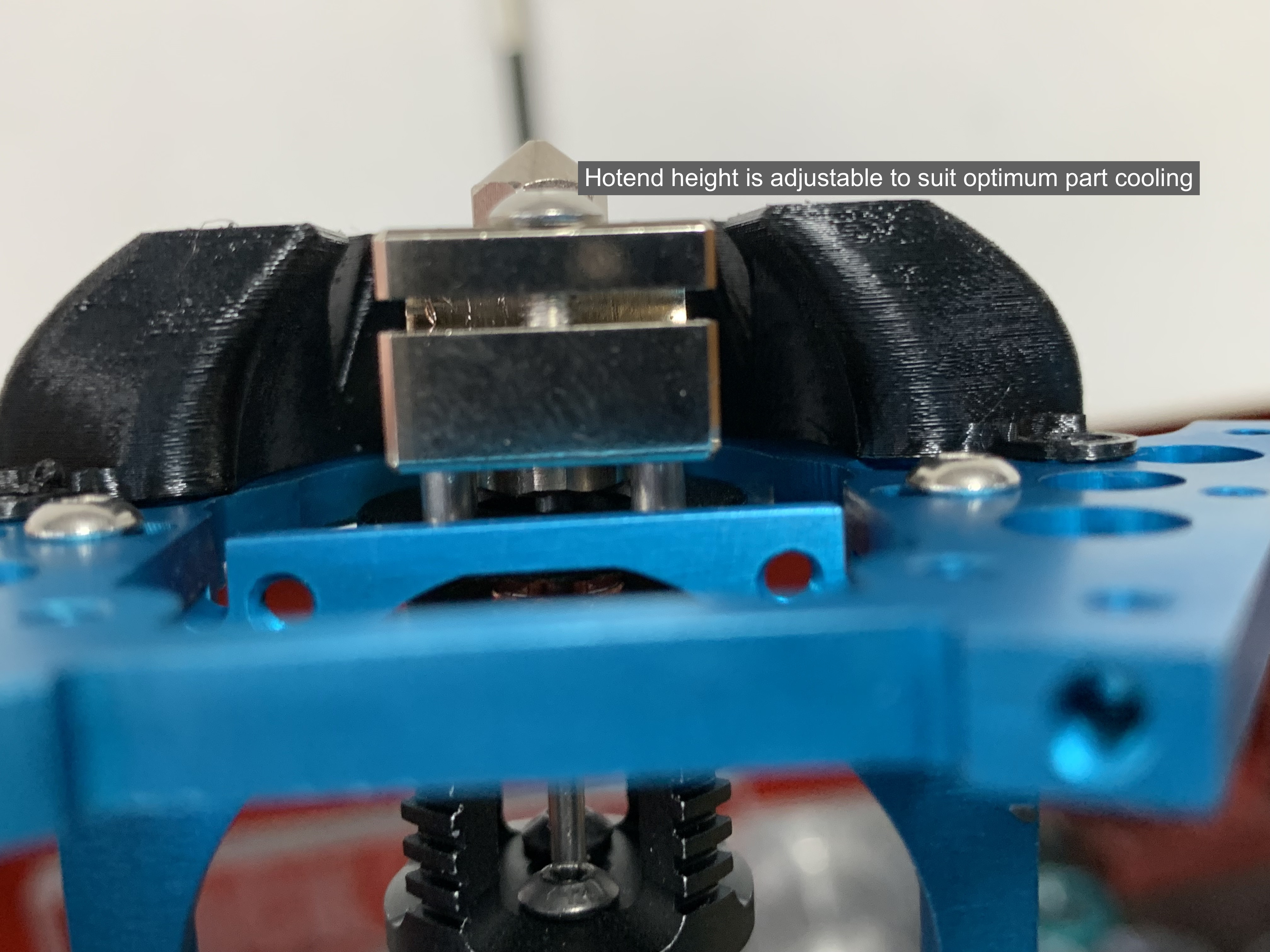

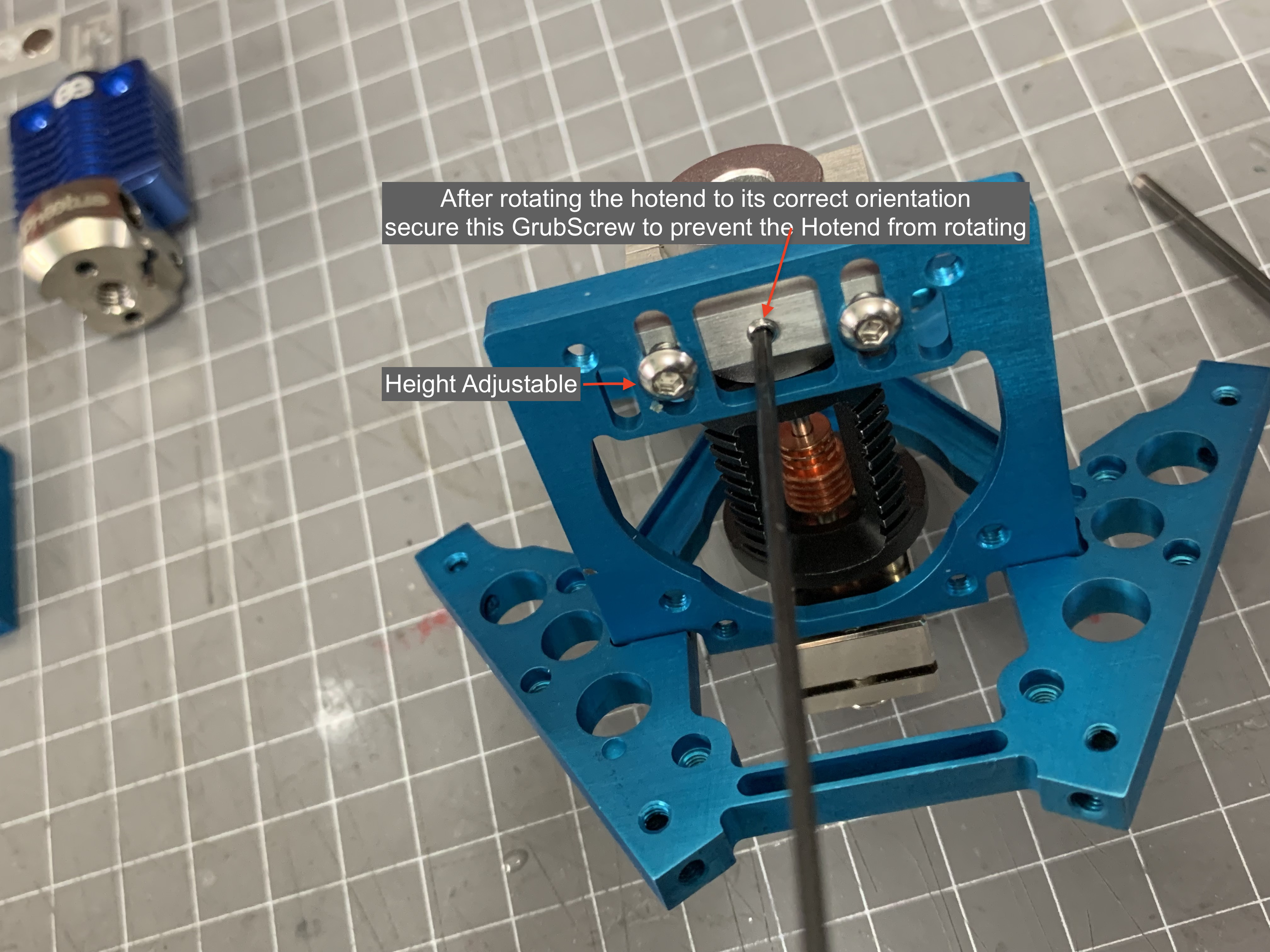

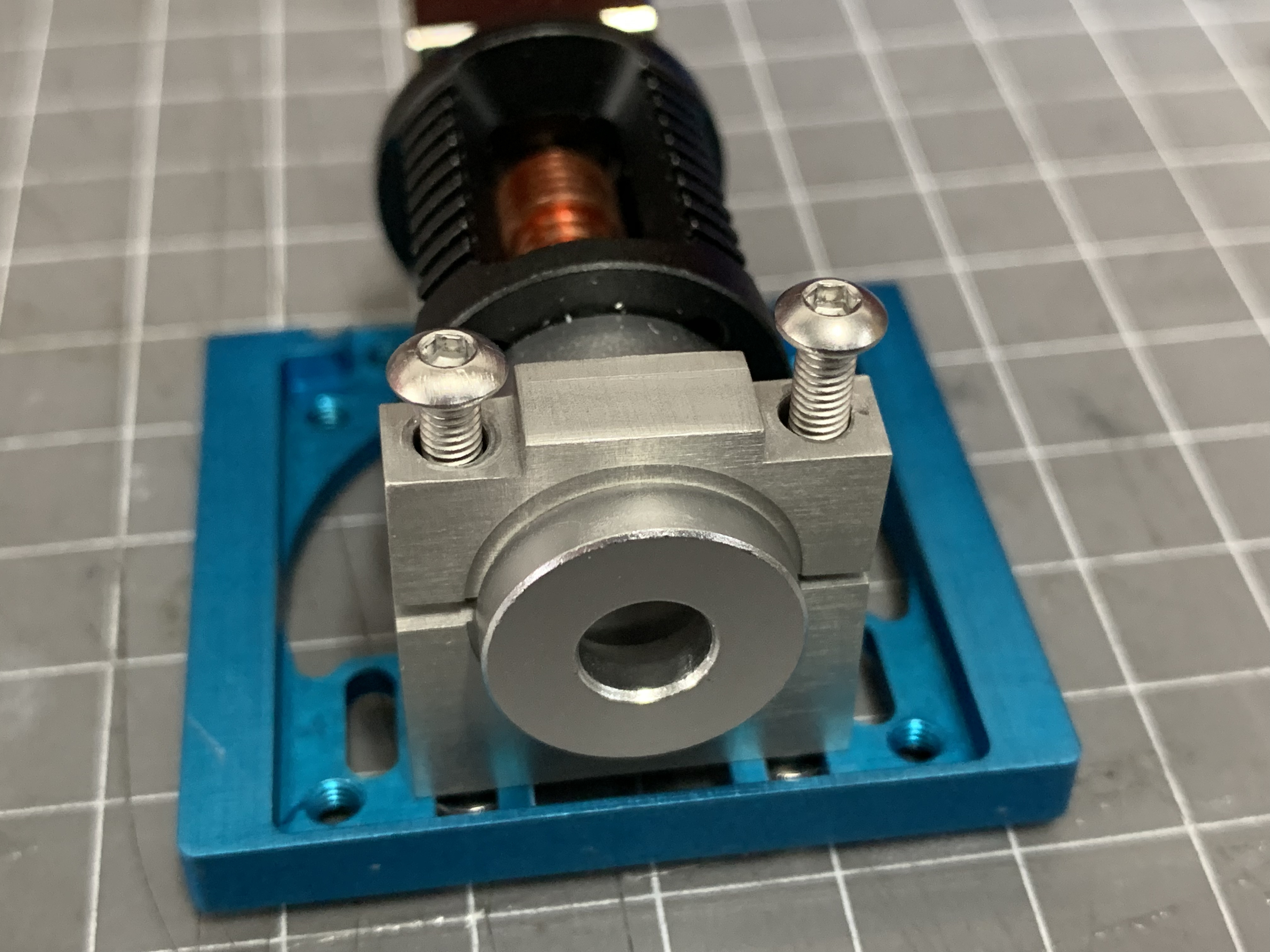

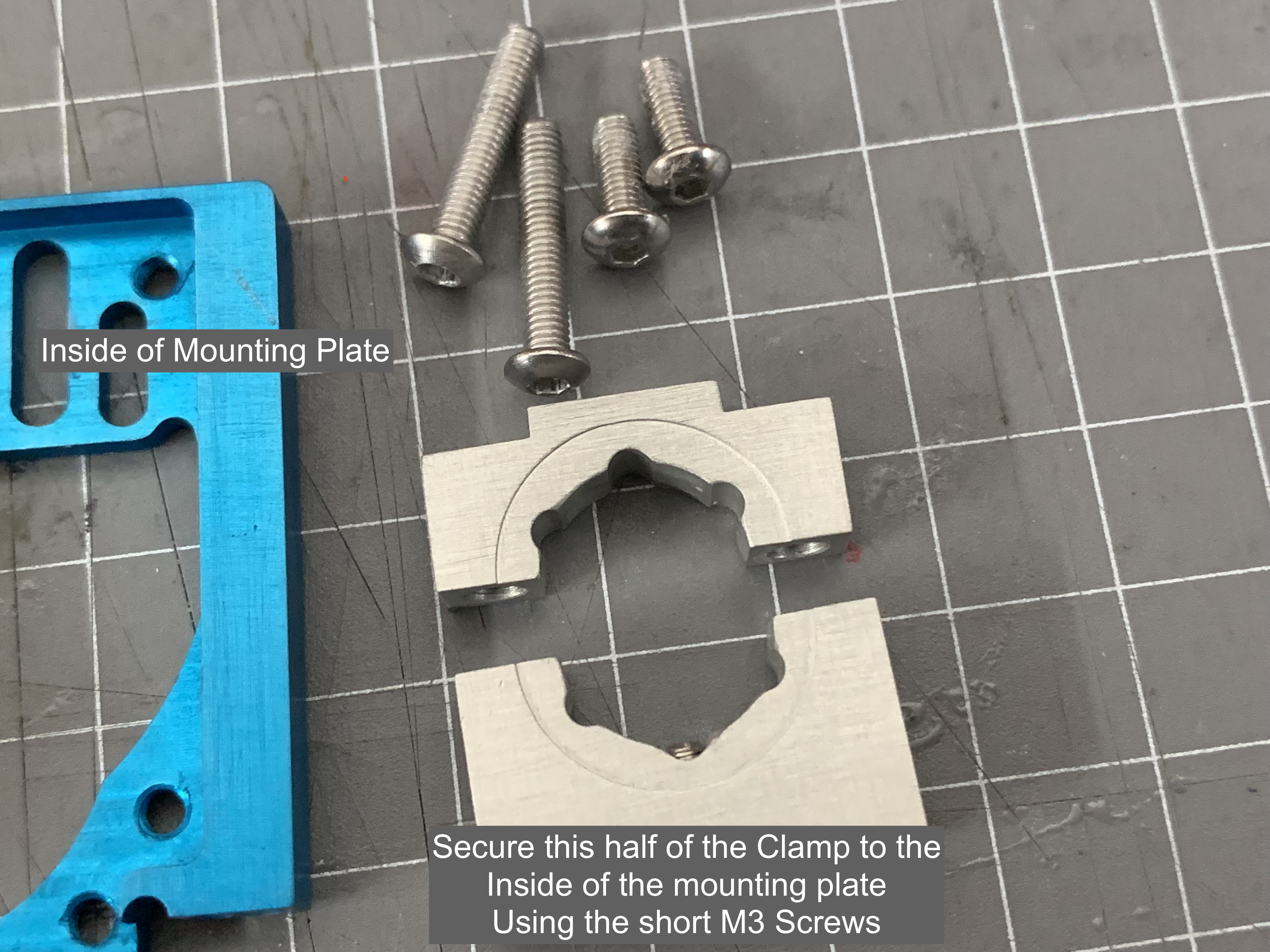

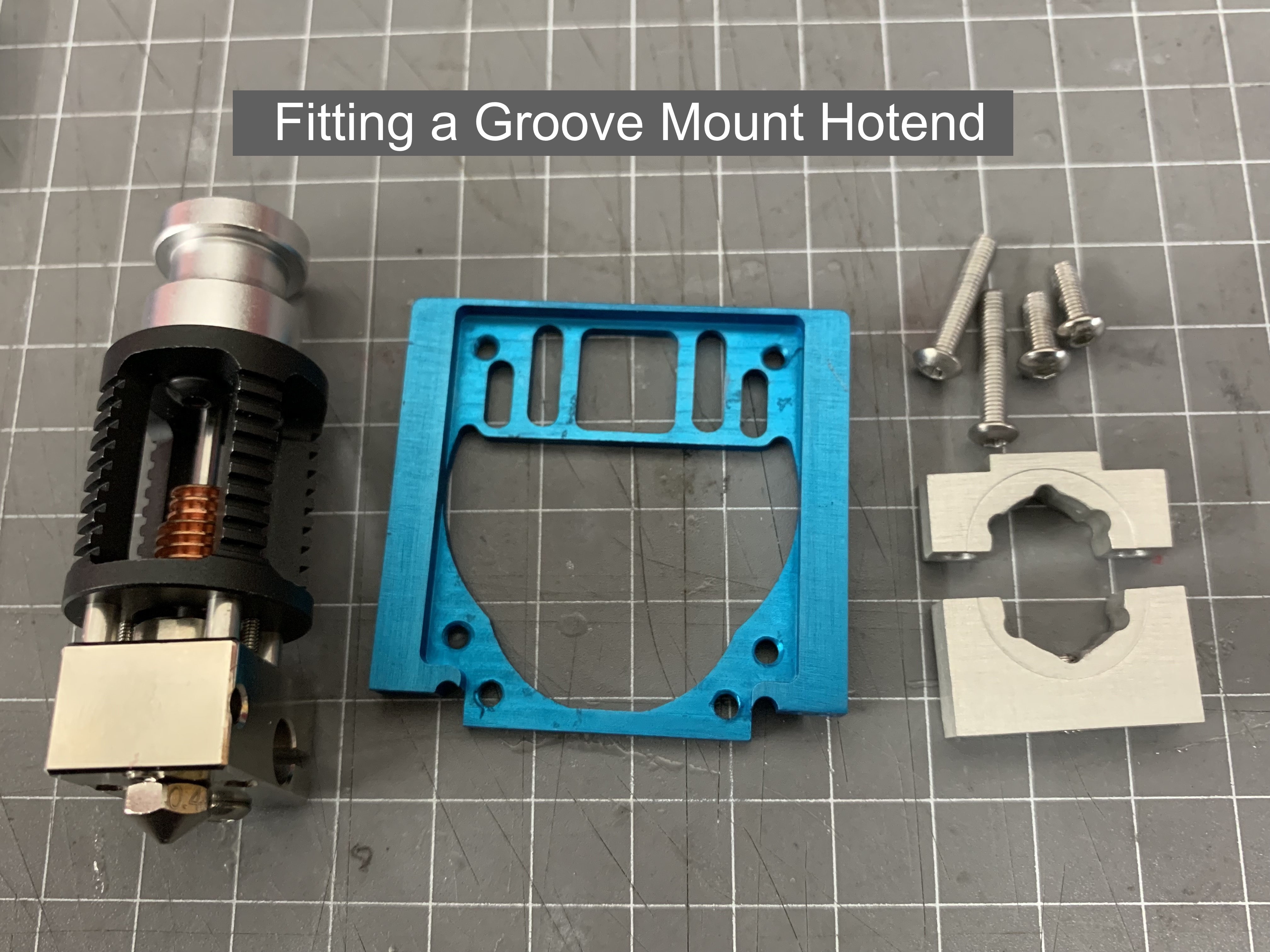

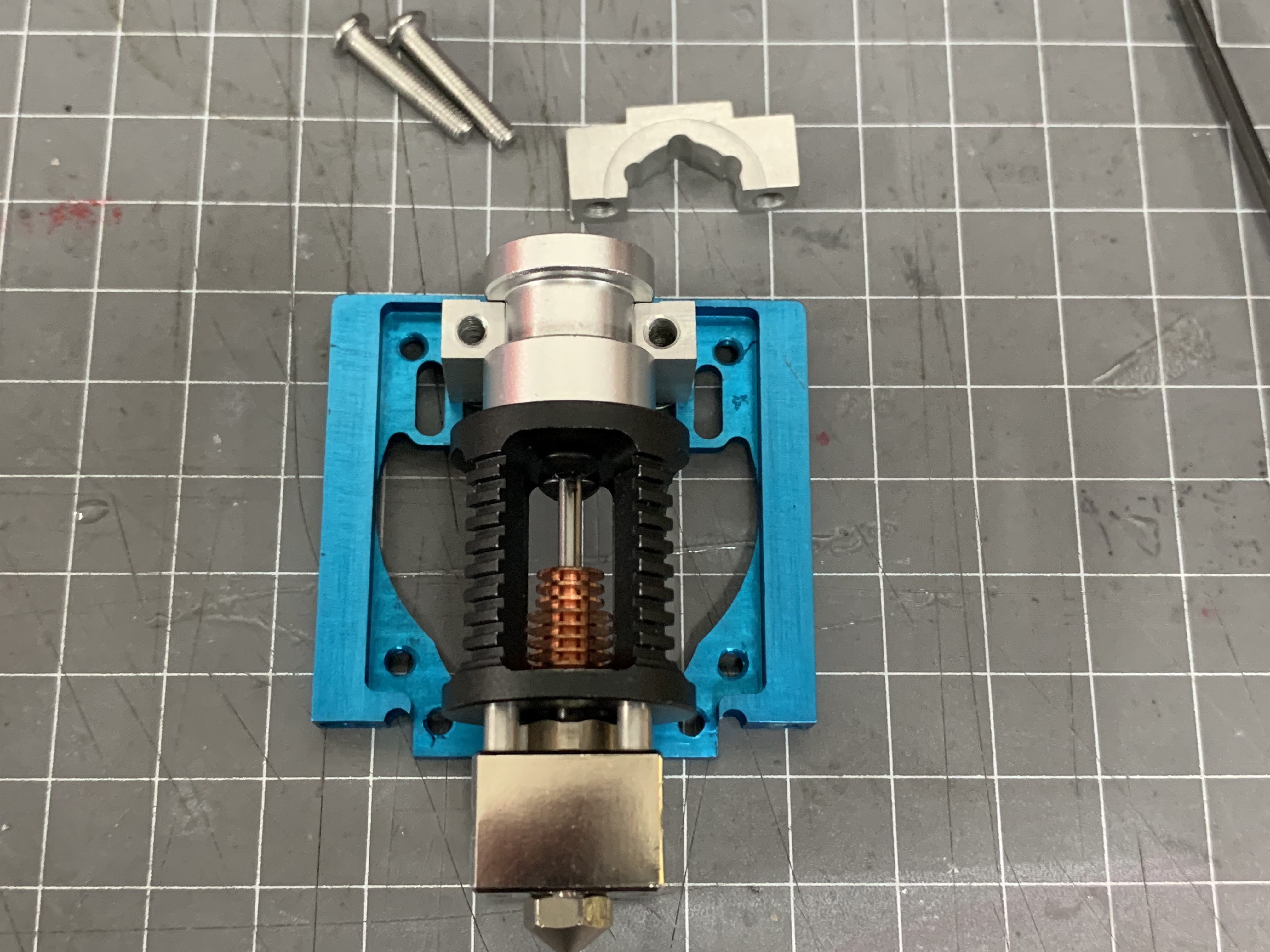

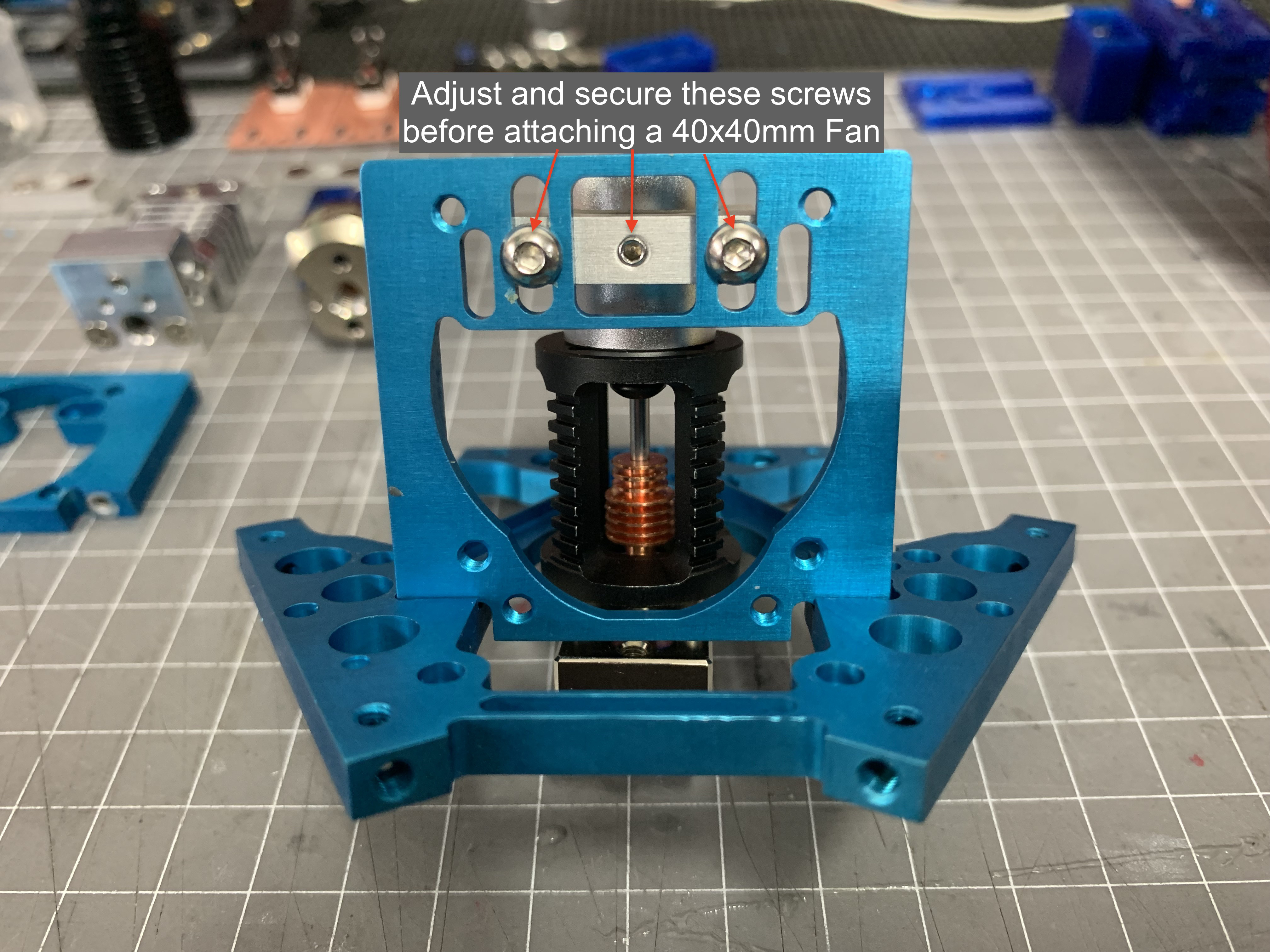

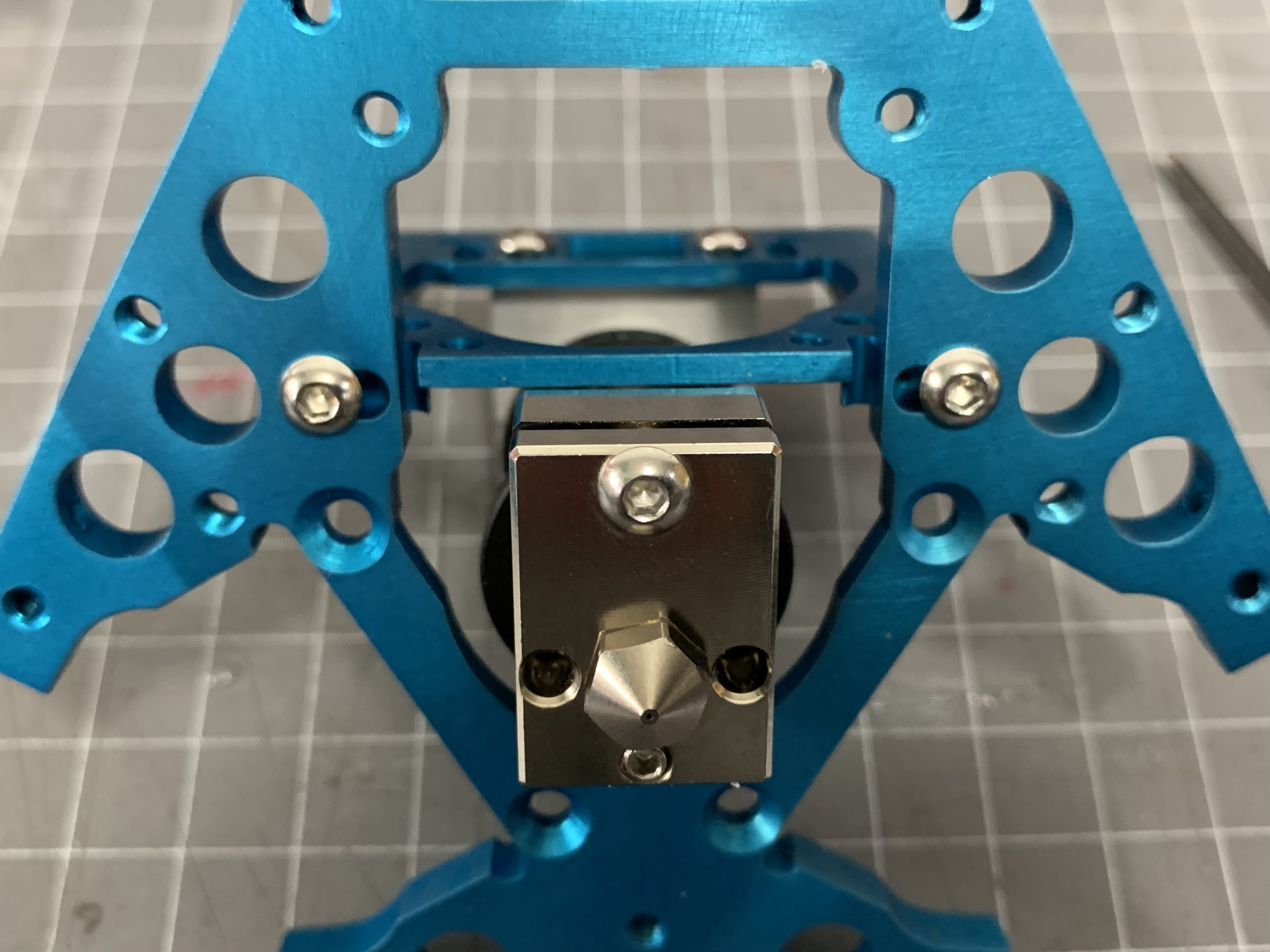

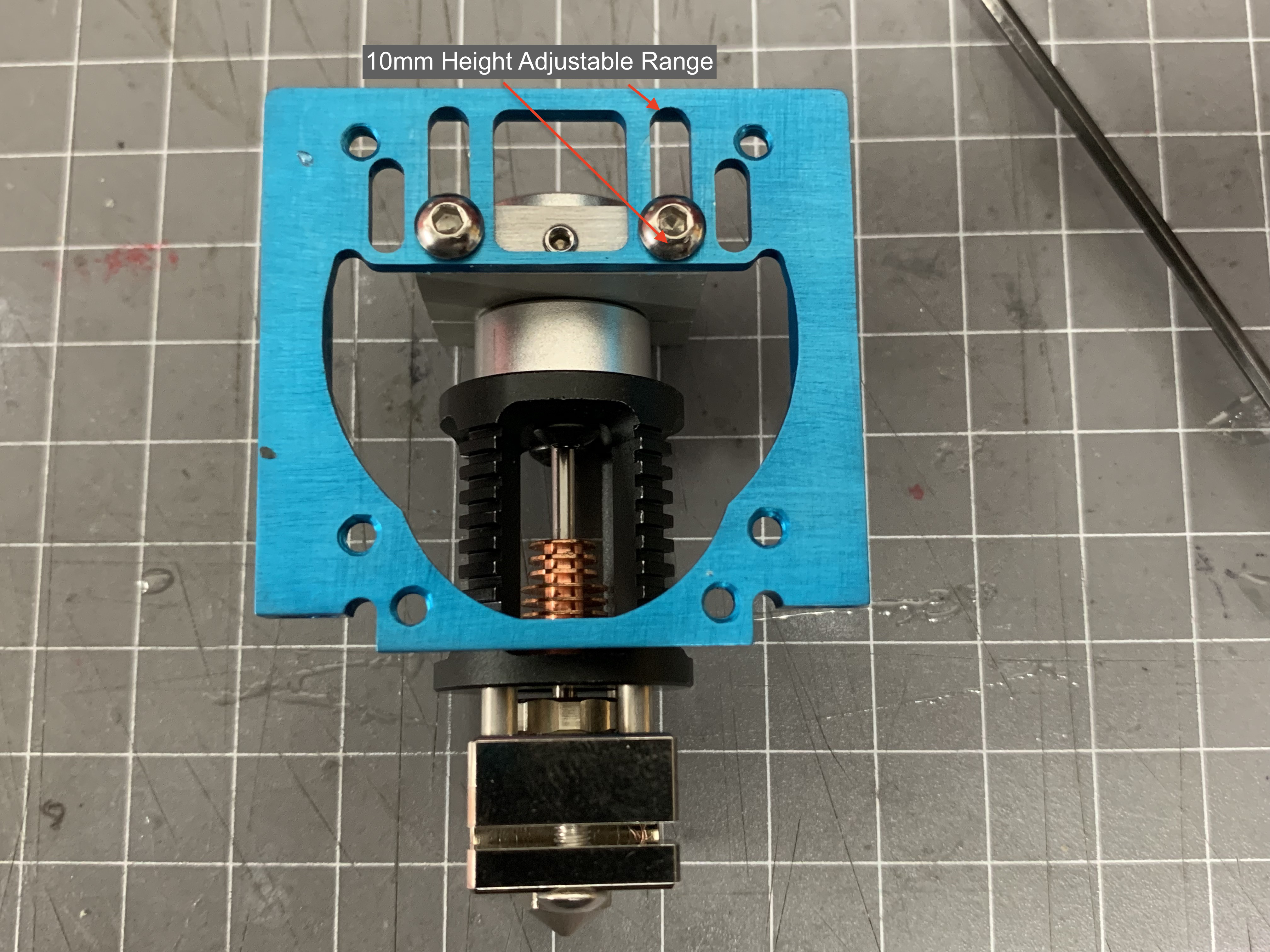

These images are an example fitting a Phaetus Dragon Hotend.
Click an Image for a larger view
Click an Image for a larger view
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

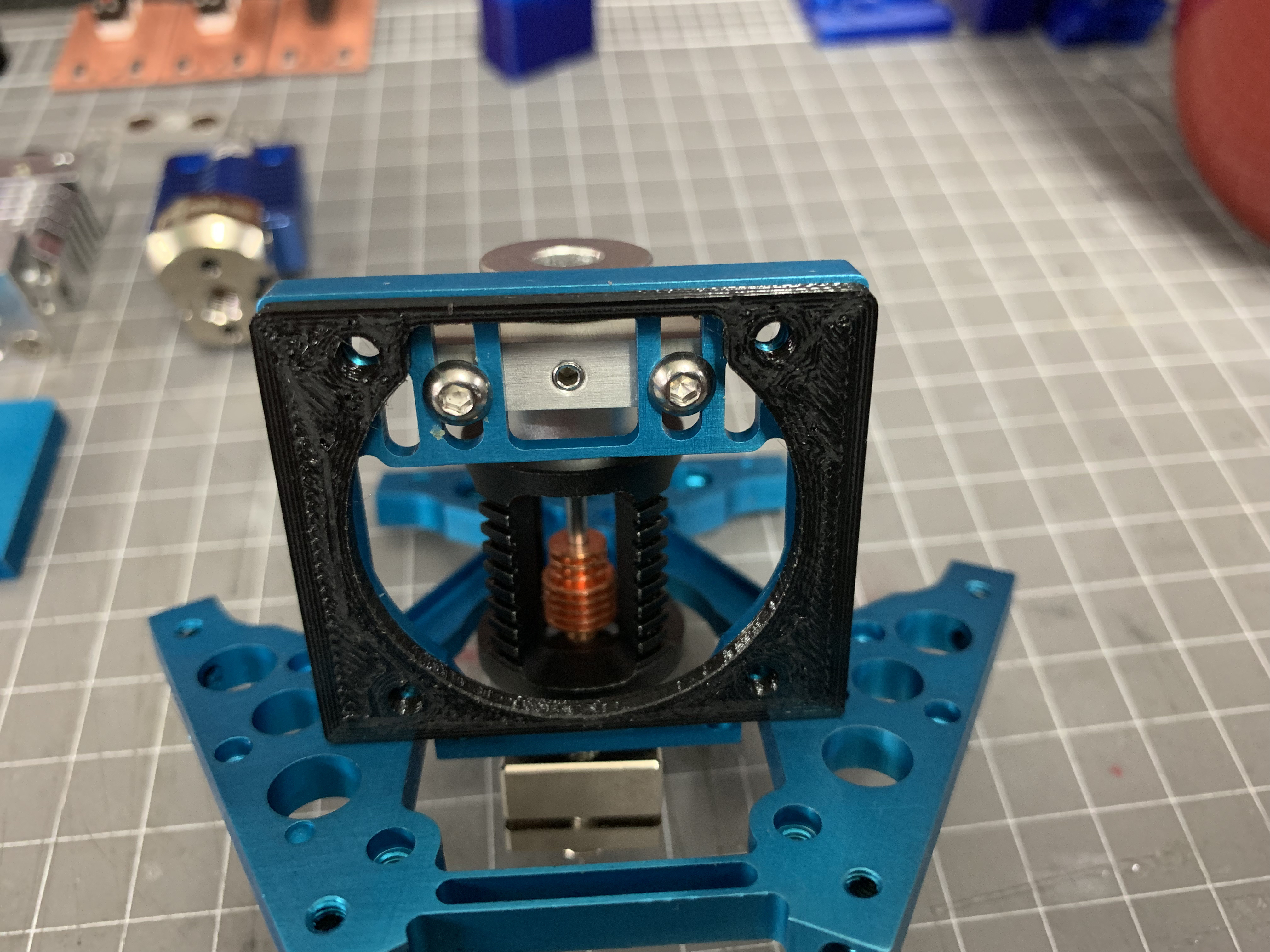

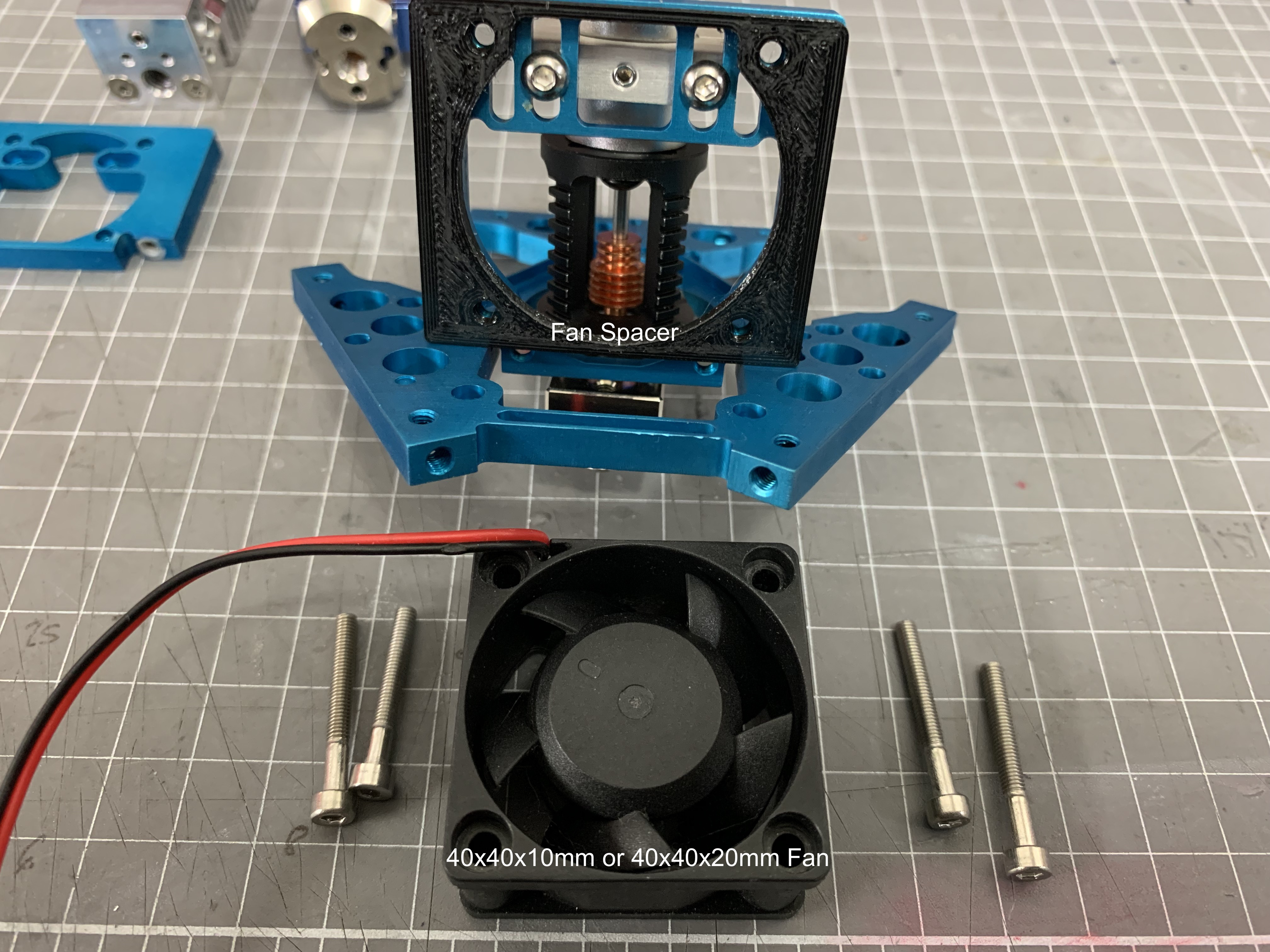

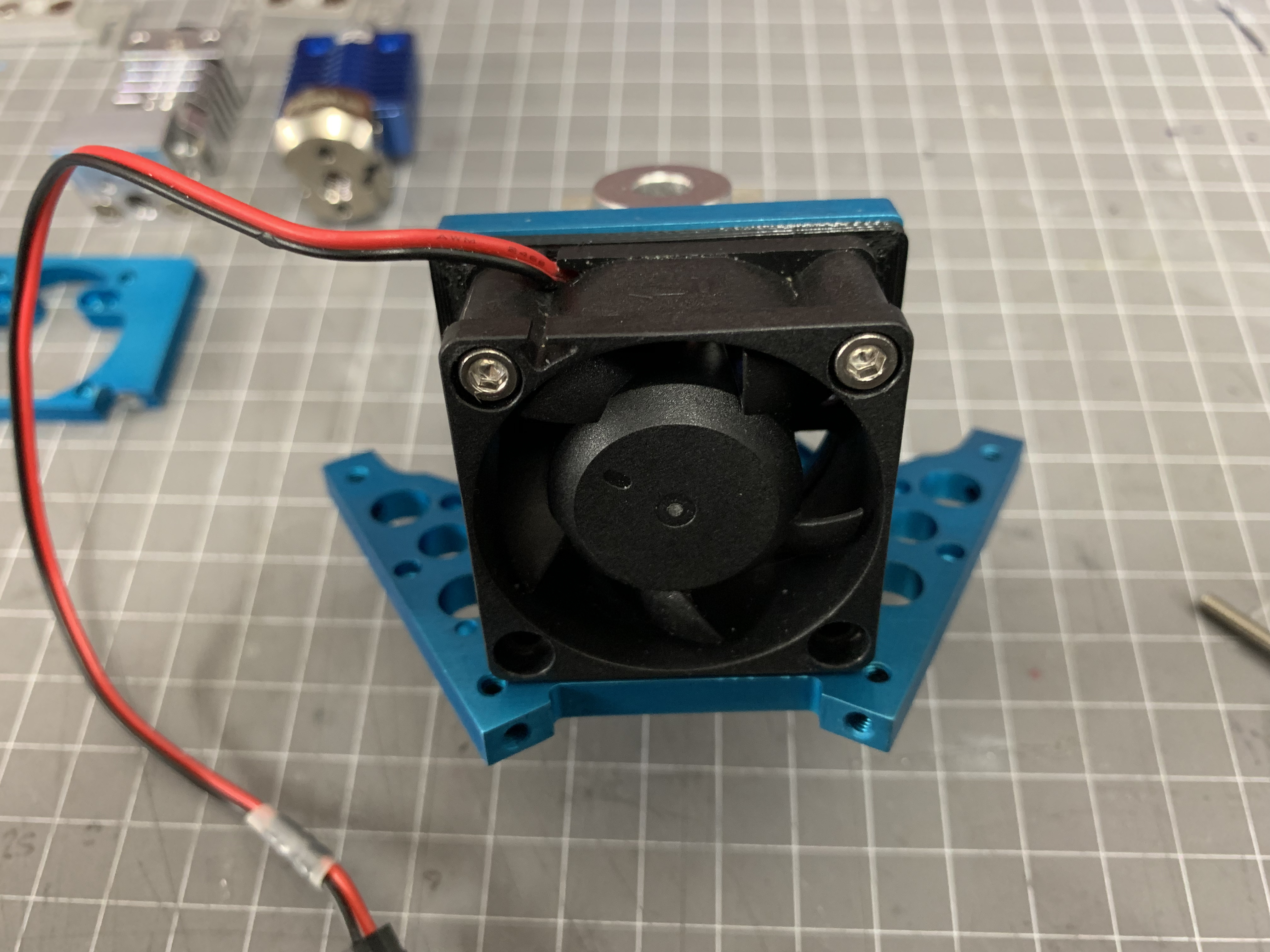

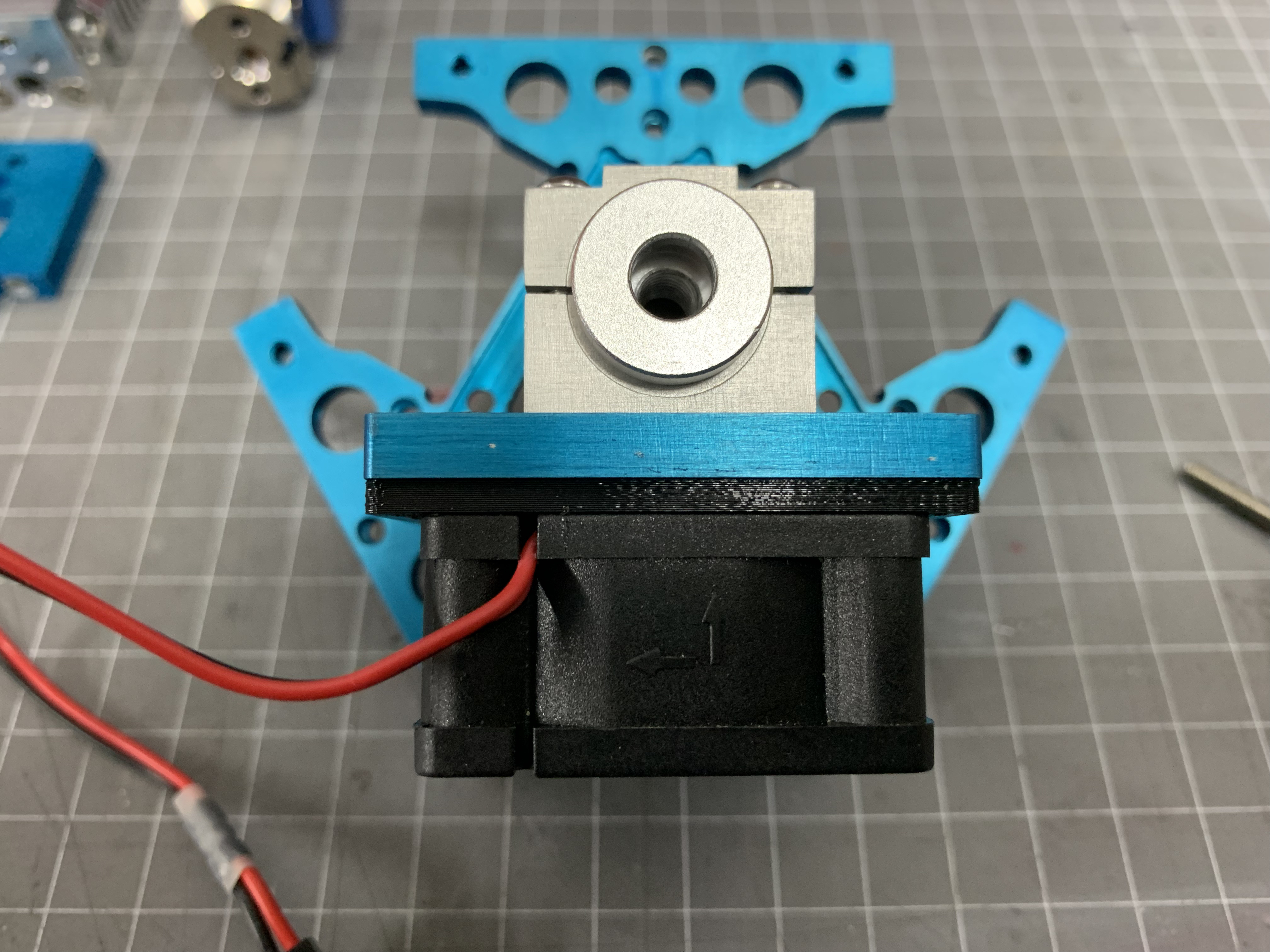

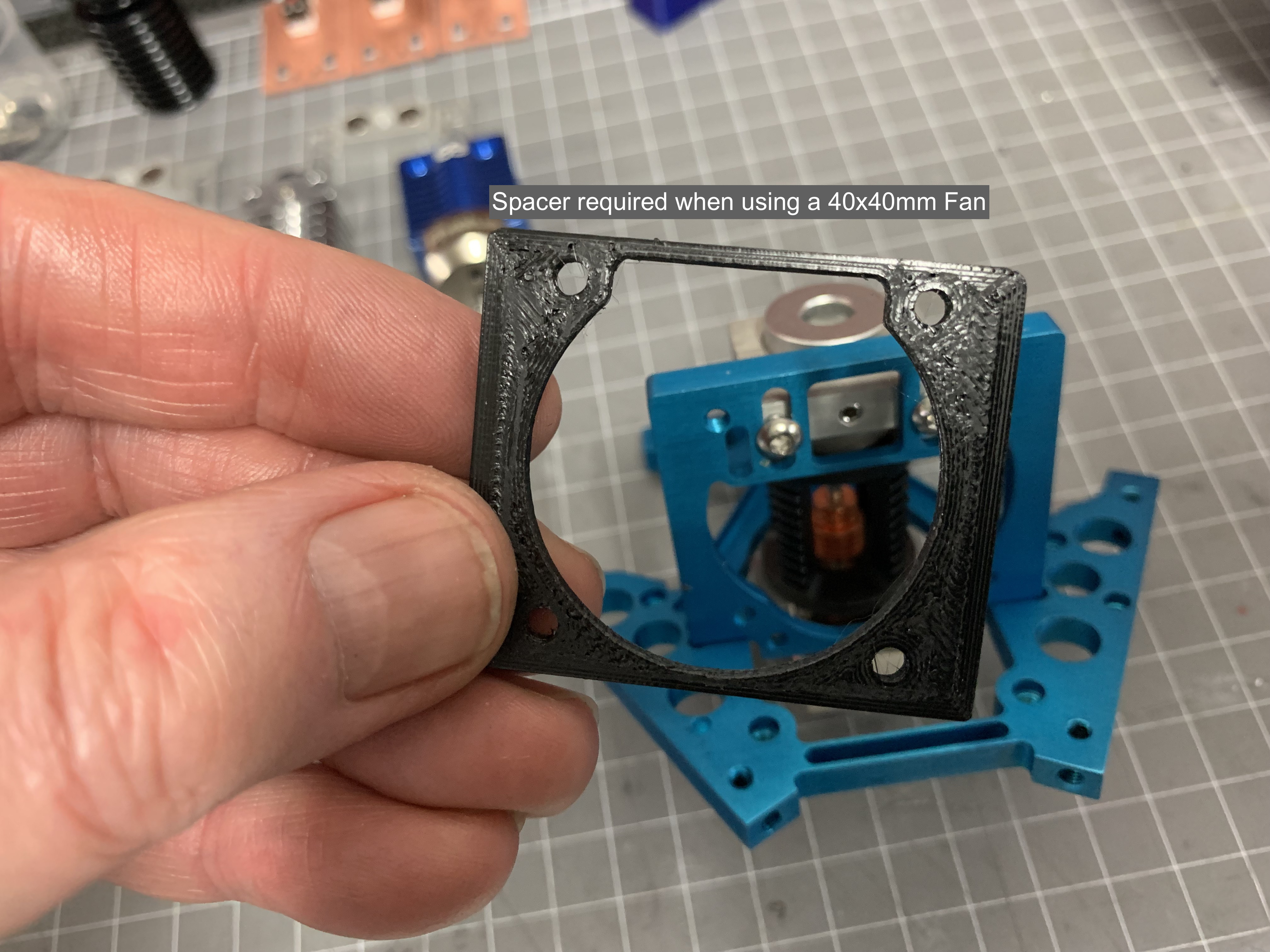

40x40mm Fan Spacer.stl

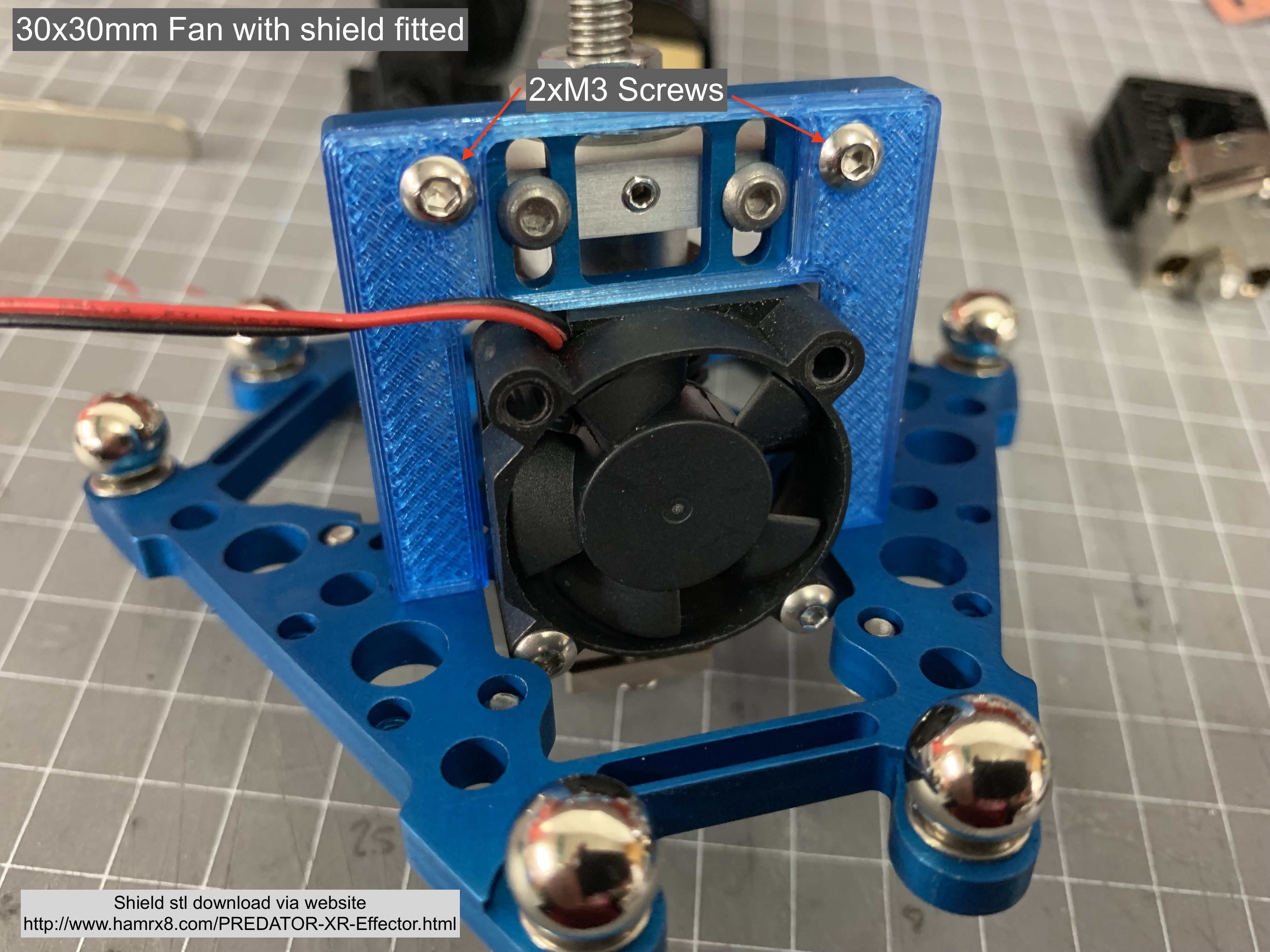

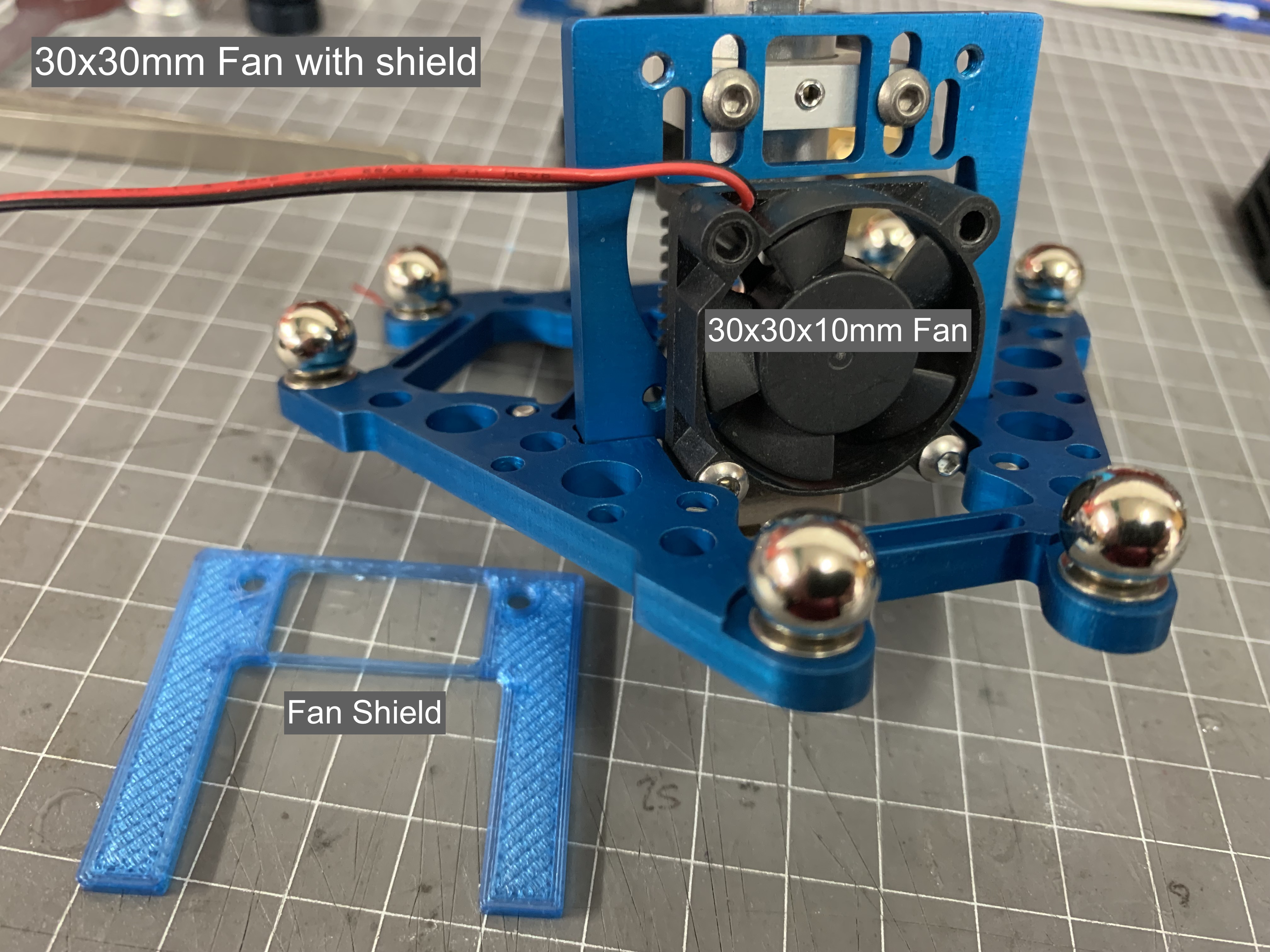

30x30mm Fan Shield

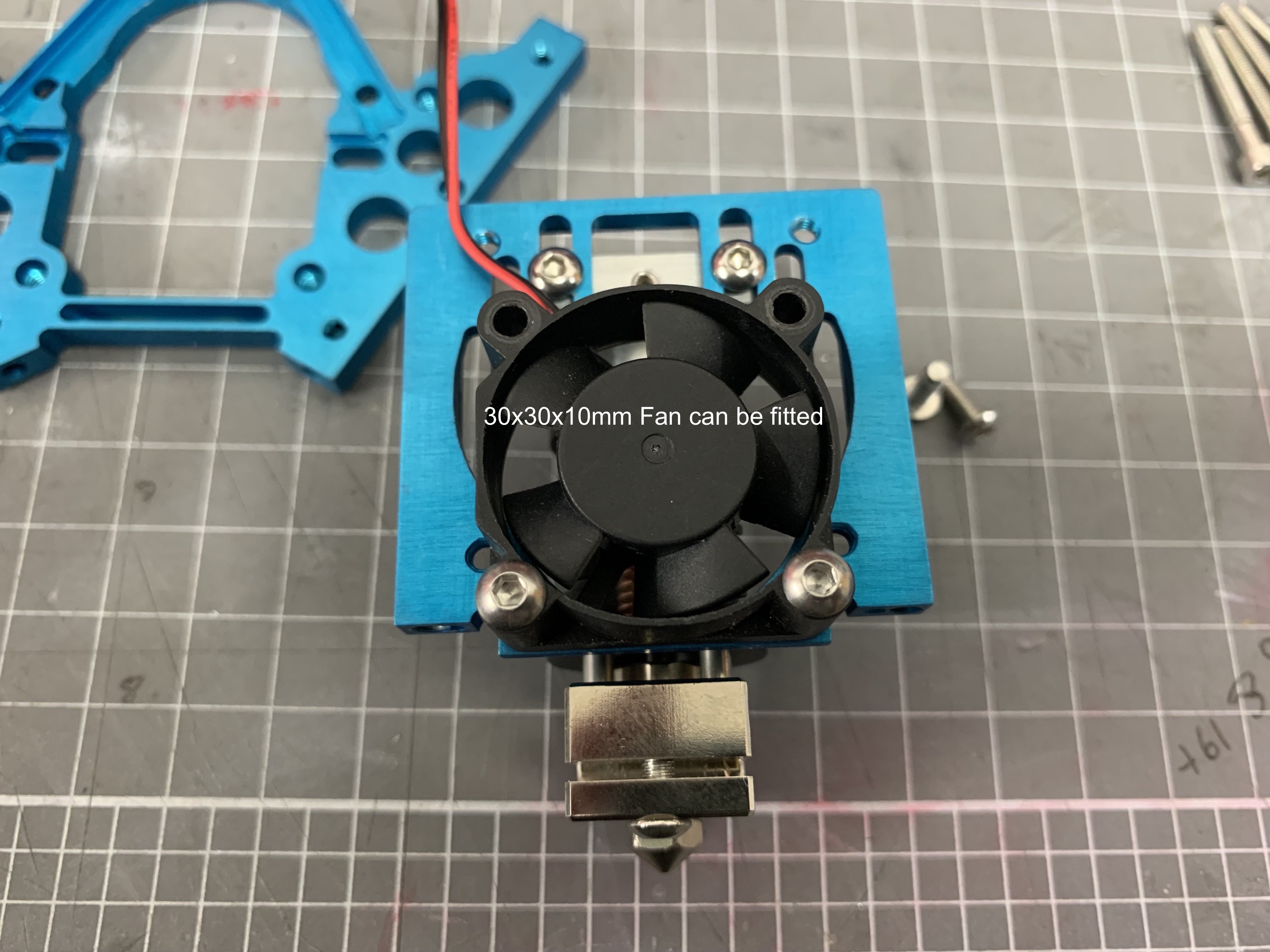

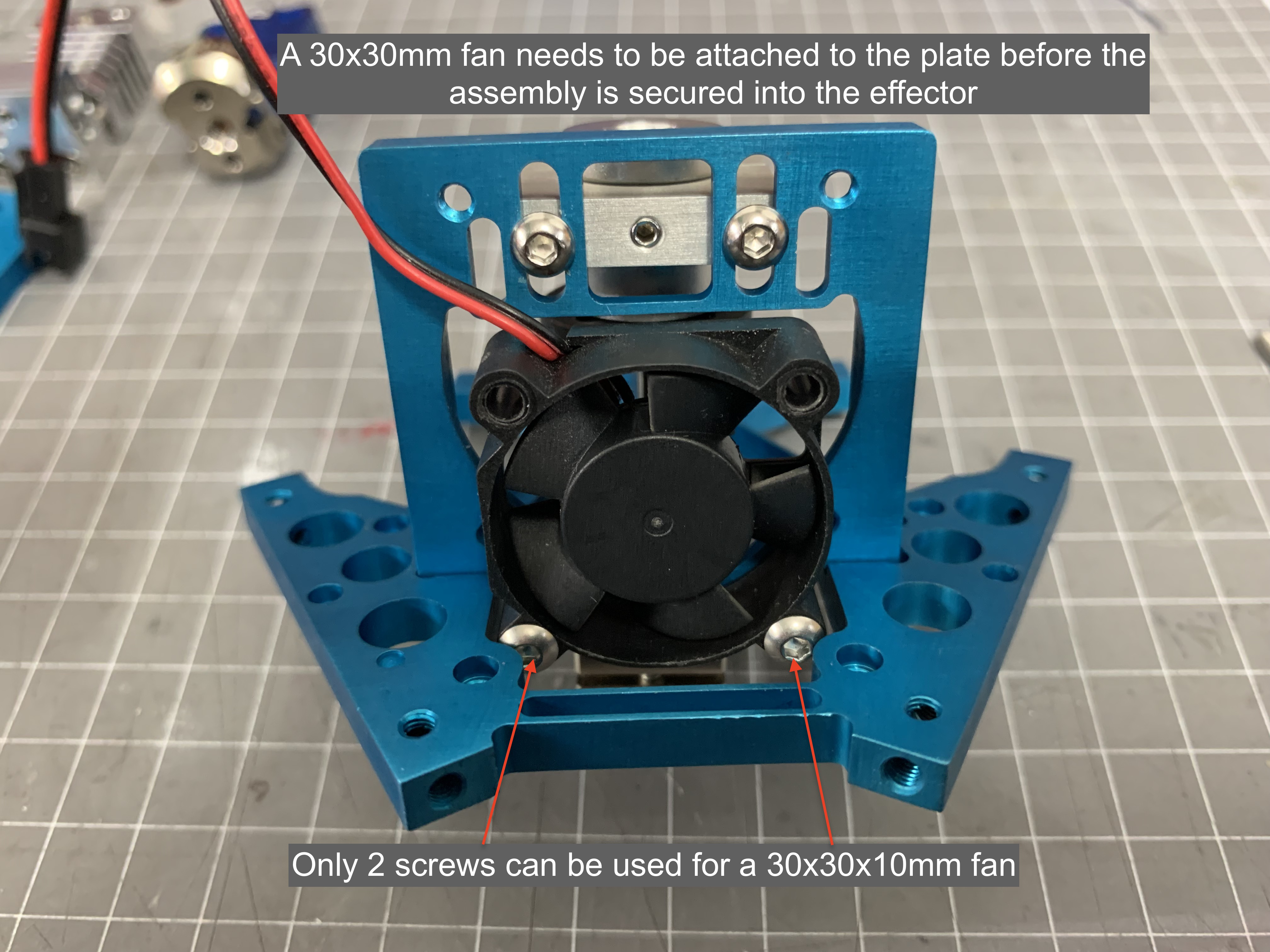

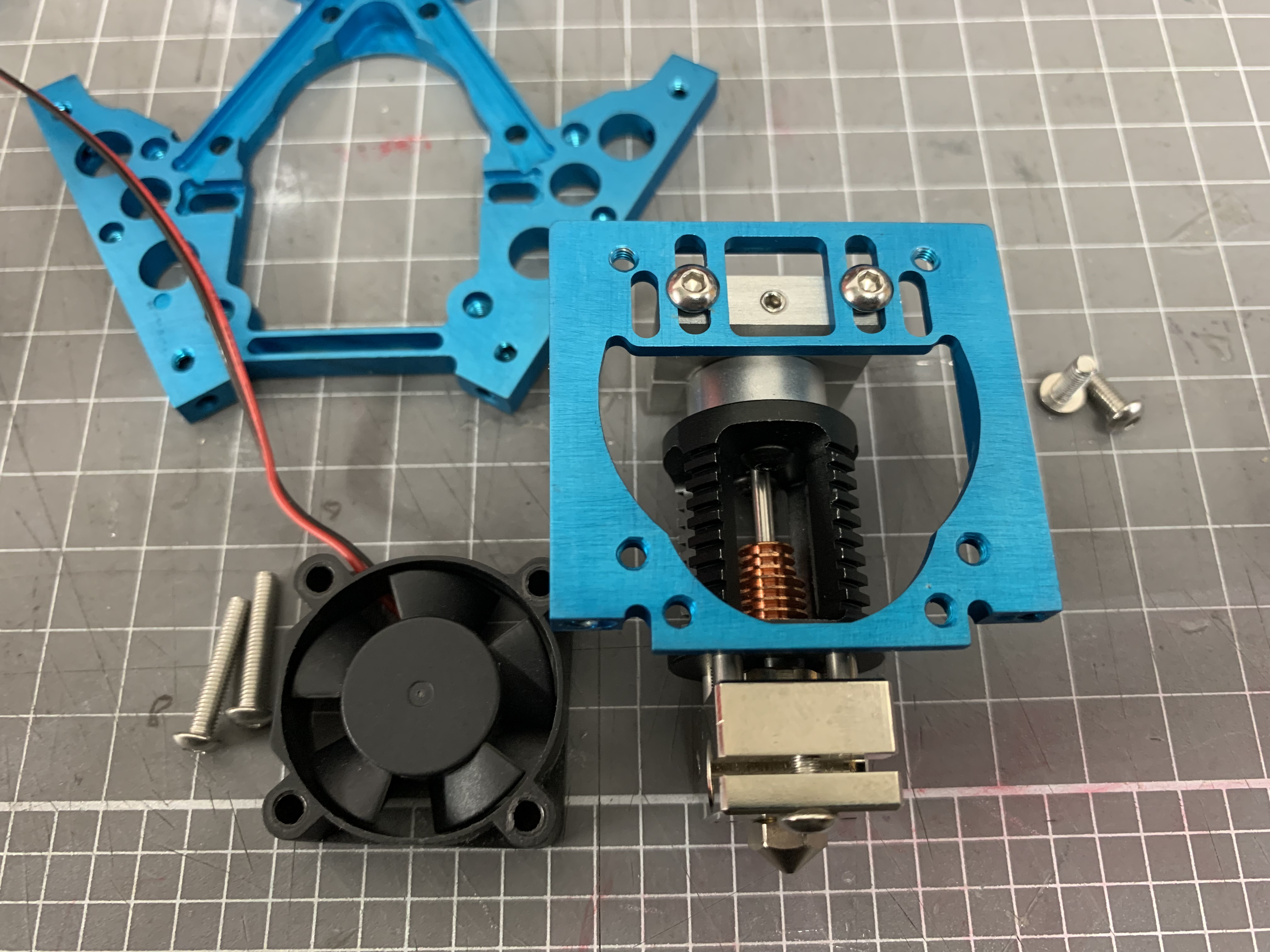

When fitting a 30x30mm cooling fan to the hotend mounting plate there will be space at either side as a result of the cutout in the plate made for a 40x40mm fan. In order to cover this I have made a shield to cover the empty space. If not provided the stl for this shield can be downloaded via the link below. The one advantage of fitting a 30x30 fan is that it allows easy access to the hotend vertical and rotational positioning screws. The disadvantage may be less hotend cooling efficiency. The choice of fan is optional depending on the type of hotend being used.
When fitting a 30x30mm cooling fan to the hotend mounting plate there will be space at either side as a result of the cutout in the plate made for a 40x40mm fan. In order to cover this I have made a shield to cover the empty space. If not provided the stl for this shield can be downloaded via the link below. The one advantage of fitting a 30x30 fan is that it allows easy access to the hotend vertical and rotational positioning screws. The disadvantage may be less hotend cooling efficiency. The choice of fan is optional depending on the type of hotend being used.
30x30mm Fan Shield.stl
