LARGE TWO LAYER LED EDGE LIT LOGO SIGN

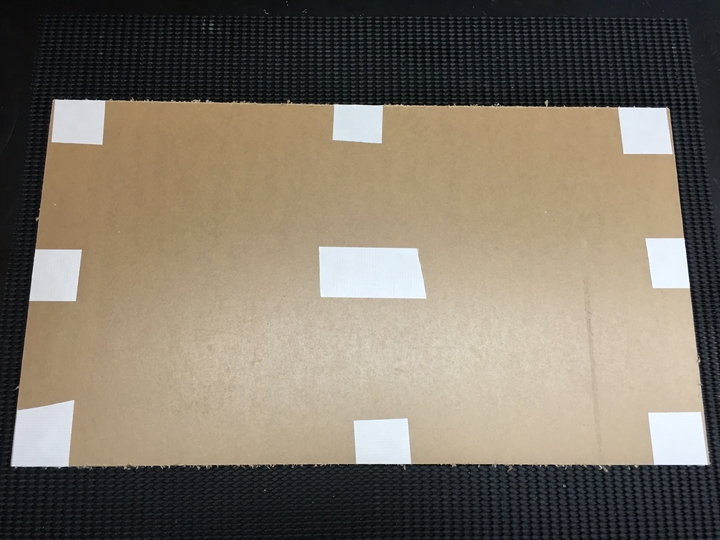

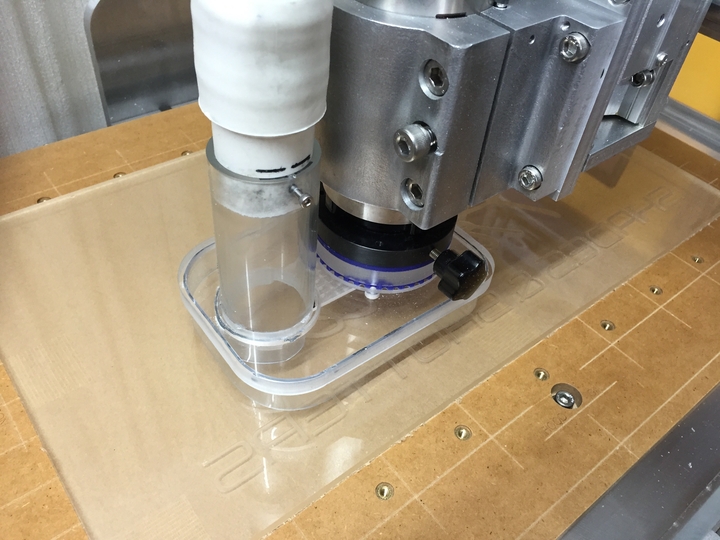

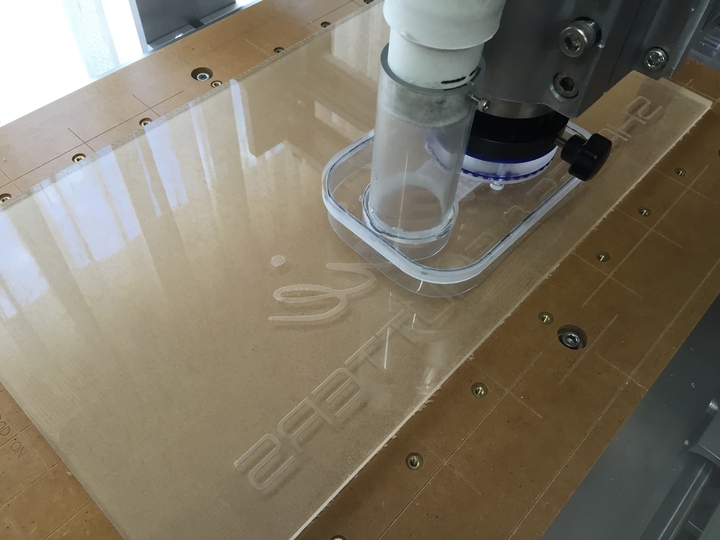

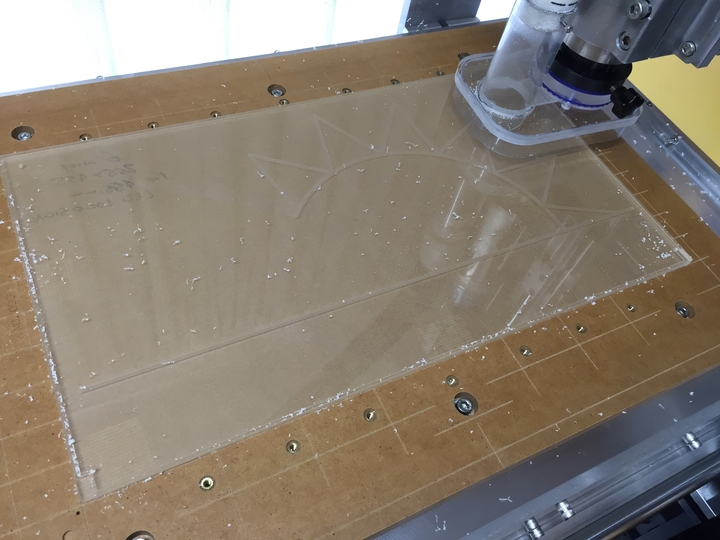

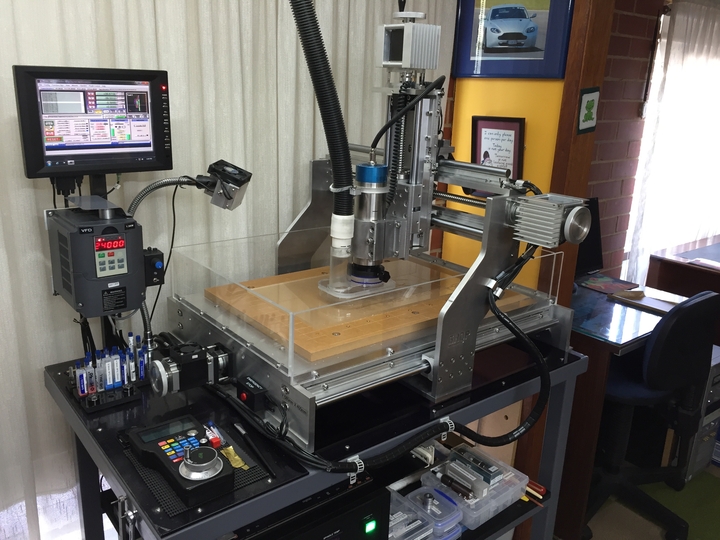

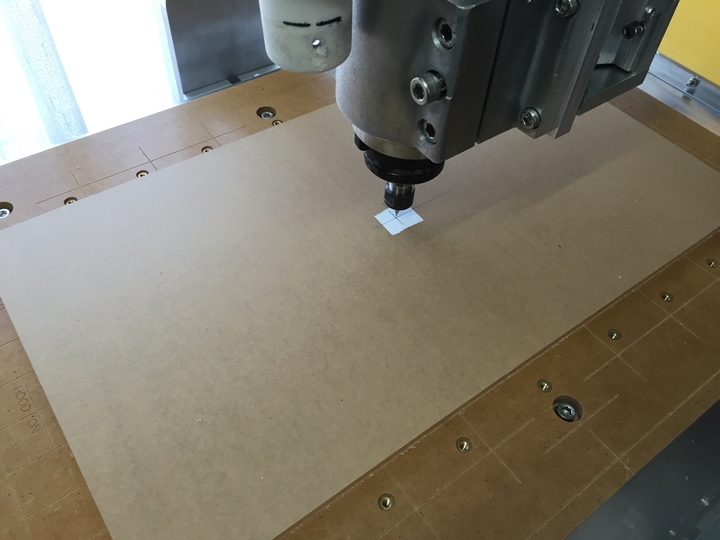

My CNC Router setup and ready to start DS Carpet tape to hold the sheet onto the MDF Router Bed. Seting the X & Y-Axis to the Centre of the Acrylic sheet The First Engraving run The Second Engraving run

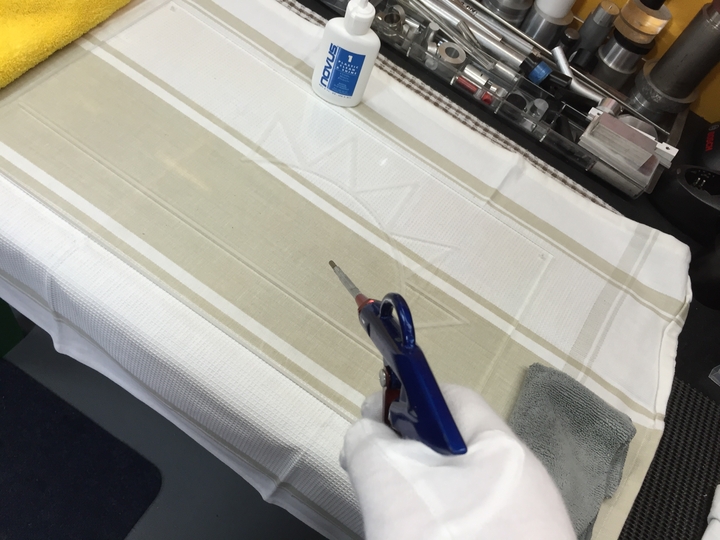

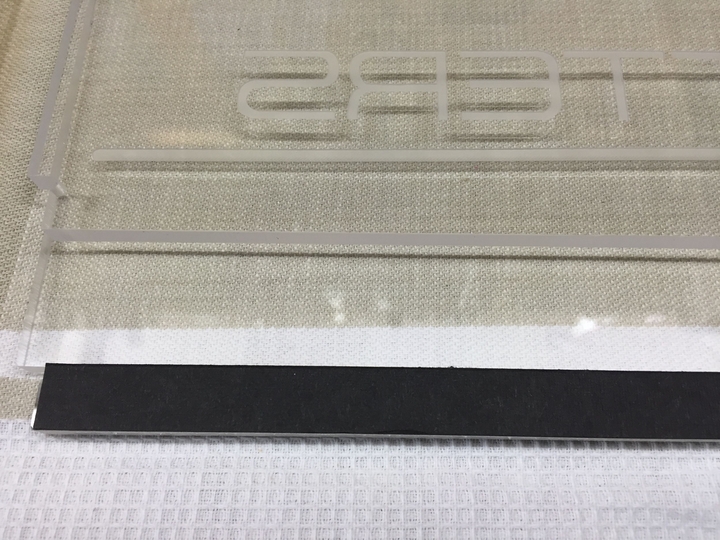

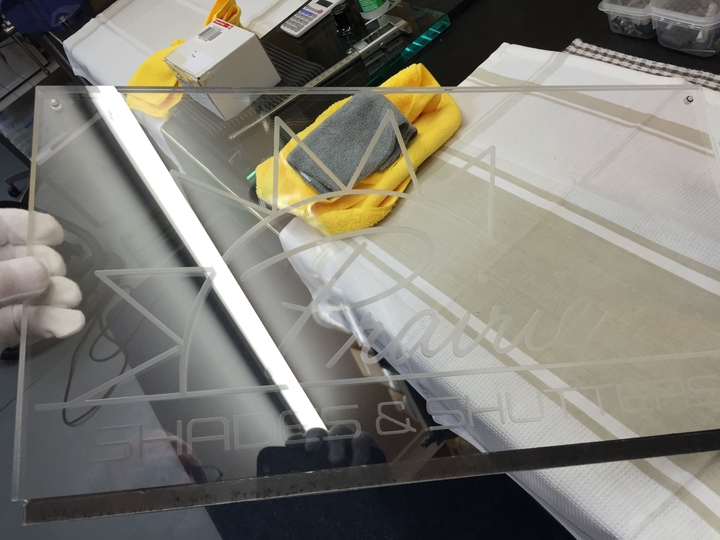

Routing the Outside Profile Cearful Cleaning & Antistatic treatment Using compressed air to blow off any dust or particles Placing the 0.4mm Black Card separation piece Assembling the two layers using clear nylon M3 screws at the top

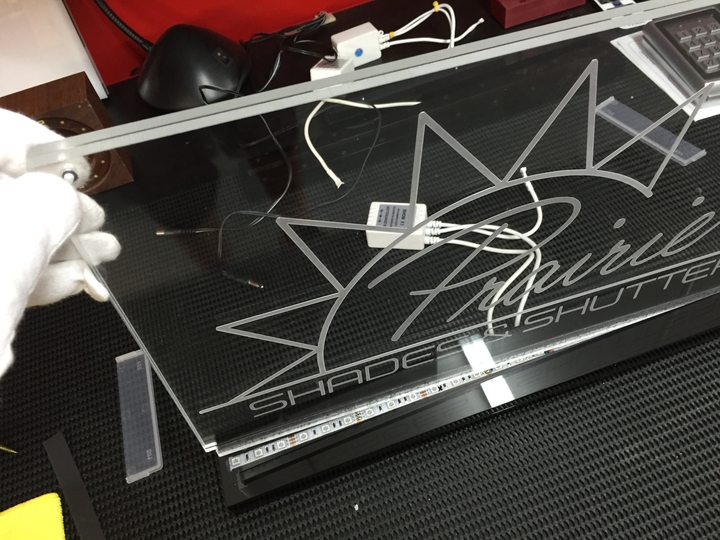

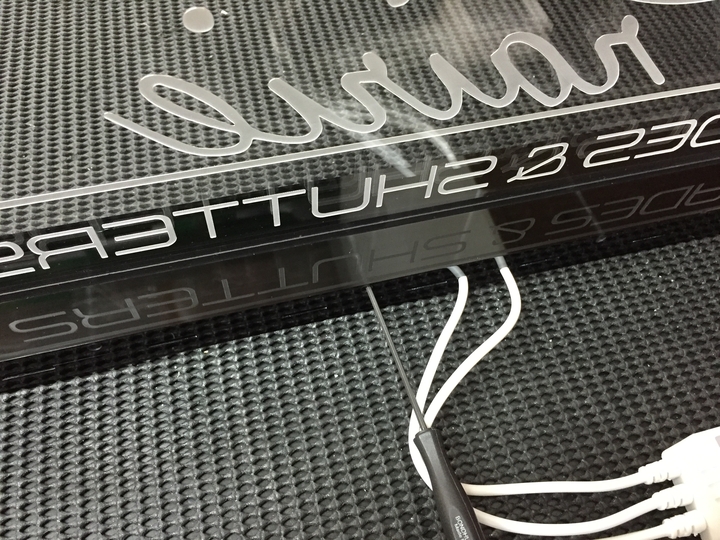

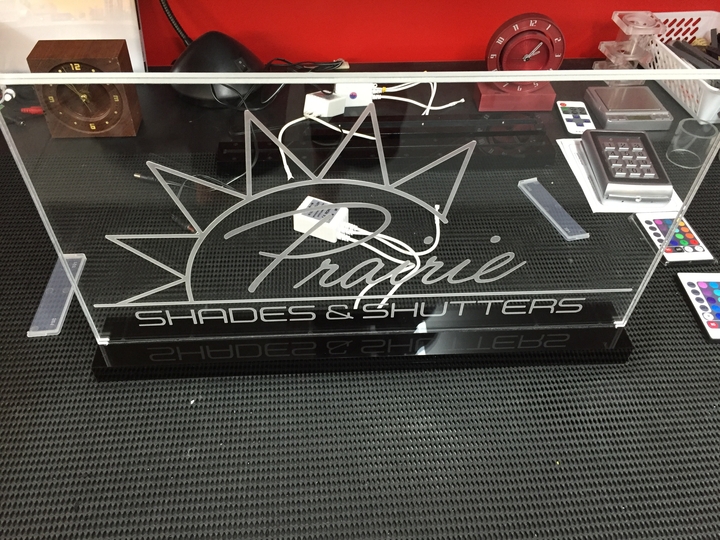

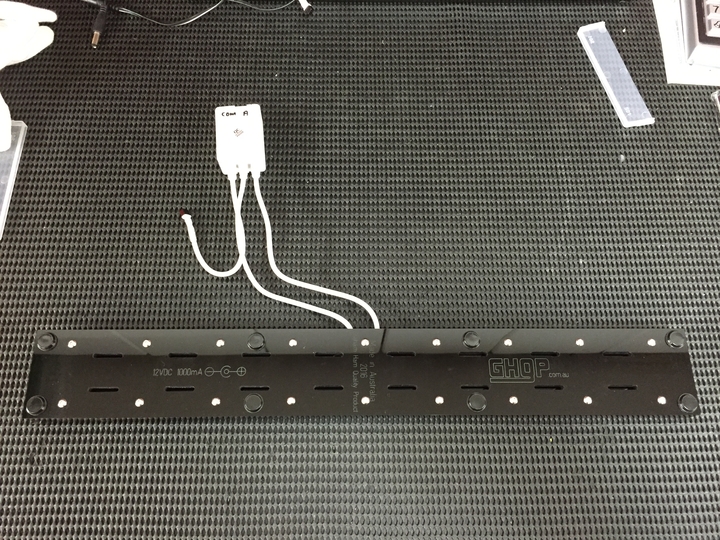

Ready for installing into the base The base pre assembled and wired (Underside View) Sliding the assembled sheets into the base top slot Almost ready for powring up Tightening the rear SS M4 Grub Screws

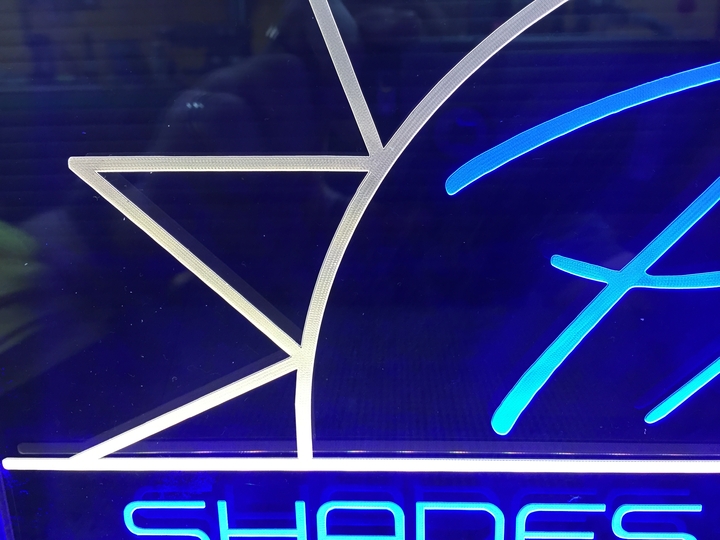

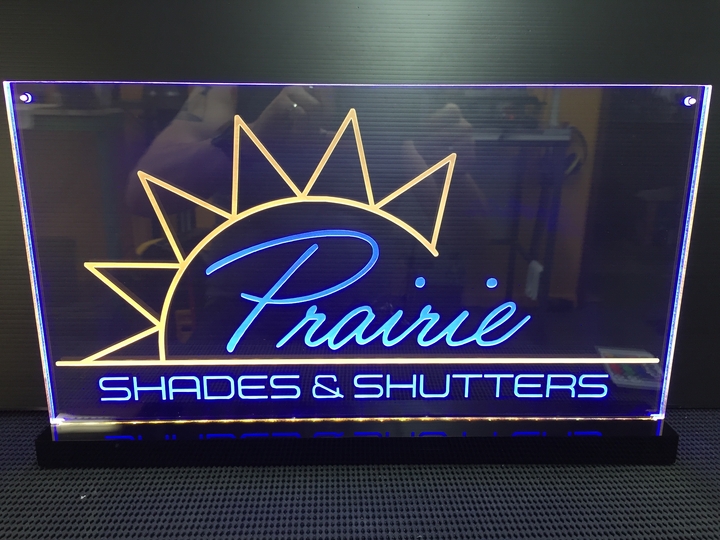

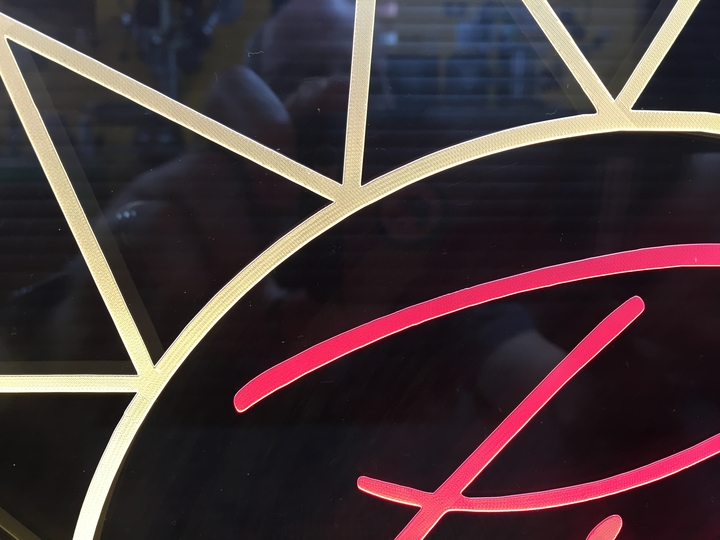

Power ON and first test Using the IR Remote to cycle through some colours The front Yellow Sun colour is fixed The Back text colour is fully programable via the IR Remote All finished and ready to go :)
This is my latest Two Layer Edge Lit LED Logo Sign project. I was asked to make this one by a company in the US Prairie Shades and Shutters for use on their display booth at trade shows. It was the largest I have made to date and stretched my CNC Router almost to its limits. I had to design a new wider base to support the larger heavier sign aria. Also I modified an IR controller to get the specific lighting requested by the customer. By incorporating my special engraving technique the he final result was stunning. The customer was exceedingly pleased with the final result as expressed in an email soon after he received the Logo Light and powered it up. His email comment was as follows:
"WOW! Wow! Wow!
This sign is fabulous! The colors are so brilliant and makes you stop and take notice. The quality of the lettering is more than I could have expected. I really like the 3D effect. I appreciate the quality of your work! I am so happy with the finished product!"

I will be uploading a second video in a day or so that shows some of the images and video I took during the making of it.

Note! I don't as a rule make these for sale but in some situations like this one I made an exception. You can contact me via my website.
PROJECT INDEX
Please note that all the information and downloads provided on this page are intended for personal use only.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
Page Created March 2016
YouTube Video -
These videos were edited using still images and video that I took throughout the development, machining and assembly process.
Click the image to play the YouTube Video
Click the YouTube Logo to go to my Channel
Click on the images to see a larger view with comments
YouTube Video -
Videos on my YouTube Channel, the first showing the final working light and the second, how it was made!
